Welding tester for tubes and bags – CrushTube ACRN
CrushTube

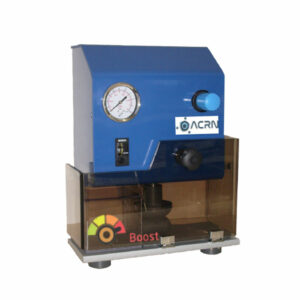

The PouchTube Tester can be used to check the performance of tubes, pouches and other refills directly on the production line or in the laboratory. It can be used to replace ATS tube weld testers.
During the heatsealing process, defects in the weld can appear dur to the temperature of the electrodes and the presence of impurities.
The implementation of a crush test allows to verify the integrity of the weld of your sample, and thus the absence of leakage or microleakage.
This test is essential to ensure that your sample is properly welded.
Description

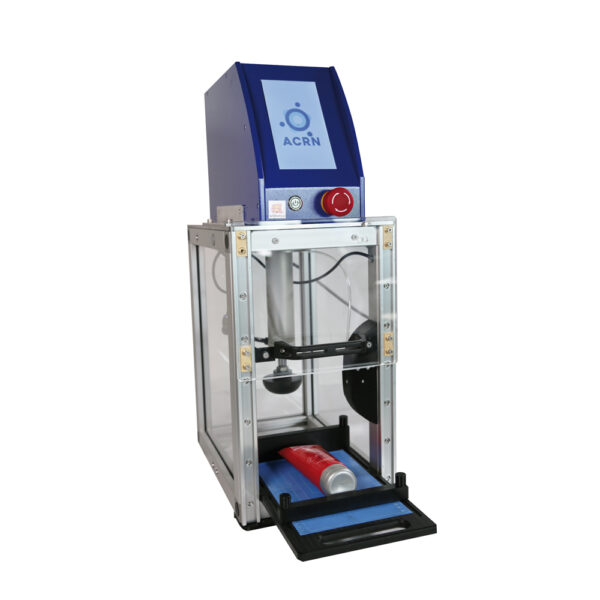

PouchTube – Welding tester for tubes and pouches
The Tube Crusher, a weld tester for tubes and pouches, is an essential device for packaging quality control. It tests the integrity of welds on tubes, pouches and bags. Suitable for production and laboratory environments, the Tube Crusher guarantees reliable, repeatable results. This tester quickly checks the quality of welds to avoid heat-sealing defects and the risk of leakage.
Key benefits :
- Fast, reliable testing : tests are simple, robust and repeatable. This enables rapid verification of the weld.
- Versatility : Suitable for a wide range of tests, including crush resistance, stress tests and leakage tests.
- Suitable for production : Ergonomically designed, the Tube Crusher integrates easily into production environments.
- Full traceability : Export of results via USB or TCPIP, with compatibility with SPC systems (Freeweigh, SAP).
- Maintenance-free : The Tube Crusher is durable and requires no regular maintenance, which reduces costs.
- Modularity : Pressers are interchangeable according to the packs tested, ensuring maximum flexibility.
- Security and compliance : user access management and data inviolability via audit trail and automatic backup.
Extensive testing possibilities :
The Tube Crusher, a weld tester for tubes and bags, offers a wide range of tests to meet specific needs:
- Crush test : Verification of weld integrity under pressure.
- Cyclic test : Simulation of opening and closing cycles to test packaging durability.
- Manual test/internal pressure : Precise measurement of the internal pressure of samples.
- Customized testing : Customized testing to meet customer requirements.
- Staircase testing : Carry out development tests to determine product compliance values.
The Tube Crusher is supplied with :
- A LNE/COFRAC calibration certificate, guaranteeing the conformity of the tests performed.
- A standard presser for tube testing.
- An interior layout with adjustable stop for precise sample positioning.
Tube Crusher applications :
The Tube Crusher, a weld tester for tubes and pouches, is used in many industrial sectors to guarantee weld quality, prevent leaks and ensure packaging integrity. This versatile tester ensures product conformity and safety.
Technical informations
| Energy | Compressed air network 0 to 6 bar |
|---|---|
| Dimensions | L240xP440xH650 mm |
| Maximum sample size | L180xl300xH80 mm |
| Weight | 15 kg |
| Power supply | 110 Vdc 230 Vdc, 50hz/60hz |
| Compressed air supply | From 0 Bars up to 8 Bars possible |
| Display | 7" capacitive touch |
| Max. sampling frequency | 1500 hz |
| Air filter | 5 µm |
| IP Classification | IP 54 |
| Operating temperature | Between 0° and 40°C |
| Noise level | < 25 dB |
| Power consumption | < 0.1 kW |
| Connection to the compressed air network | ISO B6 Male, Ø8mm external quick coupling |
| System connection | 1xUSB / 1x ETHERNET |
| Communication | Printer, RS232, TCP-IP, CSV export, XML USB key, open communication protocol |
| Data collection | Illimited |
| Number of programs | Illimited |
| Number of test | Illimited |
| Test duration | Illimited |
| Traceability and Data Integrity | User rights |
| Guarantee | 2 years |
| Certification | CE |
