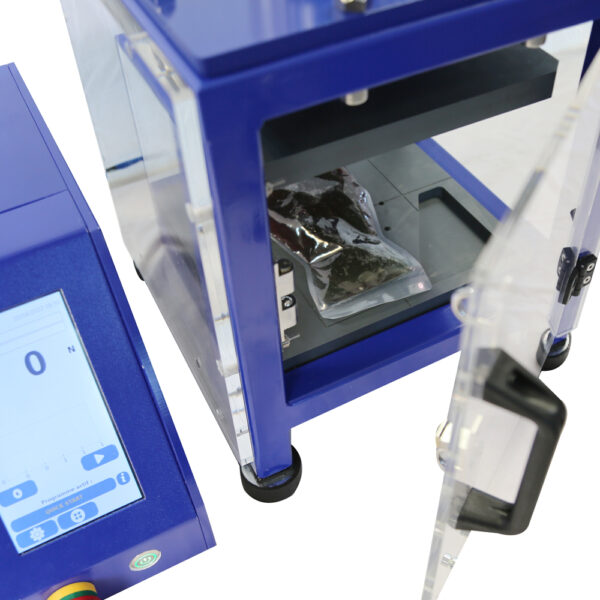

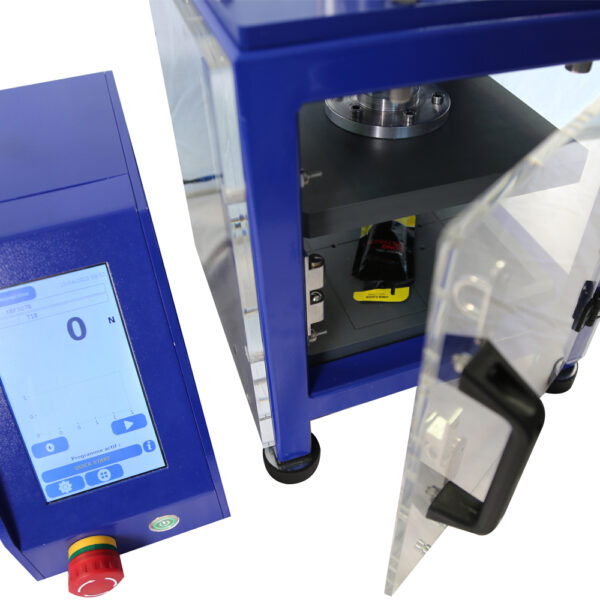

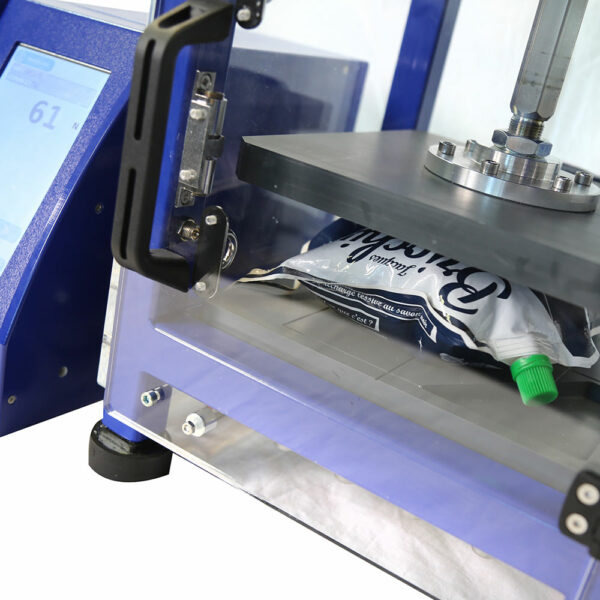

Pouch Burst Tester CompressPack
Test your packaging seals in a few seconds
The Pouch Burst Tester CompressPack is used to check the weld strength of plastic or metal packaging such as doypacks, doypack refills, pouches, bags and tubes directly on the production line or in the laboratory.

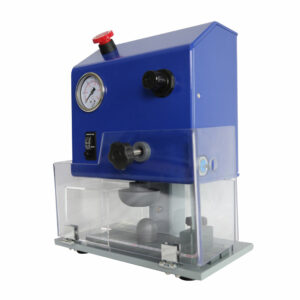

It can be used in addition to the ATS tube seal tester.
Why test your weld ? During the heat sealing process, defects in the weld can appear due to the temperature of the electrodes and the presence of impurities.
The implementation of a crush test allows to check the integrity of the weld of your sample, and thus the absence of leakage or microleakage. This test is essential to validate the good welding of your sample.
- UFast delivery
- UIntegrated ACRN After-Sales Service
- UCOFRAC
- UMade in France
- UTechnical Support
The Product
Description
Specifications
Technical specifications
| Énergie | Compressed air resolution 0 to 6 bar |
|---|---|
| Dimension boitier de commande | W160 x D350 x H240 mm |
| Dimension chassis avec vérin | W346 x D460 mm (W)/ |
| Dimensions utiles de test | W340 x D270 mm (L) / W230 x D132 mm (S) |
| Alimentation électrique | 110Vdc 230Vdc, 50 hz/60hz |
| Alimentation air comprimé | Between 0 to 8 Bars |
| Ecran | 7" capacitive touch |
| Précision | 1 Newton |
| Fréquence d'échantillonnage max | 1500 hz |
| Filtre à air | 5 μm |
| Classification IP | IP54 |
| Température d'utilisation | Between 0° and 40°C |
| Niveau sonore | < 25 dB |
| Consommation électrique | <0,1kW |
| Consommation air comprimé | GV15 : 100NL/min |
| Connexion au réseau air comprimé | ISO B6 Male and ⌀8mm external quick coupling |
| Communication | Printer, RS232, TCP-IP, Exports CSV, XML, USB, open communication protocol |
