Leak test
Crush
Tube
Accurately test the mechanical strength of your welds. Made in France, COFRAC-certified.
- COFRAC
- Made in France
- Dedicated After sale
Durability & Water Resistance
Our tube crushers ensure accurate and repeatable testing of the mechanical strength of your welds, meeting the most stringent requirements.
|
Maximum force 1 000 N |
Air pressure 0–8 bars |
|
Time delay 0–30 s |
Connectivity RS232 / USB |
- UPharmaceutical
- UCosmetics
- UAgri-food
- UMedical
Our product line
Our tube crusher models

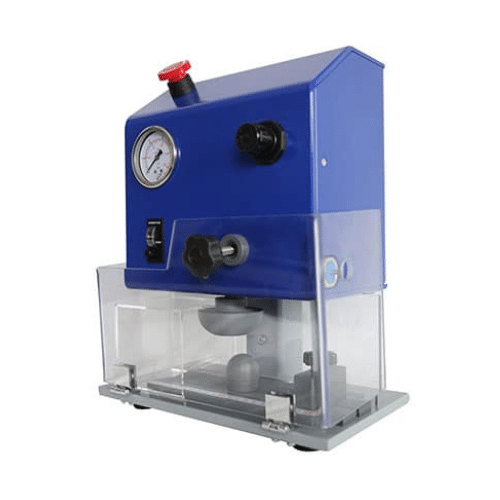

Pneumatic & durable
ATS
Simple and cost-effective, designed for production environments. The choice of manufacturers for testing the mechanical strength of tube and pouch welds.
- E50–750 N (1 000 N to 8 bars)
- EDelay 0–30 s
- EConnectivity RS232
- ETubes, pouches, bags
Multiple choice
ATS 3 Heads
The ideal solution for simultaneously testing multiple points on an assembly with absolute precision. Time savings and shorter production cycles.
- ESimultaneous testing of up to 3 samples
- EIndividual adjustment via pressure gauge
- EDelay 0–30 s
- EConnectivity RS232

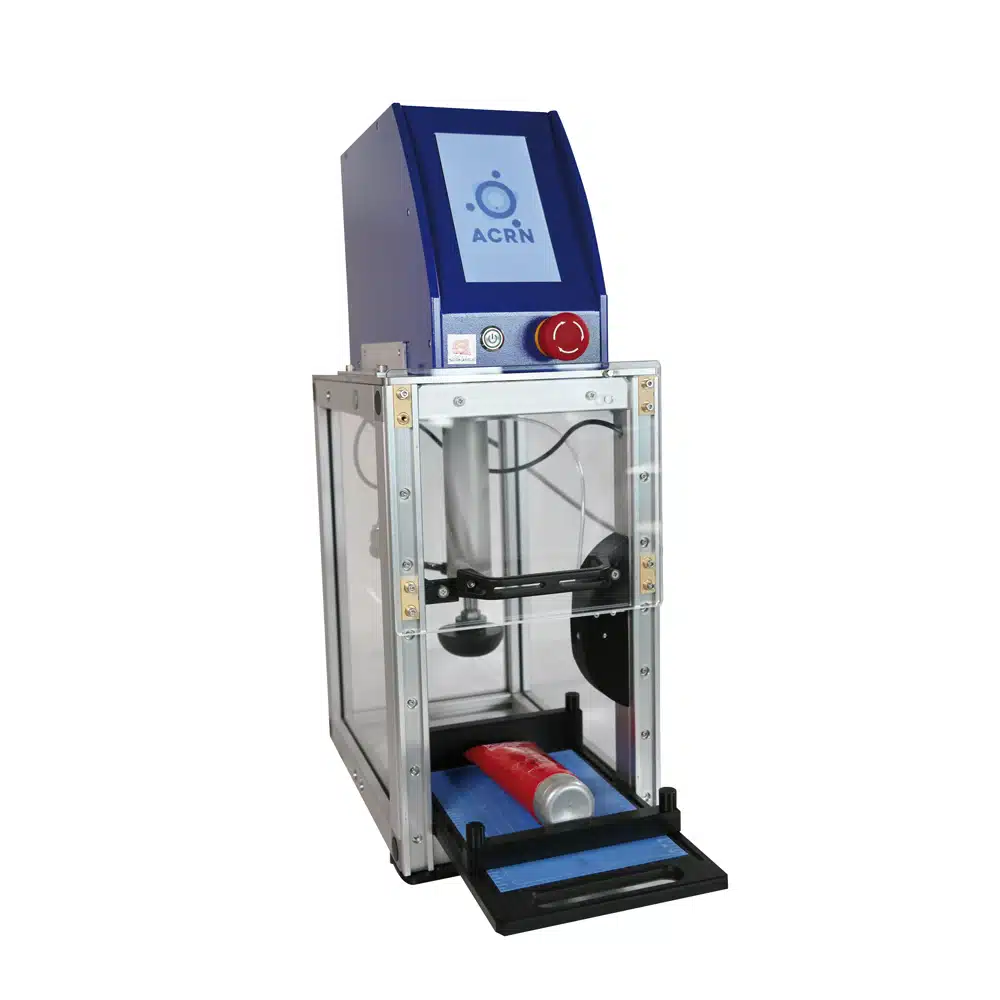

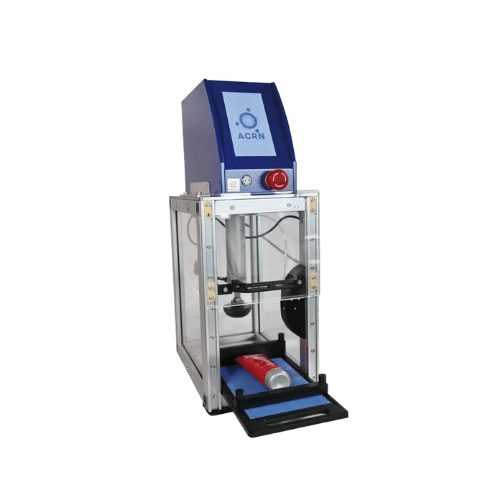

Advanced Digital
PouchTube
Digital multi-package tester with a 7-inch touchscreen. Full traceability, cyclic testing, and advanced connectivity for the most demanding industries.
- EUp to 750 N (1,000 N at 8 bar)
- EIntuitive 7-inch touchscreen
- EUSB, Ethernet, Export CSV/XML
- ECFR 21 Part 11 Traceability
Comparison
Comparative table ACRN tube crusher
| Criteria | ATS | ATS 3 Heads | Pouch Tube ★ |
|---|---|---|---|
| Pressure force | 50–750 N (1 000 à 8 bars) | 50–750 N individual adjustment | Up to750 N (1 000 à 8 bars) |
| Air supply | 0–6 bars | 0–6 bars | 0–6 bars |
| Delay | 0–30 s | 0–30 s | Unlimited duration |
| Reading & Interface | Pressure gauge | Pressure gauges ind. | 7-inch touchscreen |
| Connectivity | RS232 | RS232 | USB, Ethernet, CSV/XML |
| Traceability | — | — | CFR 21 Part 11 |
| Multi-sample | — | 3 simultaneous | Yes |
| Autodiagnostic | — | — | Yes |
| Applications | Tubes, pouches, bags | Tubes, pouches, bags | Tubes, pouches, bags |
| Abstract | Single tire | Multitest 3 samples | Advanced Digital Tester |

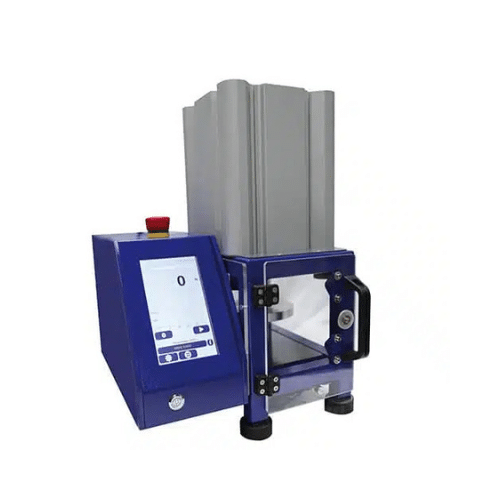

The perfect complement
Would you like to try out some doypacks?
The Pouch Burst Tester CompressPack is used to check the weld strength of plastic or metal packaging such as doypacks, doypack refills, pouches, bags and tubes directly on the production line or in the laboratory.
It can be used in addition to the ATS tube weld tester.
COMPRESSPACK — POUCH AND DOYPACK
Options & services
Accessories for our tube crushers
Thermal printer
Instant printing of test results right at the production line. Simplified traceability and archiving — PouchTube-compatible.
Anti marking kit
Ensures that the outer packaging of the tested samples remains intact. Ideal for repeated testing of the same samples.
Calibration Kit
Measures the internal pressure of a tube when crushed by a tube crusher. An essential tool for calibrating and validating results.
Flat presser
A variety of sizes to fit your different bags and pouches. Suitable for flexible packaging of all sizes.
CFR 21 Part 11
Compliance with regulatory standards for the pharmaceutical industry. Audit management, electronic signatures, and full traceability.
On--site installation
Our technicians provide a full-service installation and commissioning of your equipment directly at your facility.
User training
Comprehensive training on equipment operation, configuration, basic maintenance, and best practices for operation.
Qualification
Calibration and qualification services (IQ, OQ, PQ) for your equipment to meet the regulatory requirements of your industry.
Applications & Industries
Welding Testers : Applications and Industries
Weld testing and mechanical strength testing are requirements common to many industrial sectors. Whether it’s ensuring the integrity of a cosmetic tube, the compliance of pharmaceutical packaging, or the safety of food packaging, our tube crushers meet the most stringent requirements.
Sector 01
Pharmaceutical industry
In the pharmaceutical industry, the integrity of welds is a critical regulatory requirement. A poorly sealed tube or bag exposes patients to the risk of contamination. Testing the mechanical strength of welds is required by Good Manufacturing Practices (GMP) and ISO 11607 standards for medical device packaging.
The cosmetics industry is one of the most demanding sectors when it comes to packaging quality. Cream tubes, lipsticks, toothpaste tubes, and cosmetic masks : Each seam must be able to withstand the stresses of transport, storage, and use. Even the slightest failure can lead to leaks, customer returns, or non-compliance. Our tube crushers ensure the repeatability and compliance of your weld inspections.
Sector 02
Cosmetic industry
Sector 03
Food industry
In the food industry, the integrity of seals directly affects food safety : a poorly sealed packet of seasoning, a sauce pouch, or a tube of concentrate can break the cold chain, cause oxidation, or compromise the best-by date. Our testers enable fast and reliable in-line quality control.
In the medical and medical device industry, the reliability of primary packaging is an absolute regulatory requirement. ISO 11607 requires that the integrity of the seals on sterile packaging be verified. The PouchTube, with its full traceability in accordance with CFR 21 Part 11, meets the most stringent quality certification requirements in this industry.
Sector 04
Medical industry
Frequently Asked Questions
FAQ — Everything You Need to Know About Tube Crushers
01
What is the Tube Crush, and what is it used for ?
The Tube Crush Tester is a device designed to test the integrity of seams on tubes, pouches, and bags. It is essential for packaging quality control, guaranteeing flawless welds and preventing leaks.
02
What are some other names for a tube crimper ?
There are several names for this type of device. Compressiomètre and Jacomex are the most common.
03
What types of packaging can be tested with these devices ?
They are suitable for testing a variety of packaging : plastic or metal-plastic tubes, pouches, bags, and doypacks.
04
In which industry are they used ?
PouchTube, ATS, and ATS 3 Head machines are primarily used in the pharmaceutical, cosmetics, food processing, and medical industries.
05
What kind of maintenance do these devices require ?
Tube crushers are designed to be durable and require minimal maintenance, thereby reducing costs and production downtime.
06
Are these devices suitable for use on a production line ?
Yes, their ergonomic, robust design makes them easy to integrate into production lines for real-time quality control.
07
What are the main features of the PouchTube Tester ?
The PouchTube Tester can be used to check the performance of tubes, pouches and other refills directly on the production line or in the laboratory. It offers fast, reliable, and repeatable testing, traceability in accordance with CFR Part 21 Part 11, and USB and Ethernet connectivity, as well as CSV/XML export capabilities.
08
Can multiple packages be tested at the same time using these devices ?
The ATS 3 Head Multi-Tube Tester allows for the simultaneous testing of up to three tubes, thereby increasing the efficiency of quality control.
