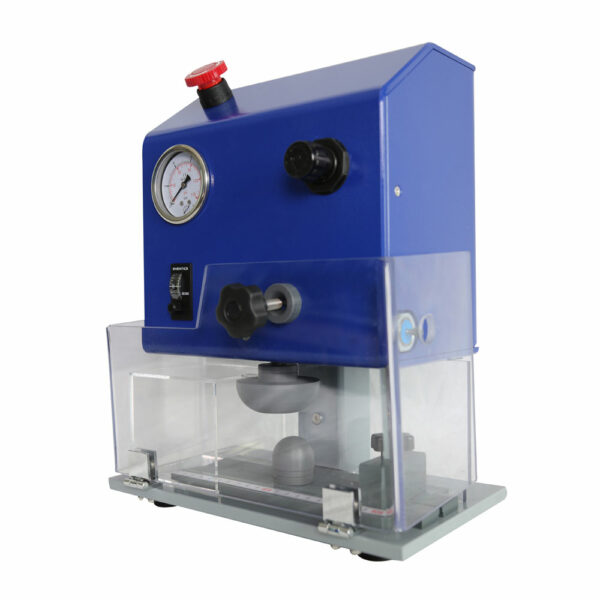

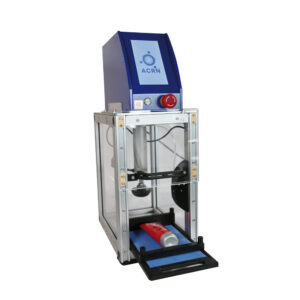

ATS pneumatic tube weld tester

The fast and reliable model

This machine is used to test heat-sealed plastic and metalloplastic tubes, doypacks, bags and other packaging, directly on the production line or laboratory.

Why do you have to test your weld ? During heat sealing, weld defects may appear due to electrode temperatures, material thicknesses, presence of impurities. The sources of faults in this process are numerous and the implementation of reliable control as close as possible to the production line is essential.

It is a quick, simple, affordable and completely reliable test deployed by a large number of packaging manufacturers.

ATS Data Sheet

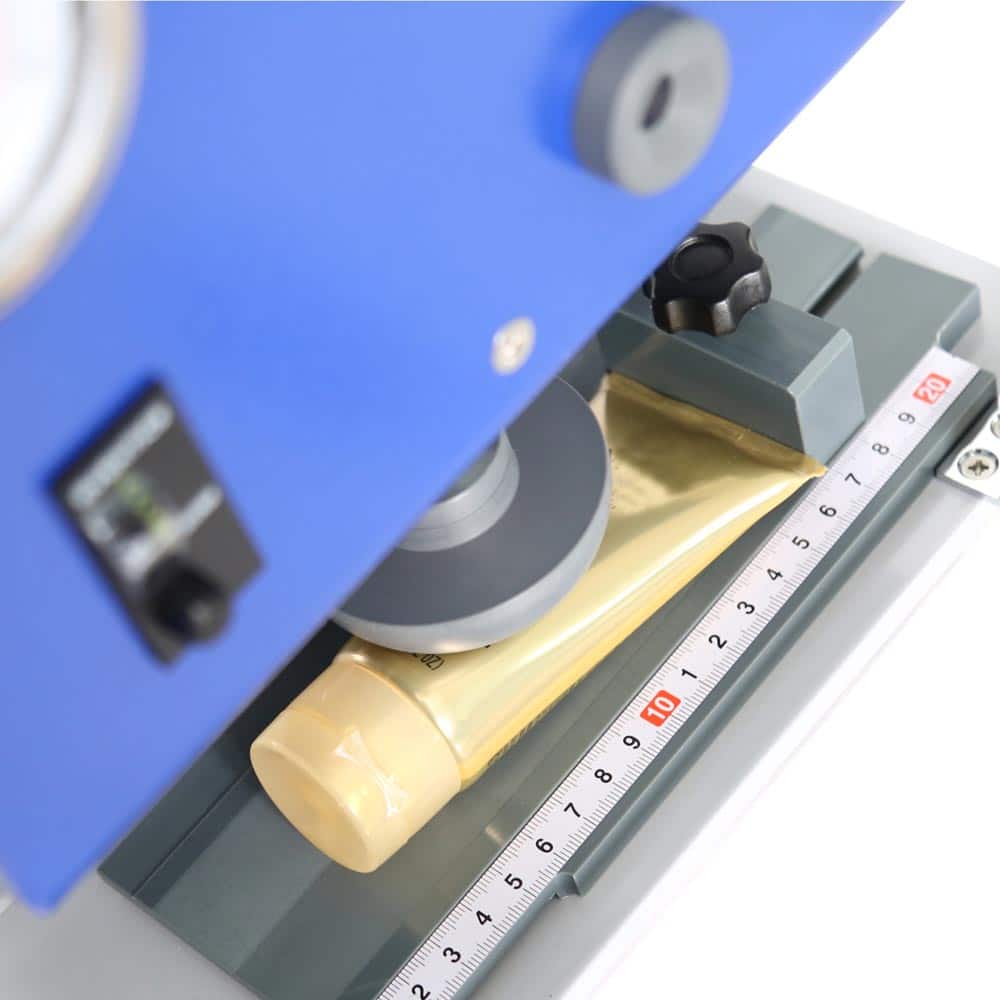

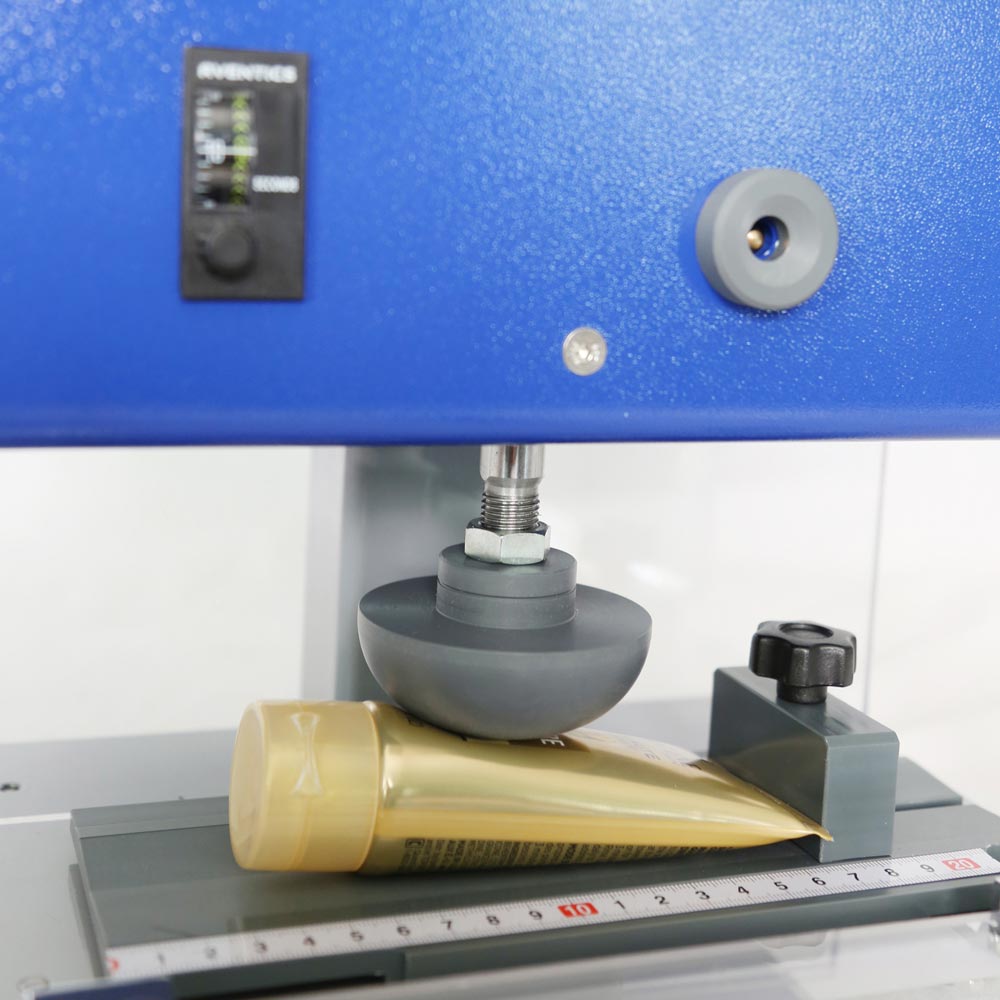

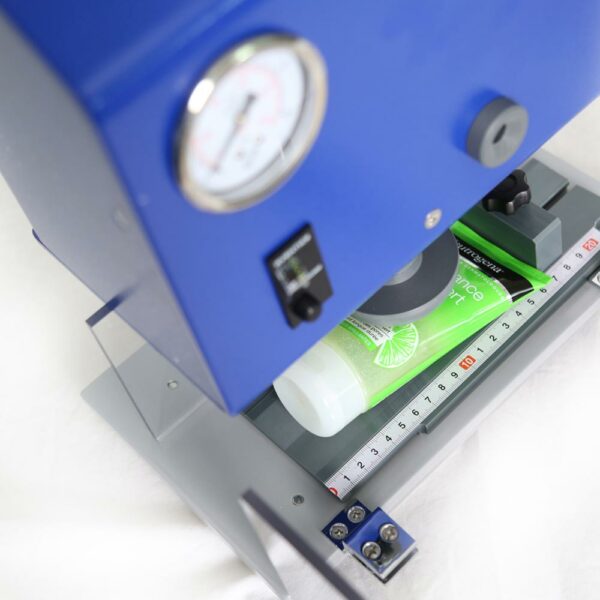

The ATS device is involved in a destructive frequency control which consists in raising the internal pressure of the tube, by external compression. It highlights the leaks and micro-leaks by applying the solder. The shapes of the presser, the pressure exerted and the points of support depend on the tubes and materials tested. ACRN, with 20 years of experience in the field, can guide you through these adjustments. Thanks in particular to its intuitive design and these various accessories, it allows the operator to perform a repeatble test and verifies the integrity of the weld by the absence of leaks under the effect of a crushing force applied to the sample to be tested. After setting the time delay and opening the ATS door, place the sample, close the door, the cycle starts automatically. As a reminder, it allows to two kinds of tests to be set up:

  • Micro-leak test which increases with pressurization and causes bursting
  • Burst test to determine the strength of welds.


  • Simple, fast, reliable and fully repeatable test
  • Fully pneumatic
  • Precise leak localization
  • Existing solutions for a large number of tubes and packaging
  • The sample holder has an adjustable stopper, allowing testing of a wide variety of sample shapes

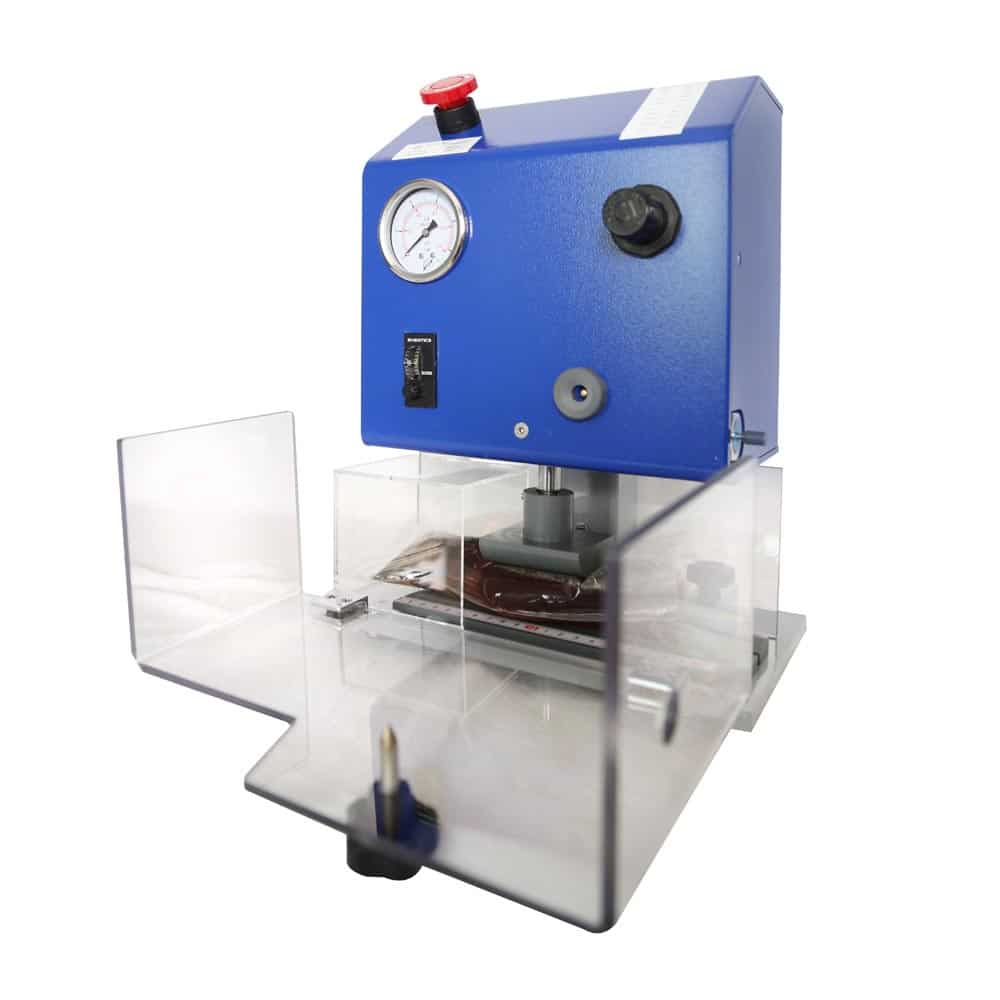

  • It allows you to perform your tests in complete safety thanks to the transparent polycarbonate safety cover preventing its opening during the test and the stard of a cycle once opened
  • Transparent receptacle cleanable in case



Technical informations

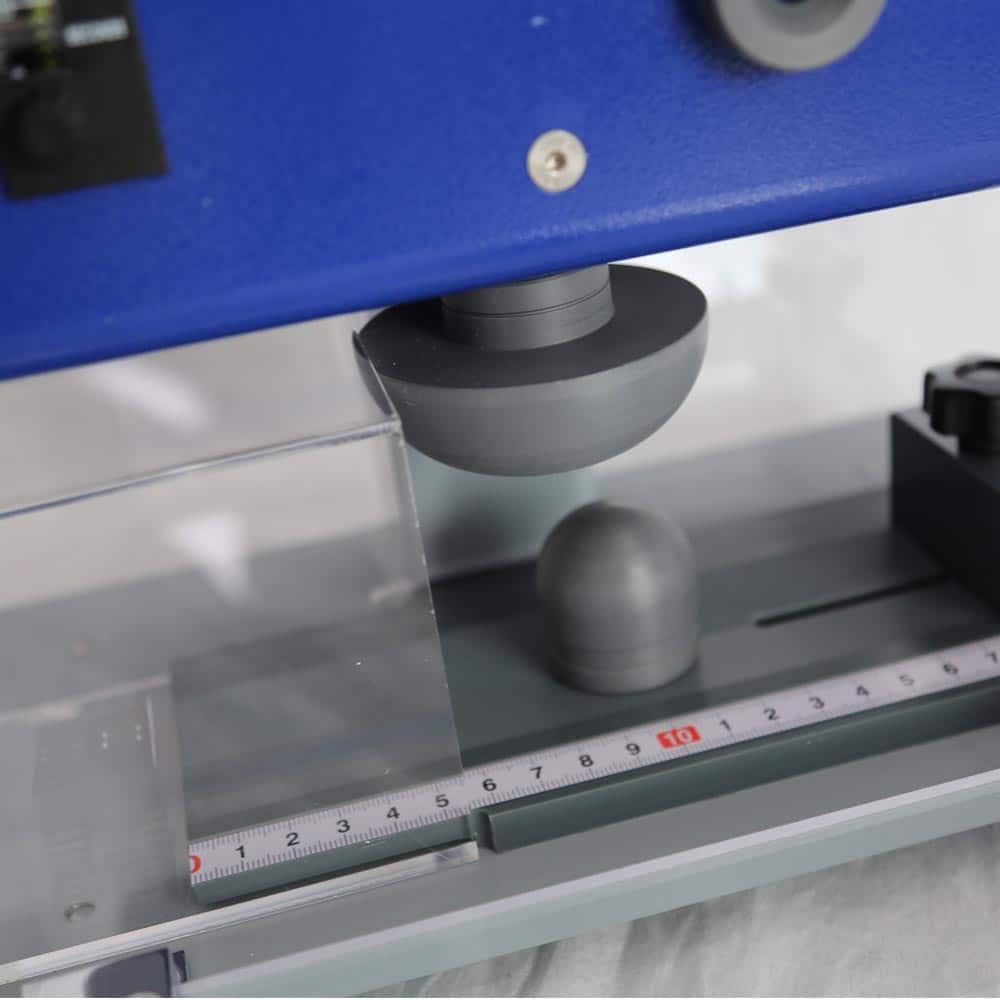

Crush tube

Crushes PVC tube on rigid metal frame, transparent unbreakable polycarbonate casing

Power supply

Compressed air from 0 to 10 bars

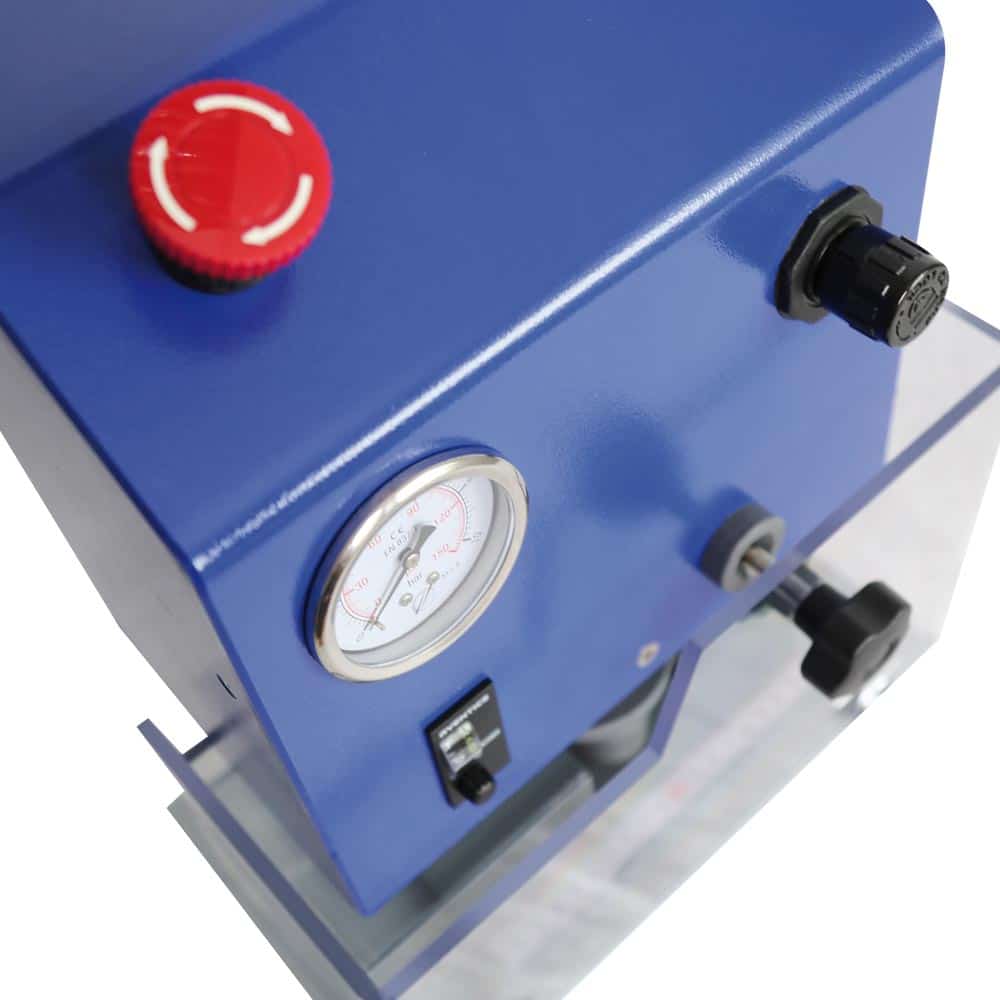

Graduated manomaters from 0 to 10 bars

Pressure force

From 50 to 1 000 N

Pressure adjustment

Adjustment dial pressure regulator


Adjustable from 0 to 30 secondes
(time delay +/- 1 second)

Power supply connection

Connection to the compressed air network by means of a Rislan tube with an external diameter of 8mm

Useful dimensions

L300xP200xH280 mm


10 kg
