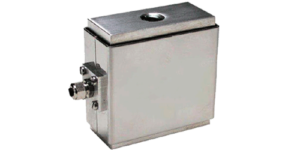

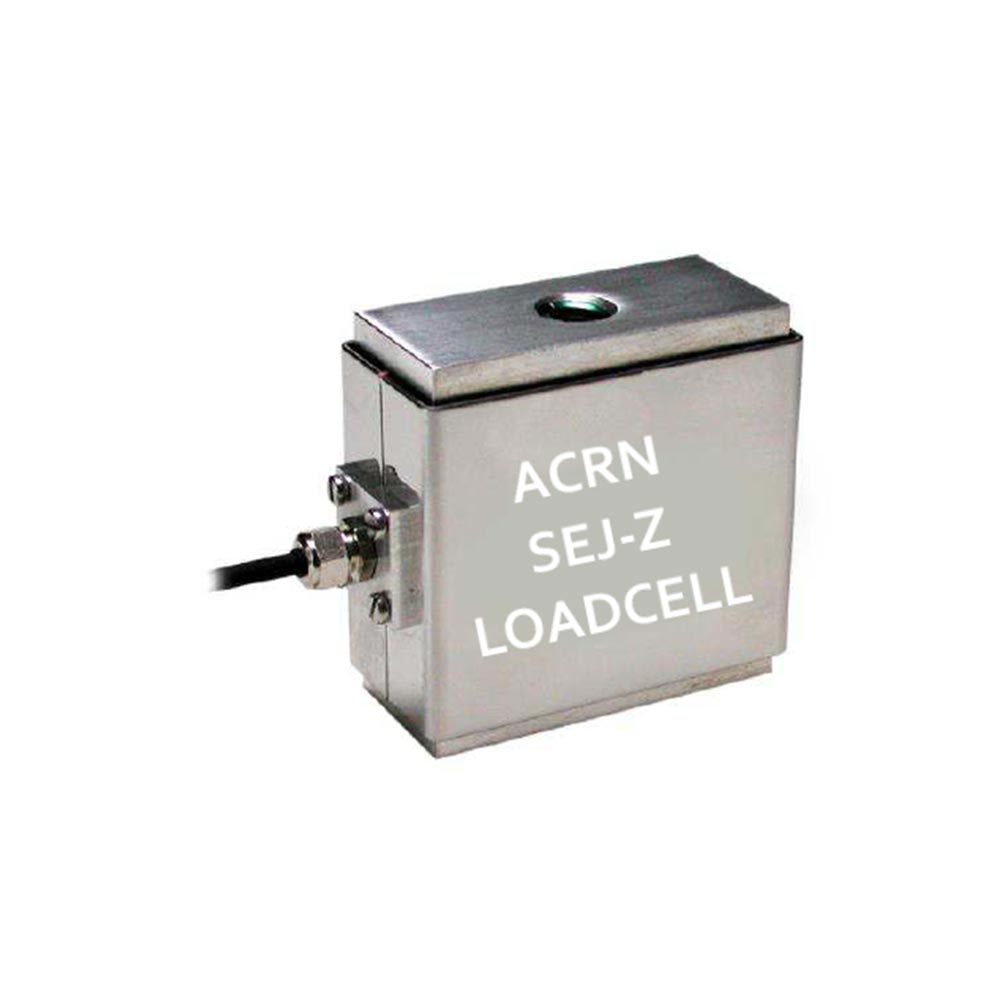

Force transducer with stop SEJ-Z

Loadcell with mechanical stop
Capacity from 10 N to 2000 N

High precision loadcells for tension & compression, Recommended for all high precision measurements, test benches, laboratory tests, process control equipments. These loadcells are protected against accidental overloads in tension and compression.

“S” load cells provide superior performance in compact packaging.

Connected with ACRN measurement consoles.

Data sheet SEJ-Z force transducer

Description

SEJ-Z Benefits

  • Tension & compression
  • Capacity from 10 N to 2000 N
  • Mechanical stop
  • IP 50 Protection class



Options

  • Rings and hooks
  • Rod ends
  • Load button
  • Longer length for cable

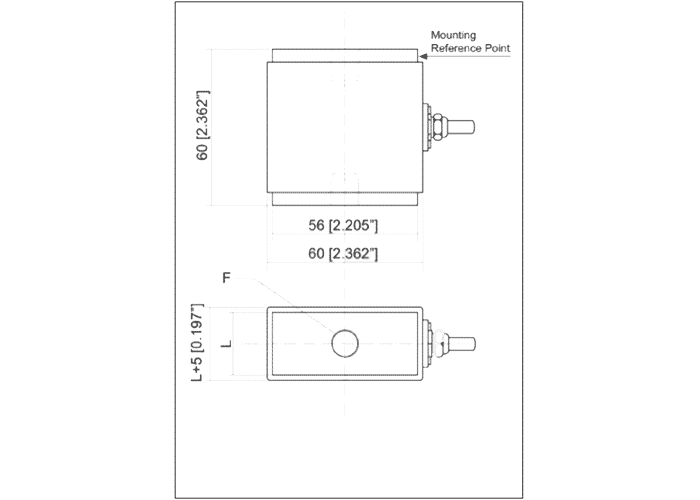

SEJ-Z-map

Technical informations

Output impedance

390 Ohms

Sensitivity

2mV/V

Construction

Body in aluminium and cover in stainless steel

Power supply

10 V (Max 15V)

Combined linearity & hysteresis

0,05% F.S (Full scale)

Offset

< ± 1 mV

Cable length

2m

CE Conformity

EN 61010-1, EN 50081-1, EN50082-1
