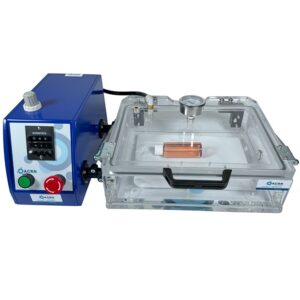

Vacuum Chamber Leak Tester

The elementary model

The CTS allows, in the same way as the CTE, to test the tightness of industrial packaging such as vials, bottles, flasks, etc.

Suitable for production environments, it features only a fully pneumatic system, capable of creating a vacuum, a compressed air control valve to limit incoming flow, and a needle pressure gauge.

A perforated Plexiglas plate, known as a presser, holds the product in the water.

The presence of a leak is detected by the appearance of bubbles in the water during the vacuum and is thus precisely located.

This model is available with a vacuum pump system for vacuuming.

CTS Data Sheet

Description

A Vacuum Chamber Leak Tester is a precision device designed to discover leaks in packaging and bins with the aid of using making use of vacuum strain interior a sealed chamber. Widely used withinside the pharmaceutical, cosmetic, and meals industries, this approach guarantees product integrity and enables meet strict fine manipulate standards. Whether you’re trying out blister packs, bottles, or bendy pouches, a vacuum chamber presents a dependable and non-damaging manner to discover packaging defects and assure hermetic sealing.

Benefits of the Vacuum chamber leak tester

  • Fully pneumatic
  • No maintenance
  • Intuitive and easy to use
  • Many accessories and possible arrangements according to the customer’s needs

Technical information

Box Transparent PMMA case on hinges
Range of measurements and accuracy From -0.1 to -0.85 Bar as standard. Accuracy + / -2 % Fully controlled by a microprocessor card
Useful dimensions It depends on the size of box.
Reading the depression Needle pressure gauge 50 mbar resolution
Units Bar, Psi
Power supply On compressed air 7 bar network connected to Rislanยฎ 8mm pipe. (not included) / Vacuum pumps (Max -920 mbars)
Depression adjustment Regulator with filter
Depression time Adjustable time device from 0 to 999 s
Principle of the test Visual
Temperature From 0 to 40ยฐC
Standards ASTM D4991, ASTM D5094, ASTM D4169, EN14401, DIN55528

Options with the Vacuum Chamber Leak Tester

Decrease in depression time (venturi more powerful)
Air drain valve for easy return to PA.
Safety gas springs
Manovacuometer with needle with better resolution
Vacuum pump replacing compressed air

Included

A calibration certificate LNE / COFRAC
