Capacity from 3 to 420 N.m

Trigger and preset spanner especially recommended for precise tightening of bolts in tight places and for tightening nuts in plumbing and air conditioning.

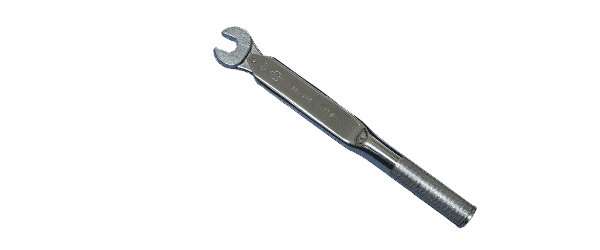

The SPK torque spanner has a palpable and audible release for the operator when the preset torque is reached.

Single function spanner, used for a single combination of fastener size and torque adjustment



Description

SPK Benefits

  • Automatic reset
  • The most suitable spanner for tightening several fasteners of the same size to the same torque on a production line.
  • Can be used effectively in small spaces

Included

Calibration certificate

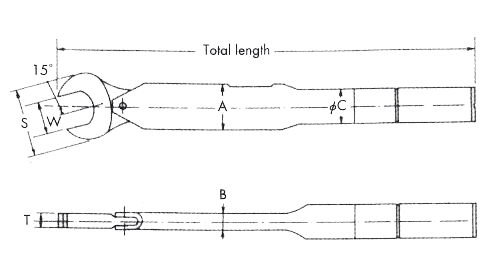

Model Capacity Fork opening (mm) Total length (mm)
N30SPK 0.5 – 3 N.m 5.5 / 6 / 7 / 8 9 / 10 152
N80SPK 1.5 – 8 N.m 5.5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 175
N190SPK 3.5 – 19 N.m 10 / 11 / 12 / 13 / 14 / 17 / 19 203 / 205 / 213
N380SPK 8 – 38 N.m 10 / 11 / 12 / 13 / 14 / 17 / 19 / 21 / 22 / 23 / 24 / 26 / 27 / 30 / 32 248/ 252 / 256 / 264
N670SPK 13 – 67 N.m 14 / 17 / 19 / 21 / 22 / 24 / 26 / 27 / 30 / 32 / 36 / 41 319 / 325 / 330 / 342
N1200SPK 24 – 120 N.m 17 / 19 / 22 / 24 / 26 / 27 / 29 / 30 / 32 / 36 / 41 390 / 397 / 403 / 410
N1600SPK 30 – 160 N.m 19 / 22 / 24 / 26 / 27 / 30 / 32 / 36 / 41 436 / 440 / 449 / 457
N2200SPK 45 – 220 N.m 19 / 22 / 24 / 27 / 30 / 32 / 36 / 41 573 / 579 / 585 / 597
N3100SPK 65 – 310 N.m 22 / 24 / 27 / 30 / 32 / 36 / 41 650 / 654 / 662
N4200SPK 90 – 420 N.m 24 / 27 / 30 / 32 / 36 / 41 / 46 833 / 838 / 843 / 847 / 860

Technical informations

Available capacities

3 to 420 N.m

Accuracy

± 3 % of each scale
