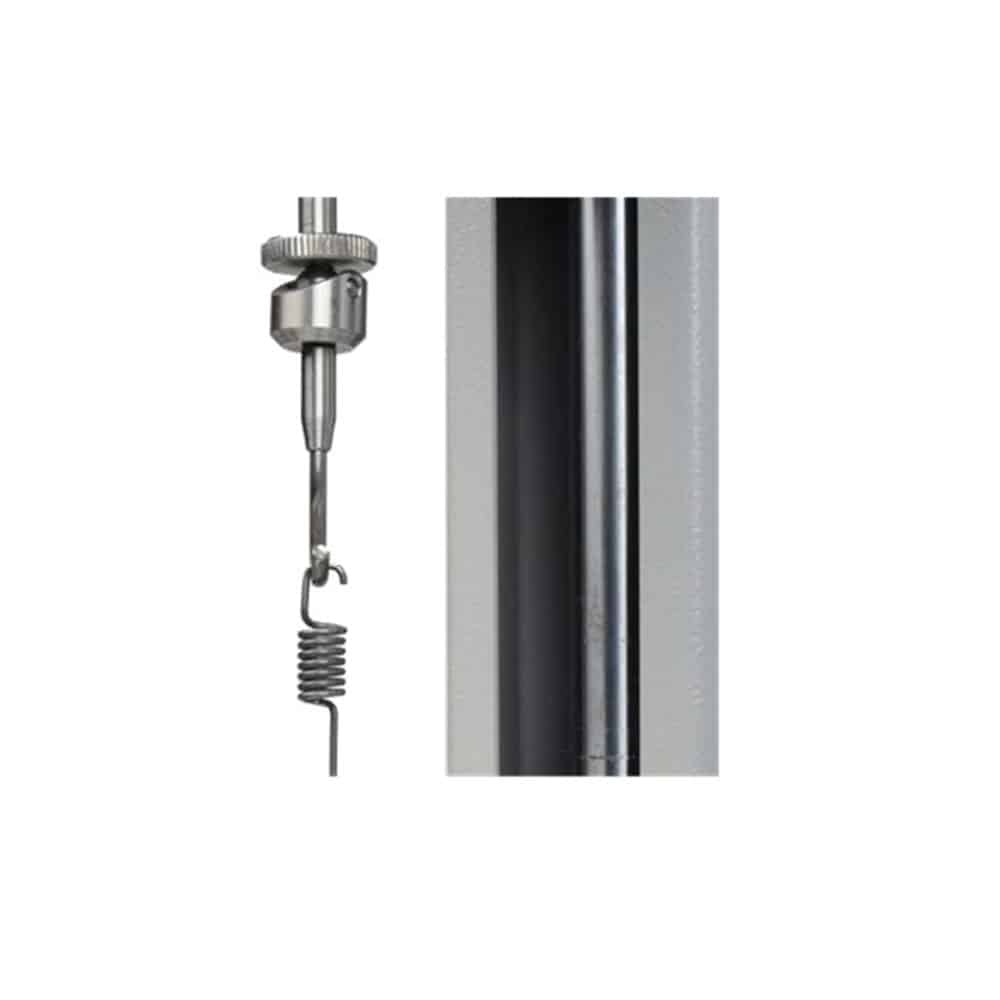

Swivel test hooks
Swivel hooks are specifically designed to align samples when testing tension springs. They are usually used in conjunction with fixed test hooks.
It is used for general purpose tensile testing of tension springs.
Description
Technical information
| Load capacity | 50 N, 11 lbf | 500 N, 110 lbf |
| Thread (T) | 10 – 32 UNF | 10 – 32 UNF |
| Max diameter (A) | 8 mm, 0.32″ | 14 mm, 0.55″ |
| Diameter (C) | 3 mm, 0.12″ | 6 mm, 0.24″ |
| Lenght | 50 mm, 1.97″ | 83mm, 3.28″ |
| Weight | 28 g, 0.05 lb | 50 g, 0.1 lb |
