Capacity from 0.01 to 10 N.m

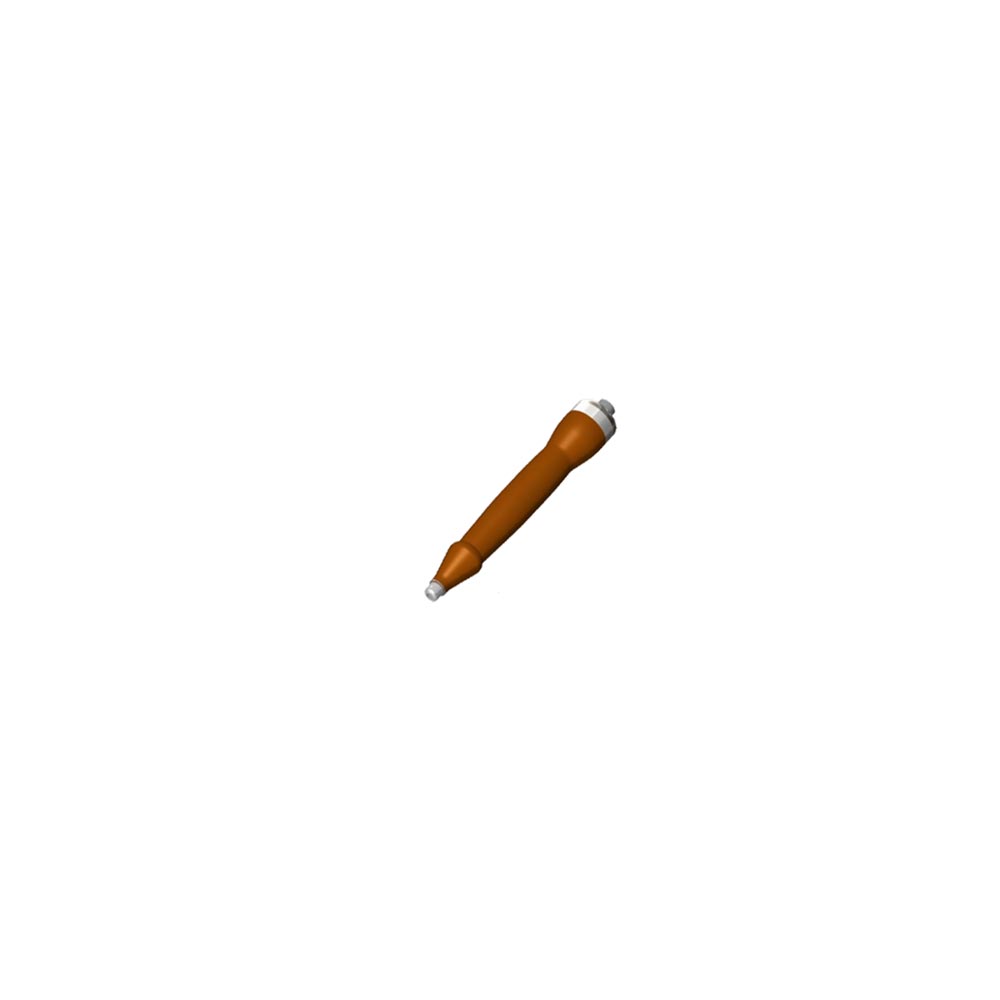

The TTH are a torque screwdriver range for static torque of low capacities ford handheld application.

It can be used independently. They are equipped with a ¼ square drive or a 3 mm H7 bore depending on the capacities, for the fifiting of adaptors.

They are the efficient option for precise and fast data reading. Coupled with ACRN’s XA-m console or an AFTI, they provide a robust and precise measurement solution.

Indeed, these consoles offer a fairly wide range of functions for reading, mode and storage of measurements.

TTH Data Sheet

Description

Advantages TTH

  • Portable

  • Modular by these different tips

  • Fast and precise

  • Connecting to an advanced playback console

Options

Reading console AFTI XA-m
Data processing software Vector Pro Lite DataXport



TTH Map

Model TTH 0.1 TTH 0.05 TTH 0.1 TTH 0.2 TTH 0.5 TTH 1
mN.m 10 50 100 200 500 1 000
gf.cm 100 500 1 000 2 000 5 000 10 000
ozf.inch 1 7 14 28 72 144

Technical informations

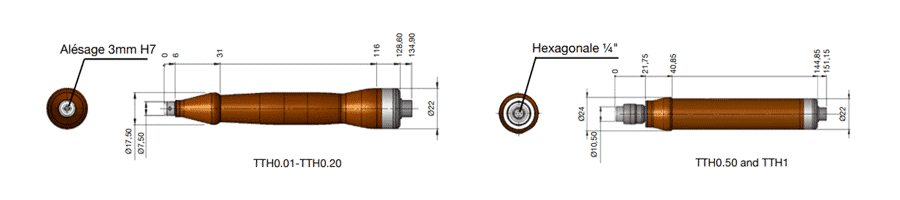

Dimensions(mm)Length x Diameter

L 135 x D 22 (TTH 0.01 -> TTH 0.2)
L 151 x D 22(TTH 0.5-> TTH 1)

Deliverable

Cable for connection to a reading console
Calibration certificate
