Digital Height Gauge AE1220

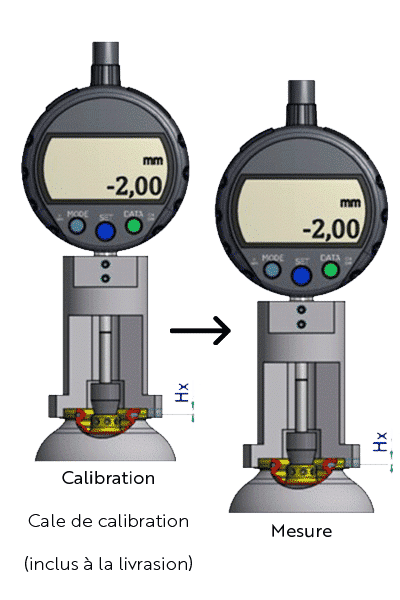

The AE1220 Digital Crimp Height Gauge enables precise control of the crimp height of cans and aerosols. Its digital display ensures fast, reliable reading, perfectly suited to the requirements of industrial quality control.
Description

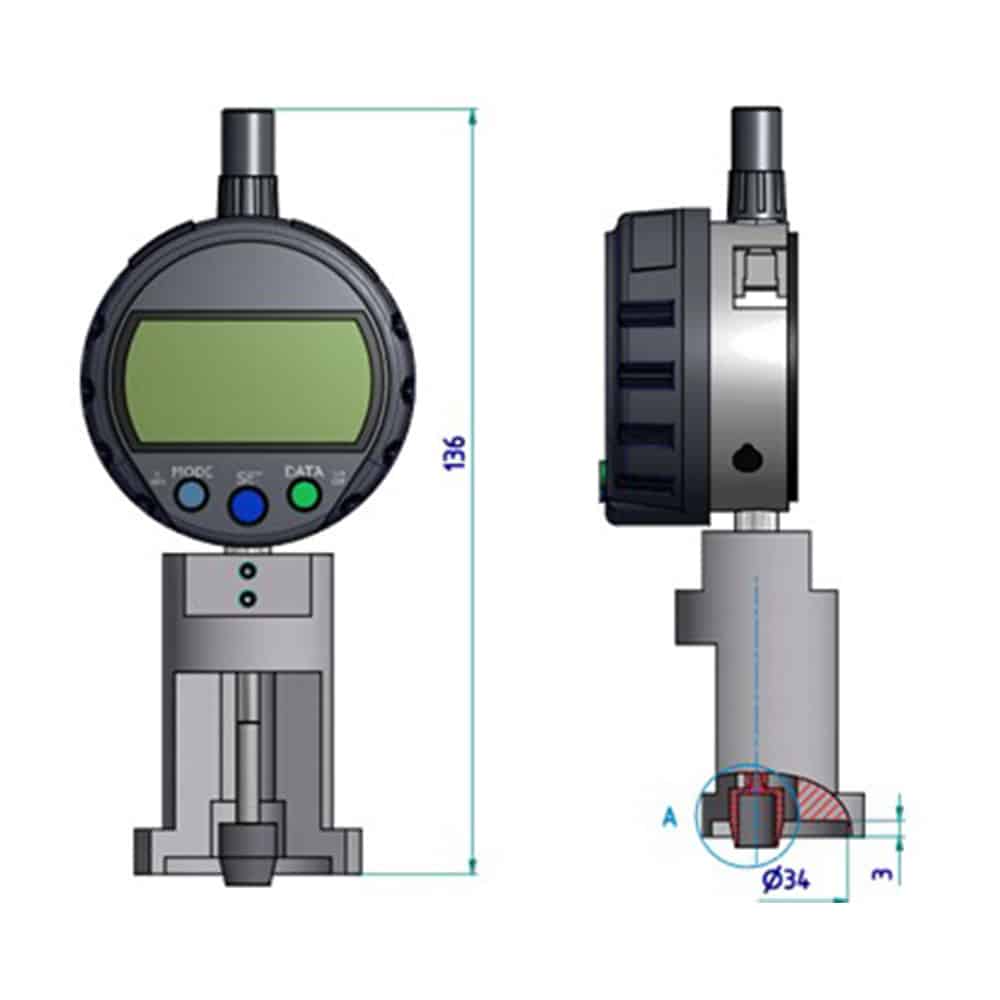

The Digital Height Gauge AE1220 is an ACRN measuring instrument used for Crimper height measurement applications.
Technical information
| Type | Plage (mm) | Resolution | Max permissible error | Measuring force / Weight | Repeteability error | Operating temperature |
| AEROSOL | + / 5 mm | 0.01 mm | 0.02 mm | 0.7 – 1.3 N / 330 g | 0.01 mm | 10°C – 30°C |
Technical specifications of the Digital Height Gauge AE1220: Type: AEROSOL; Plage (mm): + / 5 mm; Resolution: 0.01 mm; Max permissible error: 0.02 mm; Measuring force / Weight: 0.7 – 1.3 N / 330 g; Repeteability error: 0.01 mm; Operating temperature: 10°C – 30°C.
For any quote request or technical information about the Digital Height Gauge AE1220, contact the ACRN team using the form available on this page.
