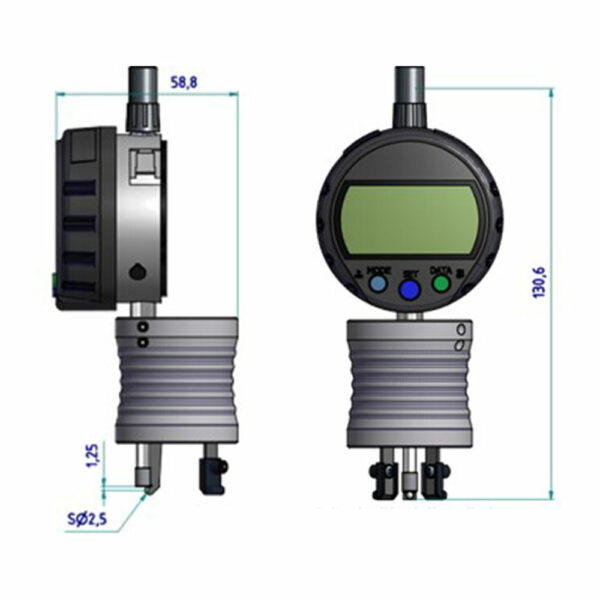

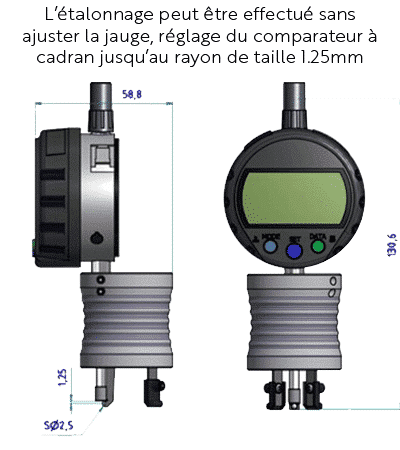

AE2105 Digital Stamping Height Gauge
Description
The AE2105 Digital Stamping Height Gauge is an ACRN measuring instrument used for Crimper height measurement applications.
Technical information
| Type | Range | Range indication | Resolution | Measuring force/weight | Max permissible error | Repeteability error | Operating temperature |
| AEROSOL | 4.6 – 5.4 mm | 1.25 mm – 10.3 mm | 0.01 mm | 0.7 – 1.3 N / 280 g | 0.02 mm | 0.02 mm | 10°C – 30°C |
Technical specifications of the AE2105 Digital Stamping Height Gauge: Type: AEROSOL; Range: 4.6 – 5.4 mm; Range indication: 1.25 mm – 10.3 mm; Resolution: 0.01 mm; Measuring force/weight: 0.7 – 1.3 N / 280 g; Max permissible error: 0.02 mm; Repeteability error: 0.02 mm; Operating temperature: 10°C – 30°C.
For any quote request or technical information about the AE2105 Digital Stamping Height Gauge, contact the ACRN team using the form available on this page.
