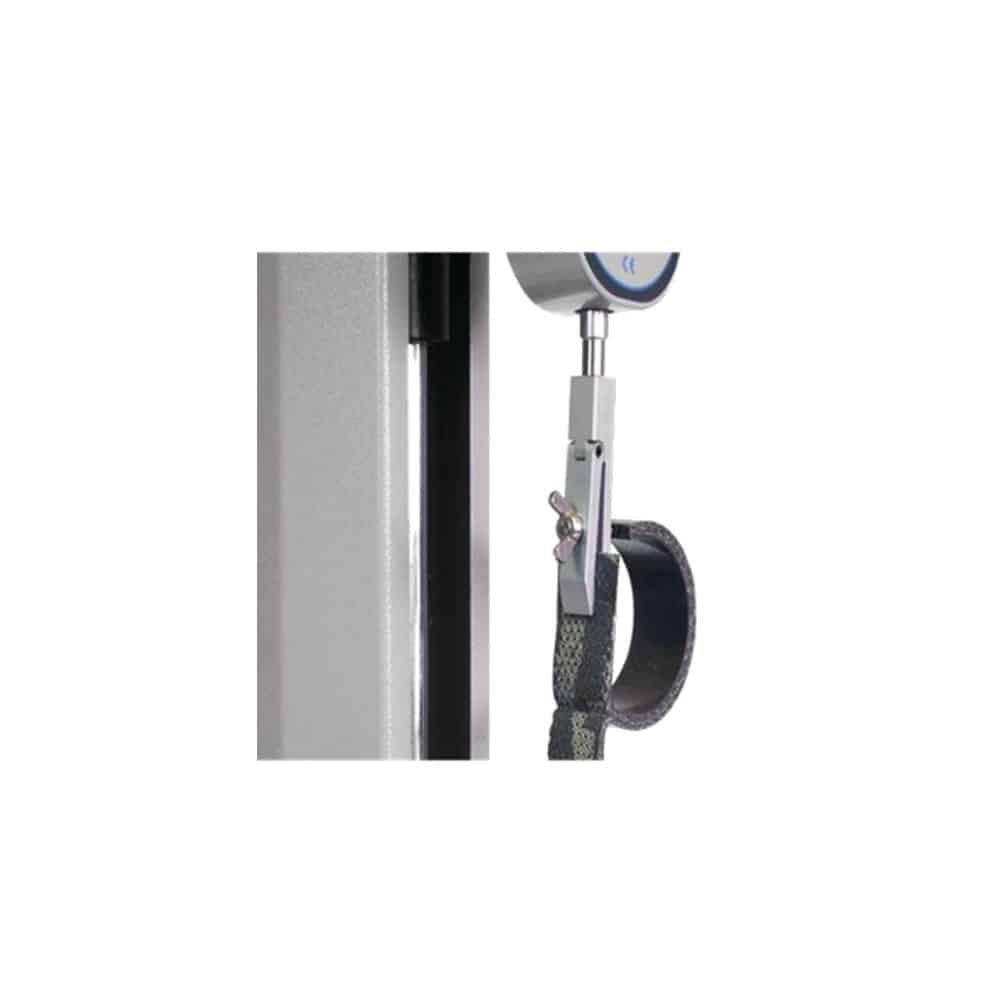

Small Pinch Grip
This clamp is the lightest clamp and uses clamping with a nut and a wing screw to tighten both sides.
These faces, provided with slight grooves, allow the gripping of the sample in complete safety, avoiding tearing.
It is used in particular for peeling tests with plastic film.
|Thread (T)||M6 10-32 UNF|
|Load capacity||200 N, 20 kgf, 44 lbf|
|Jaws capacity||9 mm|
|Jaws width||12 mm|
|Hauteur / Poids||95 mm / 70 g|
