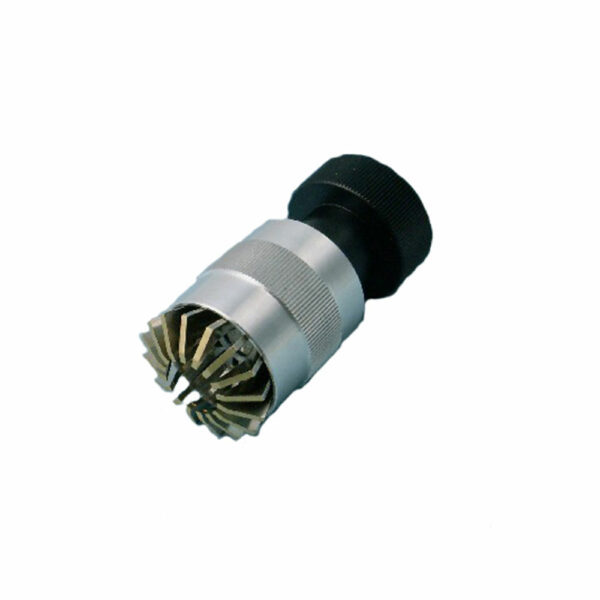

Multi-jaw pinch for complex gripping

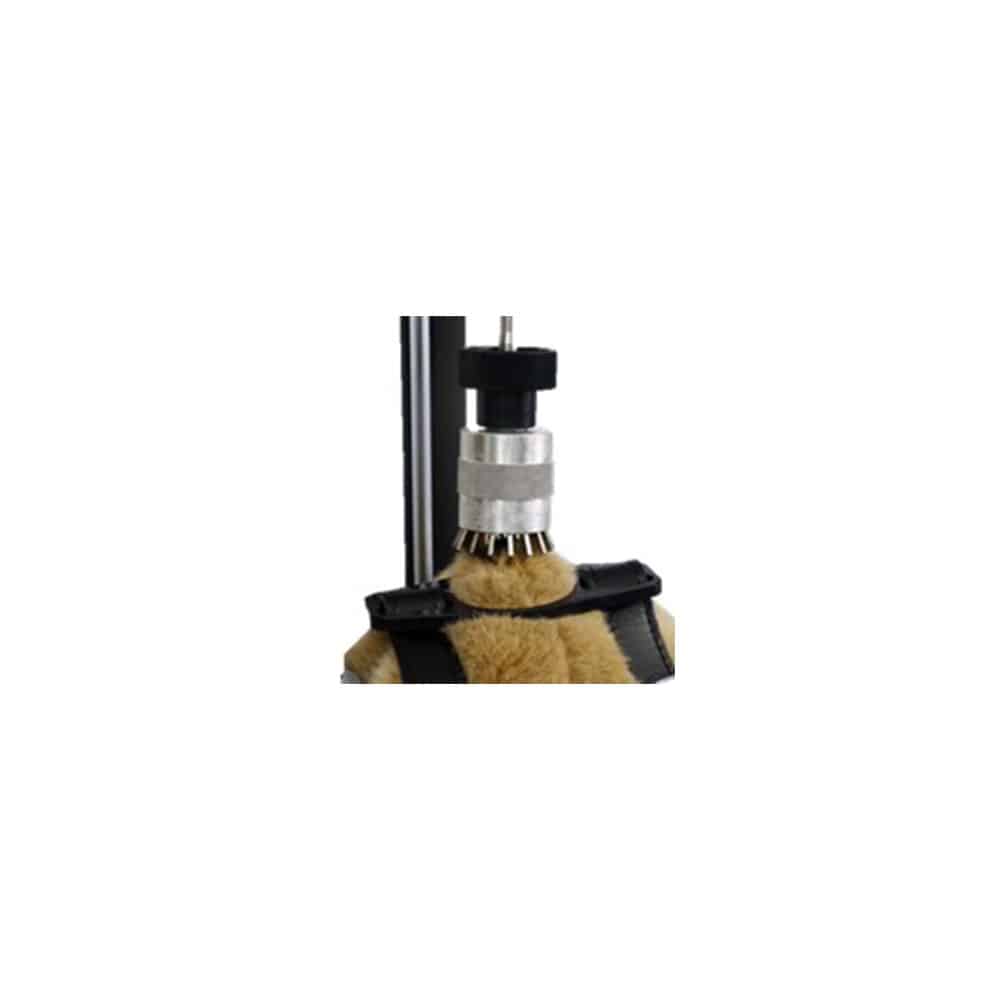

This pinch with muliple jaws is very pratical for gripping a good number of objects having physical characteristics or different materials. It allows you to optimally grasp irregulary shaped products. By turning the handle, the jaws can open and close to ensure a secure grip.

Used for tensile tests:

  • The ties
  • Small components
  • Textiles
  • Bottles caps

Torque accessories Data sheet

Description

Technical information

Load capacity 500 N / 50 kgf / 110 lbf
Thread M6 ou 10/32 UNF
Lenght 105 mm
Jaw diameter 10 mm – 45 mm
Handle diameter 40 mm
