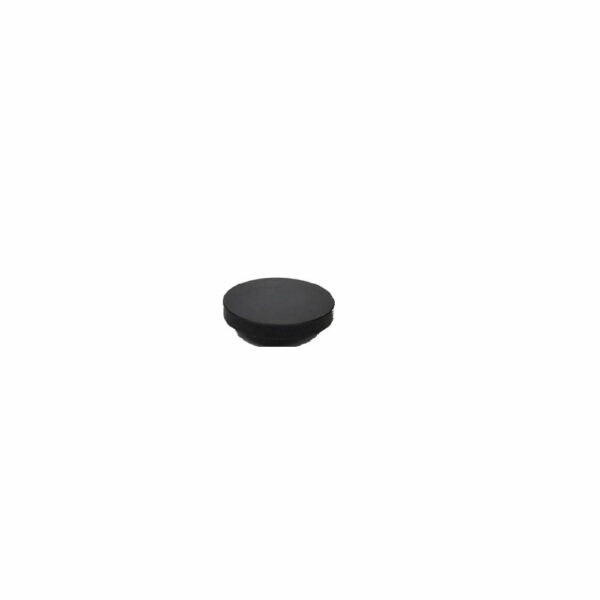

Hardened and ground compression plates
Hardened and ground compression plates have a smooth, scratch-proof surface ideal for compression testing on samples that could damage a standard compression plate, such as metal springs.
Description
Technical information
| Model | Load capacity | Thread (T) | Diam A | Height B |
| Model 1 | 5 kN | M6 | 50 mm | 13 mm |
| Model 2 | 5 kN | 10-32 UNF | 12 mm | 12 mm |
| Model 3 | 5 kN | 10-32 UNF | 19 mm | 12 mm |
| Model 4 | 5 kN | 5/16 UNC | 70 mm | 20 mm |
| Model 5 | 5 kN | 5/16 UNC | 100 mm | 20 mm |
| Model 6 | 5 kN | 5/16 UNC | 175 mm | 20 mm |
| Model 7 | 5 kN | 10-32 UNF | 50 mm | 13 mm |
