AFG Force Gauge
The advanced force gauge
The AFG is a multifunctional, ergonomic and affordable force gauge as a tensile/compressive force measurement sensor.
The AFG is the most versatile, fully featured digital instrument on the market.
With models from 2.5 to 2 500N, it is ideal for mounting to a test stand or use as a hand-held device. It is robust and accurate at 0.1% of full scale.
All its useful features will allow you to set up traction and compression controls adapted to your needs.
- UFast delivery
- UIntegrated ACRN After-Sales Service
- UCOFRAC
- UMade in France
- UTechnical Support
The Product
Description

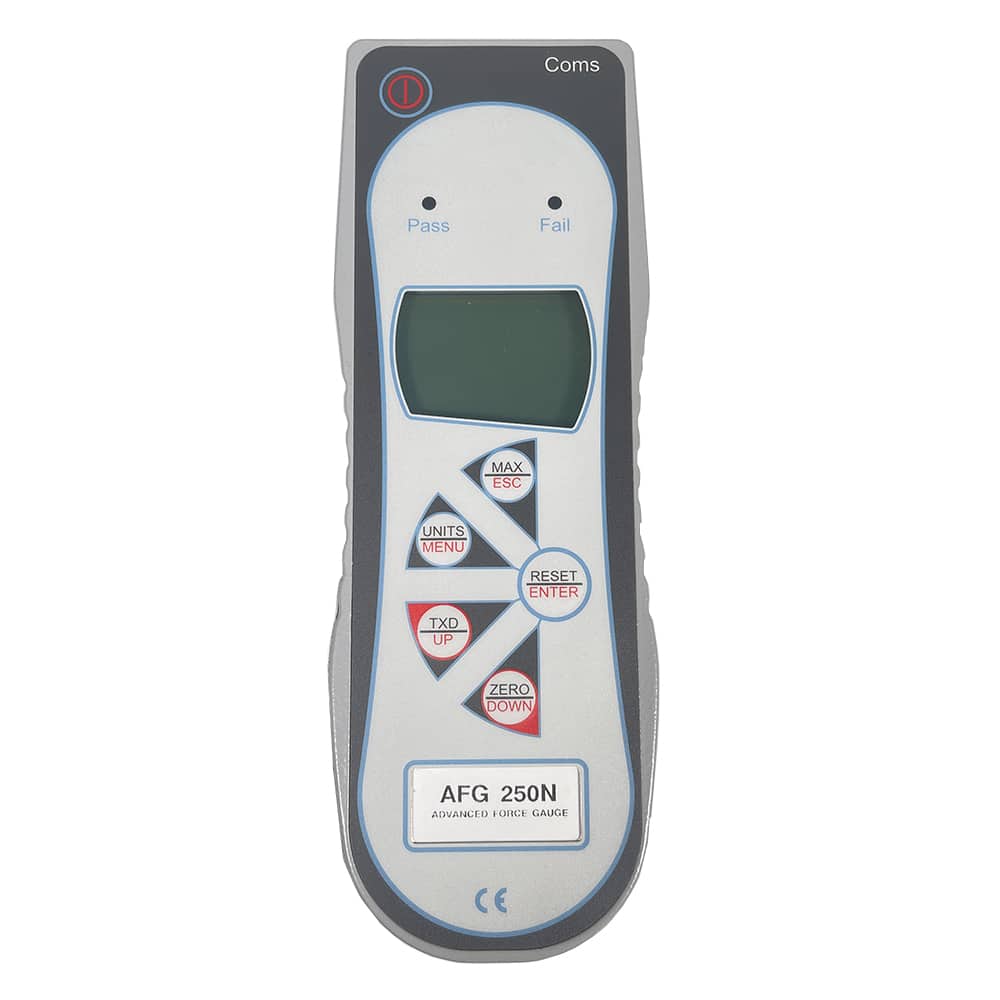

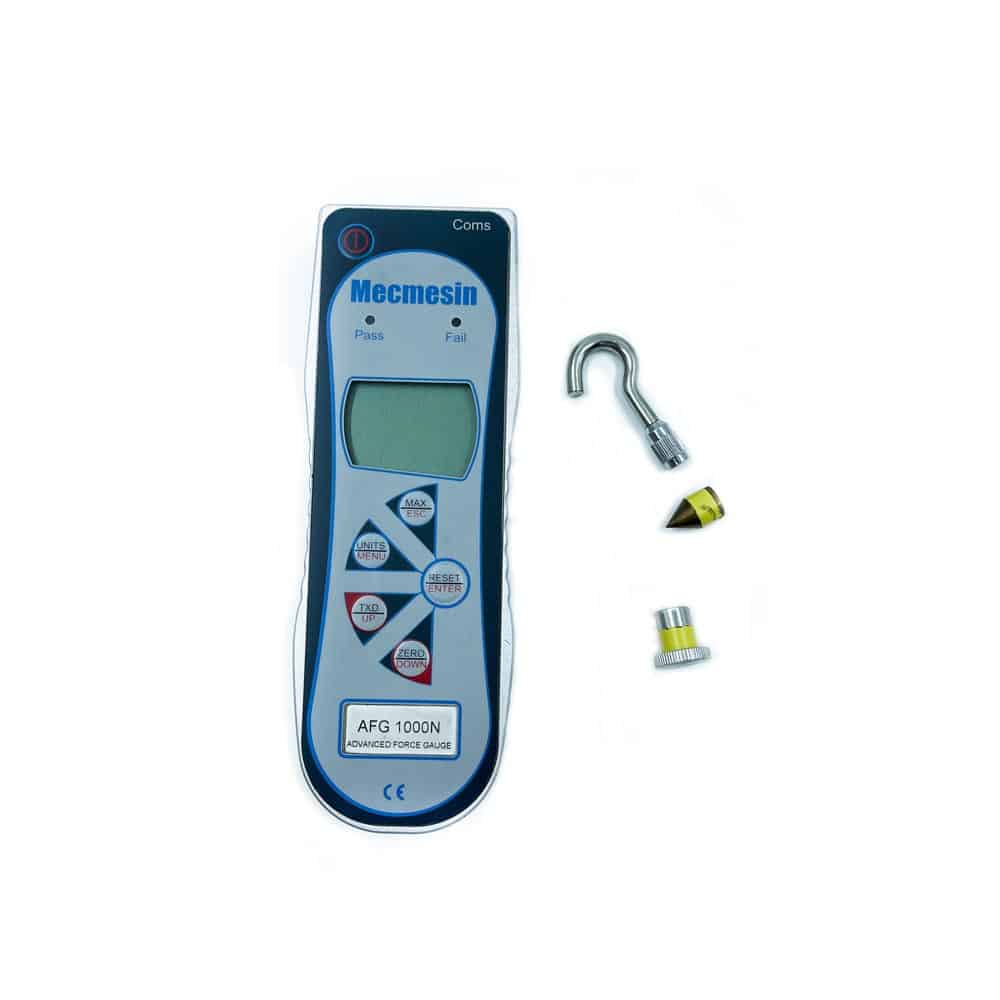

AFG Force Gauge: Multifunctional Digital Force Measurement
The AFG Force Gauge is ACRN's most versatile and comprehensive digital instrument for tensile and compression testing, combining high precision with an ergonomic, portable design suited to both production lines and laboratory environments.
Available in ten capacities from 2.5N to 2500N, the AFG Force Gauge is accurate to within 0.1% of full scale. Its digital display, data logging and multiple communication outputs (RS232, USB, digimatic, analog) allow every measurement to be traced, exported and analyzed with confidence.
Typical applications of the AFG Force Gauge
Manufacturers rely on the AFG Force Gauge to verify tightening forces, packaging seal strength, textile and cable tension, and general tensile or compressive performance during incoming inspection, in-process quality control or R&D testing. Compared with a purely mechanical force gauge, its electronics provide instant, accurate readings, measurement logging and improved repeatability, while remaining simple enough for operators without specialized metrology training to use with confidence.
General force-measurement principles for this type of instrument are described in the reference documentation on force gauges, and every AFG Force Gauge is delivered with a COFRAC-traceable calibration certificate to guarantee full metrological traceability for your quality processes.

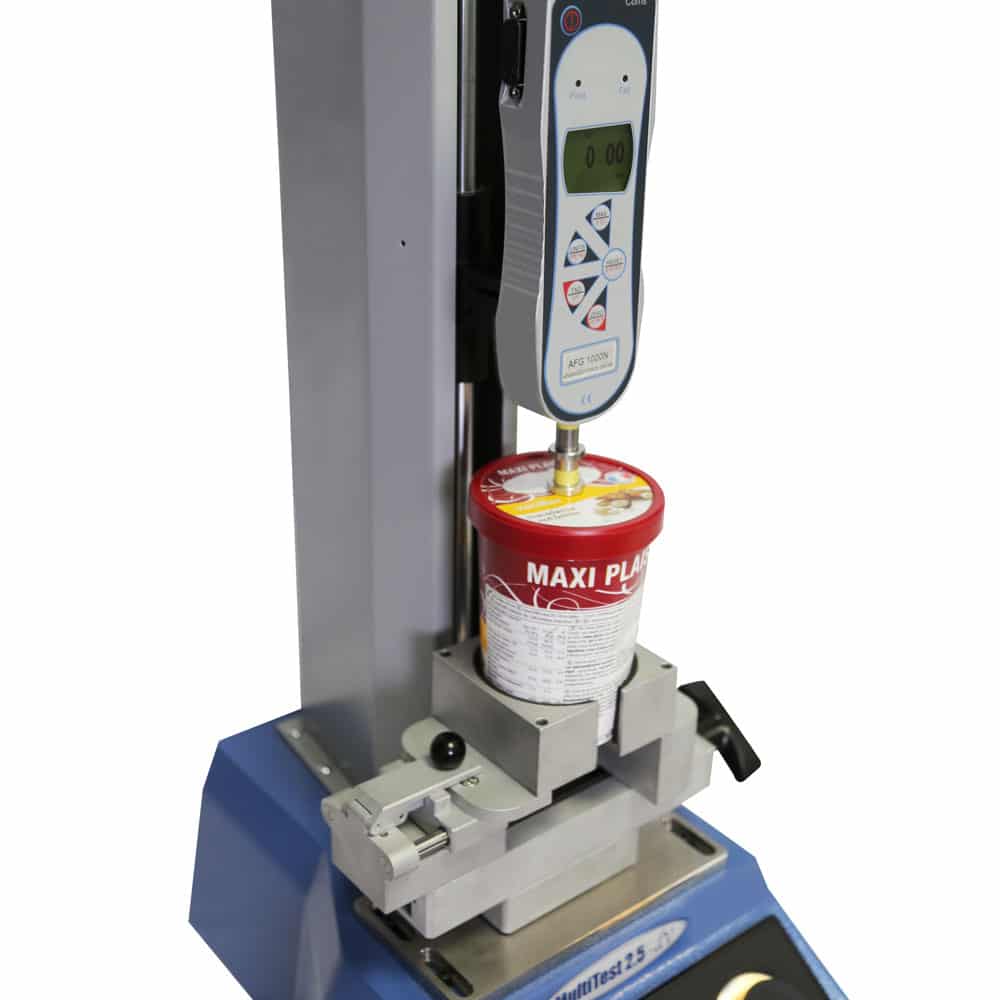

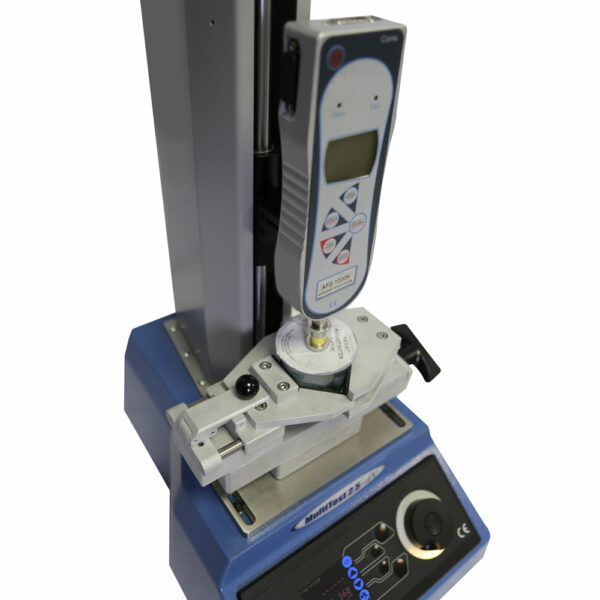

The AFG Force Gauge integrates seamlessly into ACRN's wider measurement ecosystem: it can be mounted on a compression/tensile test bench, combined with the Vector Pro Lite software for advanced data processing, or connected to external force and torque sensors to build a fully customized test station.
The range spans eleven models - AFG 2.5, 5, 10, 25, 50, 100, 250, 500, 1000 and 2500 - each identified by its maximum capacity in Newtons, so you can select the exact AFG Force Gauge that matches your test requirements without over- or under-sizing your equipment.
Feature details
- Max and 1st pic mode - identify critical load points from the test
- High data acquisition - accurately captures breaking force readings
- Audible and visual compliance alarms - immediately alert operators during testing
- Overload warning with bar graph - to minimize accidental sensor damage
- Integrated storage for up to 500 readings - test quickly now and download results later
- Data transfer via RS232, digimatic or analog - data output to a PC or printer for later analysis
- Connection of force and external torque sensors possible - becomes a versatile display for many different applications
Options

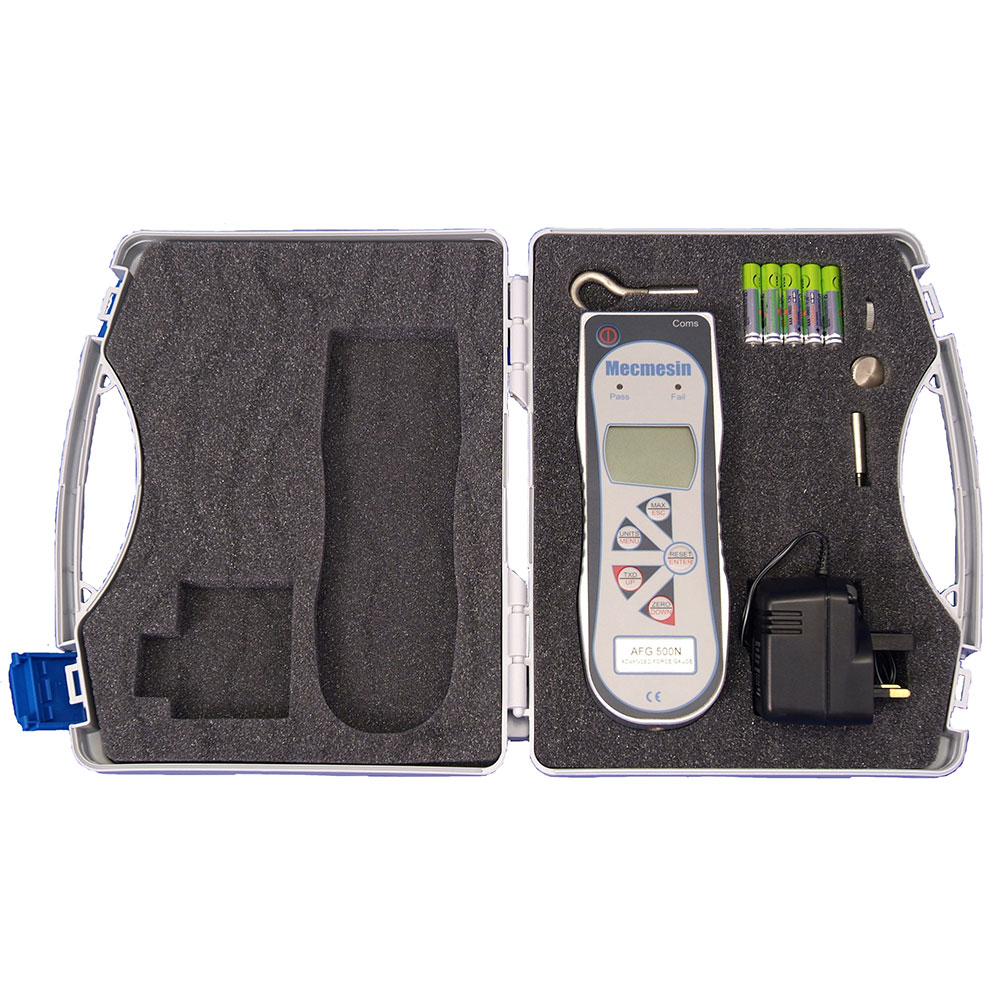

| Many traction / compression accessories (see catalog) |

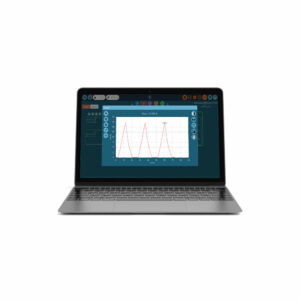

| Vector Pro Lite software for data processing / acquisition (1 license) |
| AFG cable to Mitutoyo port |
| AFG cable to RS232 |
| AFG cable to USB |
| AFG to analog port |
| DataXport software to export data to Excel |
Model, Capacities X Resolution
| Model | N | kgf | ozf | lbf |
| AFG 2.5 | 2.5 x 0.0005 | - | 9 x 0.002 | 0.55 x 0.0001 |
| AFG 5 | 5 x 0.001 | 0.5 x 0.0001 | 18 x 0.005 | 1.1 x 0.0002 |
| AFG 10 | 10 x 0.002 | 1 x 0.0002 | 35 x 0.01 | 2.2 x 0.0005 |
| AFG 25 | 25 x 0.005 | 2.5 x 0.0005 | 90 x 0.02 | 5.5 x 0.001 |
| AFG 50 | 50 x 0.01 | 5 x 0.001 | 180 x 0.05 | 11 x 0.002 |
| AFG 100 | 100 x 0.02 | 10 x 0.002 | 350 x 0.1 | 22 x 0.005 |
| AFG 250 | 250 x 0.05 | 25 x 0.005 | 900 x 0.2 | 55 x 0.01 |
| AFG 500 | 500 x 0.1 | 50 x 0.01 | 1800 x 0.5 | 110 x 0.02 |
| AFG 1000 | 1000 x 0.2 | 100 x 0.02 | 3500 x 1 | 220 x 0.05 |
| AFG 2500 | 2500 x 0.5 | 250 x 0.05 | 9000 x 2 | 550 x 0.1 |
Specifications
Technical specifications
| Model | AGG 2.5, AFG 5, AFG10 |
|---|---|
| Capabilities | From 2,5 to 2 500N |
| Accuracy | ± 0.1% of the full-scale |
| Measurements units | mN, N, kN, gf, kgf, ozf, lbf |
| Internal Sampling rate | 5000 Hz |
| Dimensions (Width*Height*Depth) | 70 x 201 x 32mm |
| Weight | 650g |
| Overload rating | 150% of the full scale |
| Thread for accessories | From 2.5 to 500 N: Male type 10-32 |
| Output data | RS232, digimatic, analogic |
| Display | LCD backlit screen with reversible display |
