Mechanical Compression force gauges CX
The mechanical compression force gauges CX

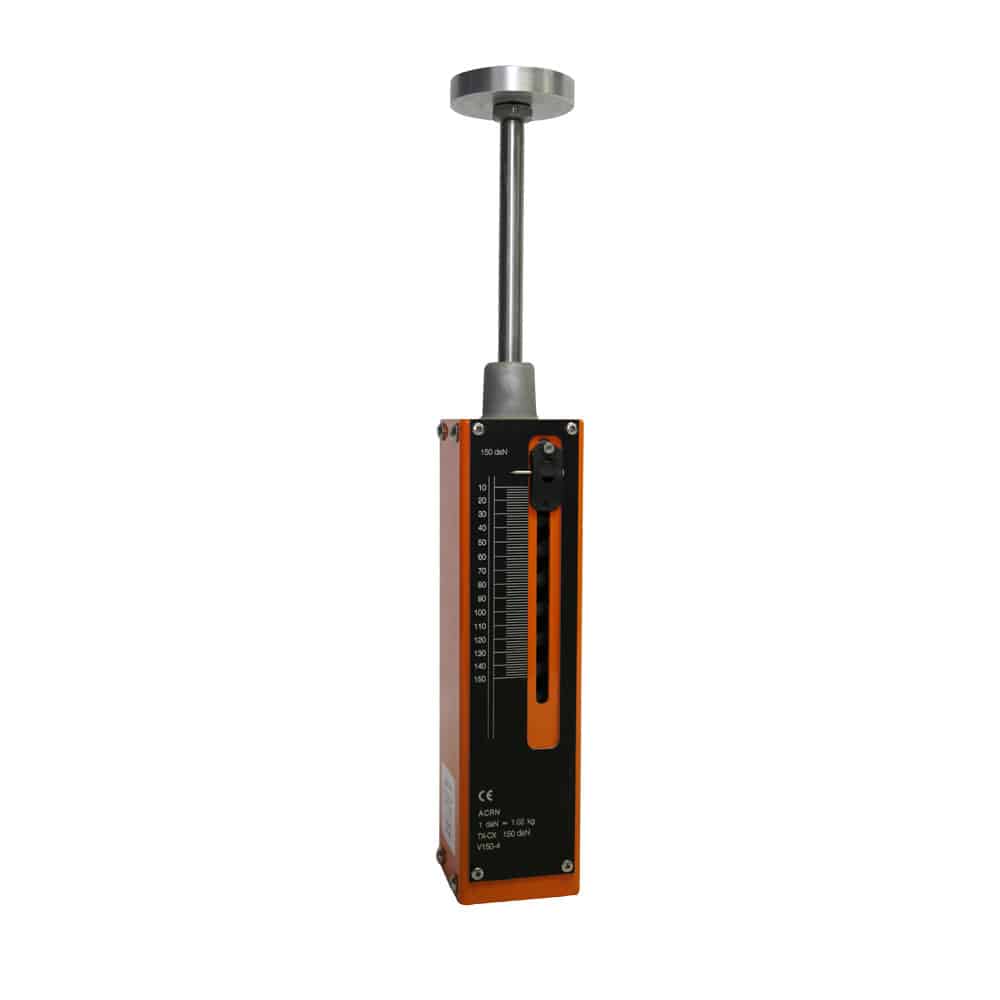

Compact and robust, with a stop protecting them from overlaods, the CX are mechanical force gauges that enable tensile or compressive forces to be measured.
Without any delicate mechanism, they are insensitive to variations in temperature and to bad watcher.
The measurements is carried out on the elastic deformation of a spring in a steel case and is indicated by an index which enables instantaneous readings to be taken from a graduated scale.
Description
The mechanical compression force gauges CX
The CX mechanical compression tester is the gold standard for measuring compressive forces in industrial settings and quality control laboratories. It works on the principle of the elastic deformation of a spring housed in a steel casing—with no electronics, no battery, and no power supply. Its rugged design makes it resistant to temperature fluctuations and harsh weather conditions, making it suitable for use in workshops, production facilities, and outdoors.
The compression value is displayed instantly on the scale via a mechanical pointer. The maximum detachable index retains the peak value after the force is released, allowing for accurate readings without having to maintain pressure on the sample. A built-in overload limit switch protects the instrument in the event of accidental application of a force exceeding the rated capacity.
The CX is available in 7 models covering a range from 60 to 600 daN (approximately 61 to 612 kg), with an accuracy of ±4% and a safety factor of 5. It comes with an ACRN calibration certificate
Application of the mechanical compression dynamometer
The CX mechanical compression testing machine is used in many industries for quality control and mechanical characterization:
Cosmetics and packaging — measuring the compressive force required to activate a pump, testing the crush resistance of a cap or cover, and checking the forming force required for a lid. The CX is particularly well-suited for quality control roles in the cosmetics packaging industry.
Agri-food — Compressive strength testing of packaging (trays, jars, boxes), verification of the closing force of lids and seals, and testing of the mechanical strength of solid food products.
Manufacturing and Assembly — Verification of the insertion force of snap-fit components; compression strength testing of springs, gaskets, and plastic or metal parts on production lines.
Construction and Civil Engineering — Measurement of compressive forces in building materials, testing the strength of supports and anchors, verification of clamping forces on structures.
Laboratories and R&D — mechanical characterization of materials, process validation, and repeatability of compression measurements in the context of product development.
CX vs. TX: How to Choose?
The CX and TX models share the same measurement technology—steel spring, rugged housing, disengageable maximum indicator, ±4% accuracy, made in France. The difference lies in how the force is applied:
The TX (tension) is equipped with lifting eyes at both ends. It measures tear, tensile, and peel strengths. It is ideal for testing the tensile strength of fasteners, welds, or joints.

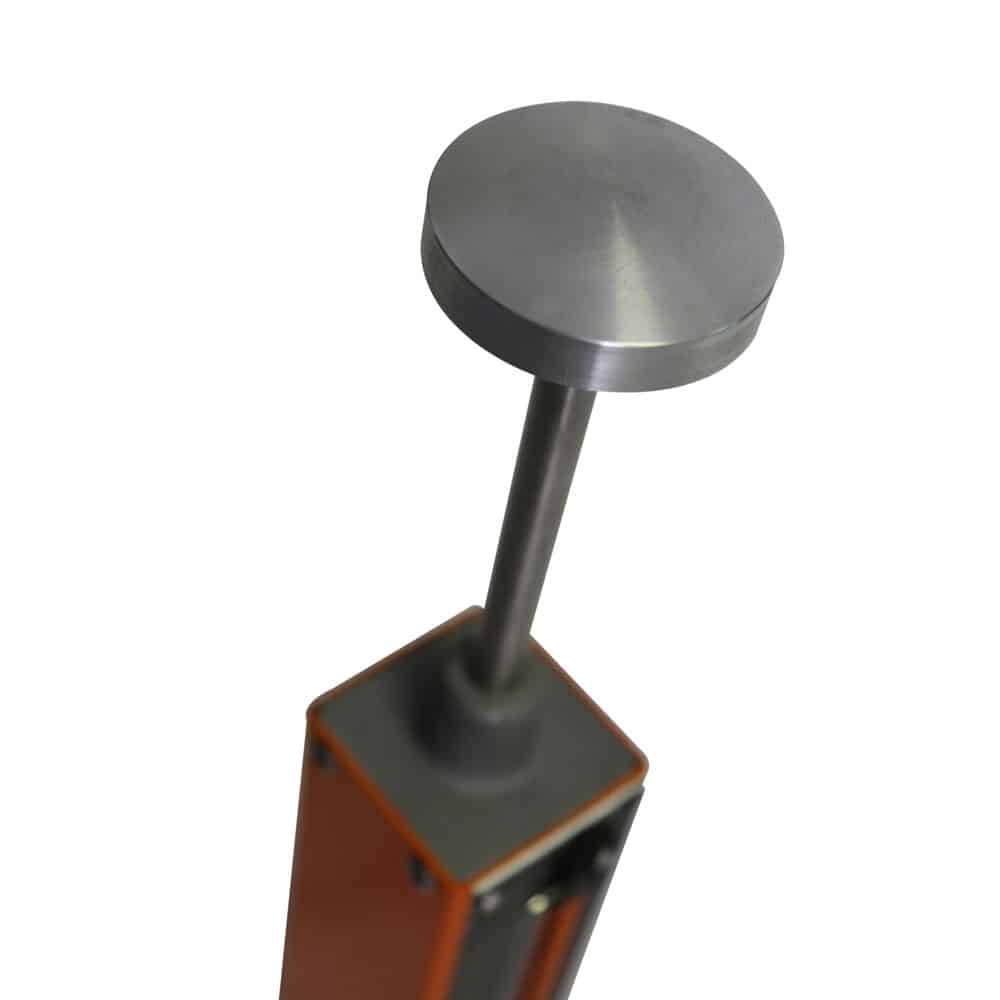

The CX (compression) is equipped with a support plate and a push rod. It measures the compressive forces applied to a surface. It is suitable for crush tests, pressure resistance tests, and tests to activate mechanical components.
If your application requires both types of measurement, the two devices can be used together at the same quality control station.
Main features :
- High accuracy for reliable, long-term measurements.
- Robust construction designed to withstand the most demanding industrial environments.
- Easy to use, with measurements displayed directly on the dial.
- Available in several measurement ranges to suit your specific needs.
Use the ACRN mechanical compression tester to ensure the quality and safety of your products at every stage of your manufacturing processes.
Key Features of the CX Mechanical Compression Tester
-
- Robust and economical
-
- Accuracy of + / – 4%.
-
- Useful reading from 1/10 of the measuring range
-
- Safety coefficient 5
-
- Disengageable maximum index

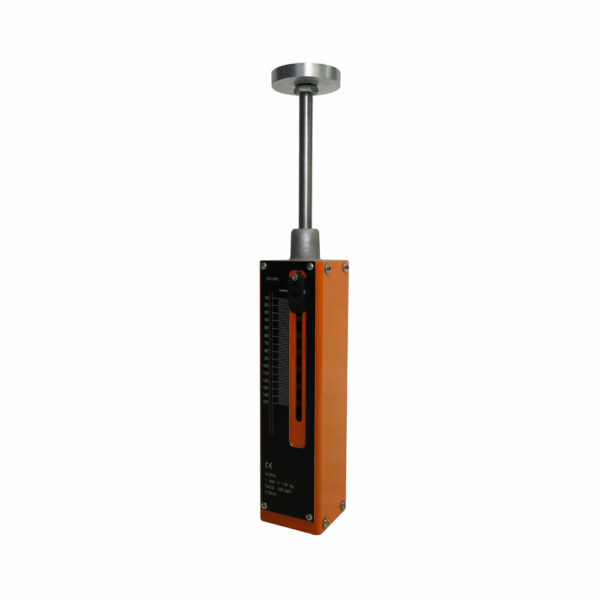

Compression Dynamometer CX
| Model | Scope (daN) | Graduation (daN) |
| CX 60 | 0 to 60 | 1 |
| CX 100 | 0 to 100 | 1 |
| CX 150 | 0 to150 | 2 |
| CX 200 | 0 to 200 | 2 |
| CX 300 | 0 to 300 | 5 |
| CX 400 | 0 to 400 | 4 |
| CX 600 | 0 to 600 | 20 |
Options:
| Carrying case |
Delivered with:
- ACRN calibration certificate
- A user manual
Also worth checking out :
- The TX Mechanical Tensile Tester — Same product line, same technology, for tensile testing.
- The EPX-T Electronic Scale — digital version with digital display, data output, and PC connection.
- The MDD Manual Test Bench — to attach the CX to a precision mount that allows for controlled application of compressive force.
- Our Calibration Service — Annual metrological verification of the CX in our laboratory in Normandy.
