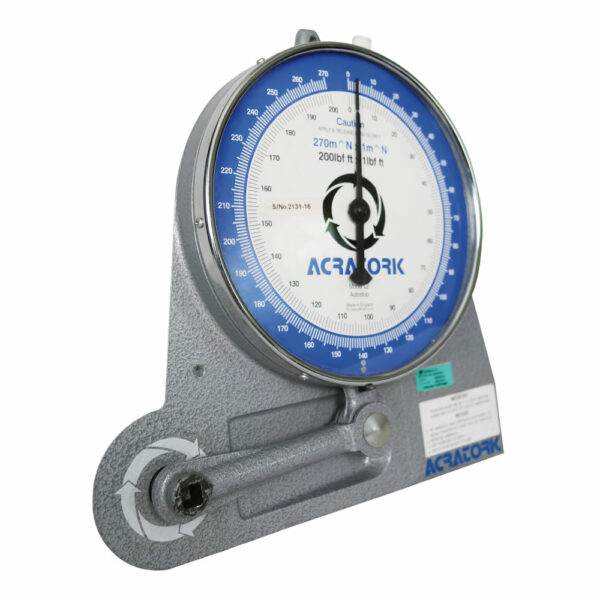

Acratork key controller

Mechanical torque controller

The acratork allows precise control, adjustment and calibration of hand-operated torque wrenches and screwdrivers.

Extremely robust and lightweight, they offer great precision and excellent hold over time.

Mounted on ball bearings to ensure minimal friction.

There are 4 products from L1 to L4.

ACRN, ensures the calibration and the after-sales service of these models.

Acratork Data Sheet



After-sales

In-house ACRN service

COFRAC

Traceable calibration

Experts

Technical support

Fast

Shipping

The product

Description

All models have double scales calibrated in ISO and imperial units.

The L1 range allows you to know the peak value thanks to a memory needle.

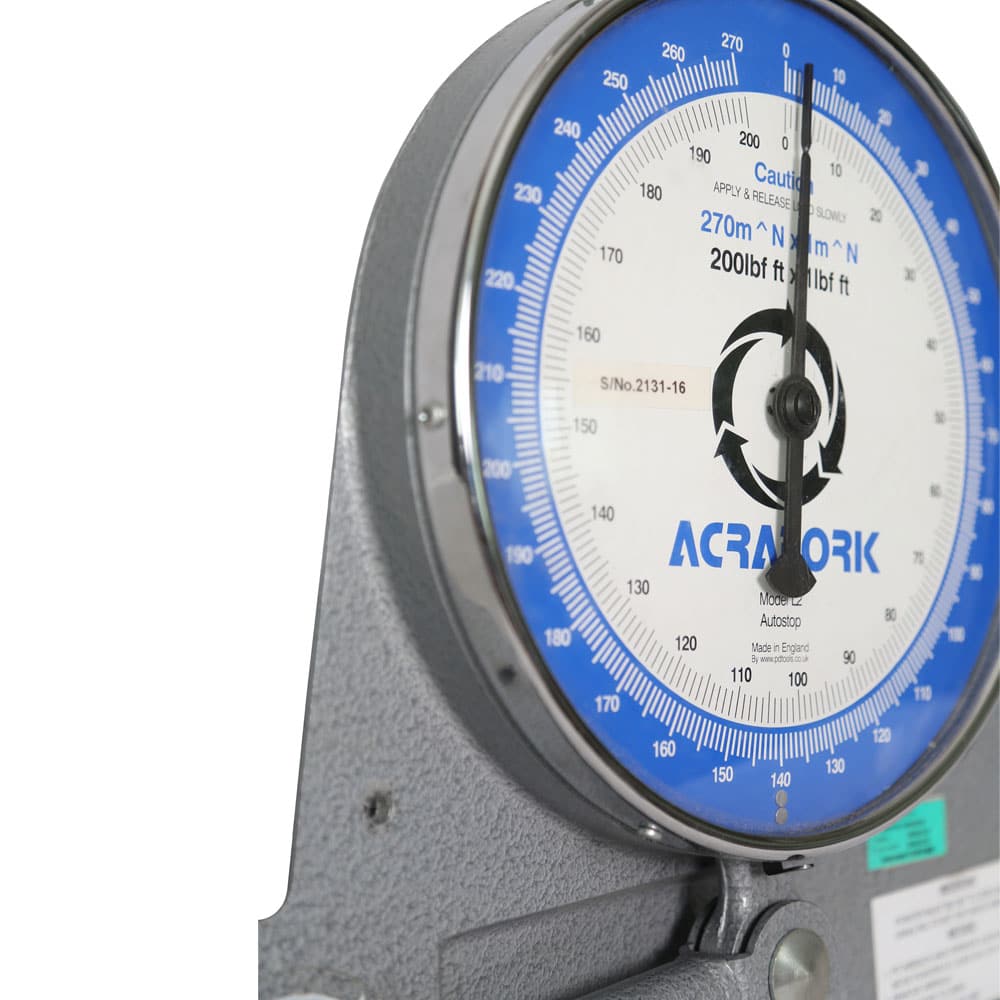

The L2, L3 abd L4 analyzers have a “Autostop” function that allows the needle to remain athe maximum torque load applied. Pressing the reset button sends the needle back to zero, ready off the next torque application.

The L1, L2 and L3 ranges attach to a vertical support.

The L4 range is equipped with a foot fot fixing.

Delivered with:

  • COFRAC calibration certificate.

Option:

  • Adaptor
Reference Model Iso Unit Imperial unit Accuracy Square drive Ø frame KG
Capacity Graduations Capacity Graduations
17 300 07 L1-R 0-35 N.cm 0.5 N.cm 0-50 ozf.in 1/2 ozf.in + / – 1 division 1/4″ 102 mm 0,84
17 300 31 L1 0-570 N.cm 5 N.cm 0-50 lfb.in 1/2lbf.in + / – 1 division 1/4″ 102 mm 0,85
17 300 43 L1-S 0-1350 N.cm 10 N.cm 0-120 lfb.in 1 lbf.in + / – 1 division 3/8″ 251 mm 0,90
17 300 45 L2-RM 0-2250 N.cm 10 N.cm 0-200 lfb.in 1 lbf.in + / – 1 division 3/8″ 251 mm 4
17 300 53 L2-SM 0-67 N.m 0,5 N.m 0-600 lbf.in 1 lbf.in + / – 1 division 1/2″ 251 mm 4
17 300 65 L2-M 0-270 N.m 1 N.m 0-200 lbf.ft 1 lbf.ft + / – 1 division 1/2″ 251 mm 4
17 300 73 L3 0-675 N.m 5 N.m 0-500 lbf.ft 1 lbf.ft + / – 2 divisions 3/4″ 235mm 8,75
17 300 83 L4 0-1500 N.m 5 N.m 0-1100 lbf.ft 2,5 lbf.ft + / – 2 divisions 1″ 235mm 15

Specifications

Technical specifications

Calibration

Reliable measurements over time

ACRN calibrates your instruments in its laboratory or directly on your site, with a COFRAC-traceable certificate.
