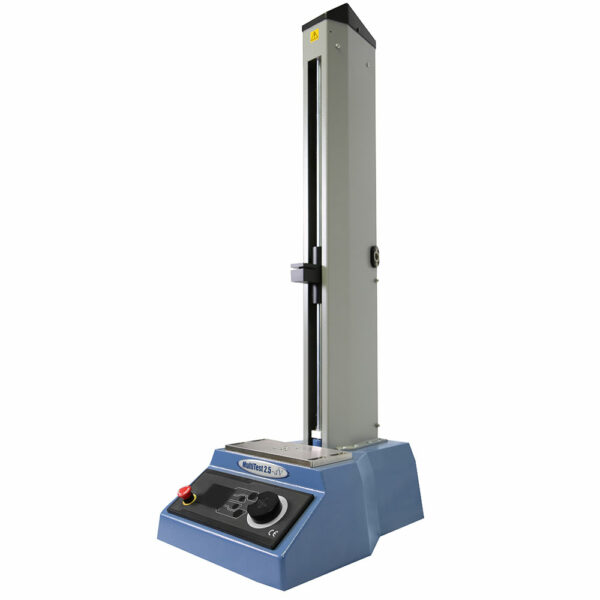

Motorized traction / compression stand

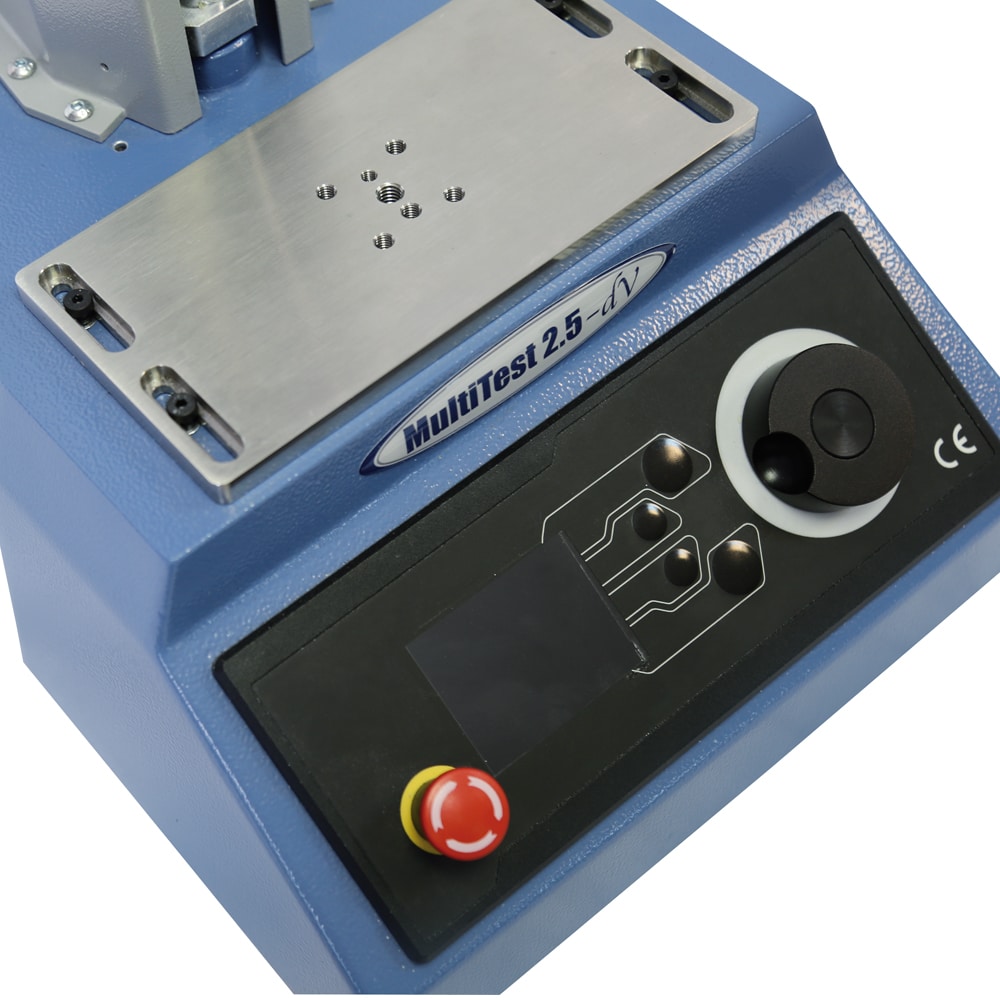

The multitest-DV is a versatile and compact motorized test bench, offering excellent value for money. It allows to realize precise tensile / compression tests, in particular thanks to its sophisticated electronic components and its egonomic control plate.

The single-column bench offers a wide range of functions, especially when it combined with an advanced force sensor. In addition, coupled with high-performance software, it will be easy for you tu fully trace and process your acquisition date.

Finally, thanks to the multiple adaptable accessories on the stand, it will be able to fully meet your needs while staying as close as possible to your budget. Its small size and robustness will faciliate testing in the production area and provide quality control in the laboratory.

Multitest DV Data Sheet

Description

Vector Pro Lite

  • Program creation

– Test permissions

– Test operation

– Résults: area calculation, average, adjustment, peak, etc.

  • Real-time curve

Instant calculation

-Compliant / non-compliant result

Revisions results: curve comparison, invert axes, zoom, etc.

  • Processing results

Graph comparison

Parameter adjustment

-Export of raw data or in the form of tables, in Excel, or PDF format for test reports.

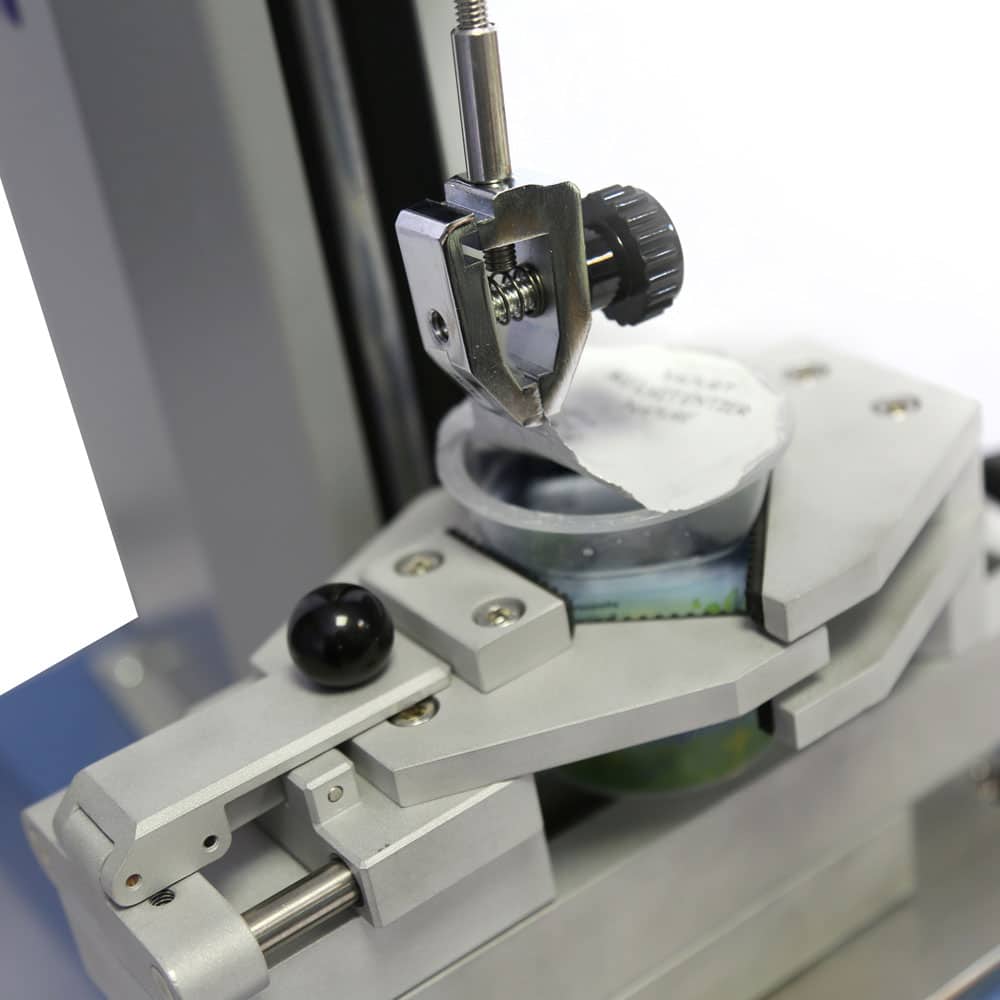

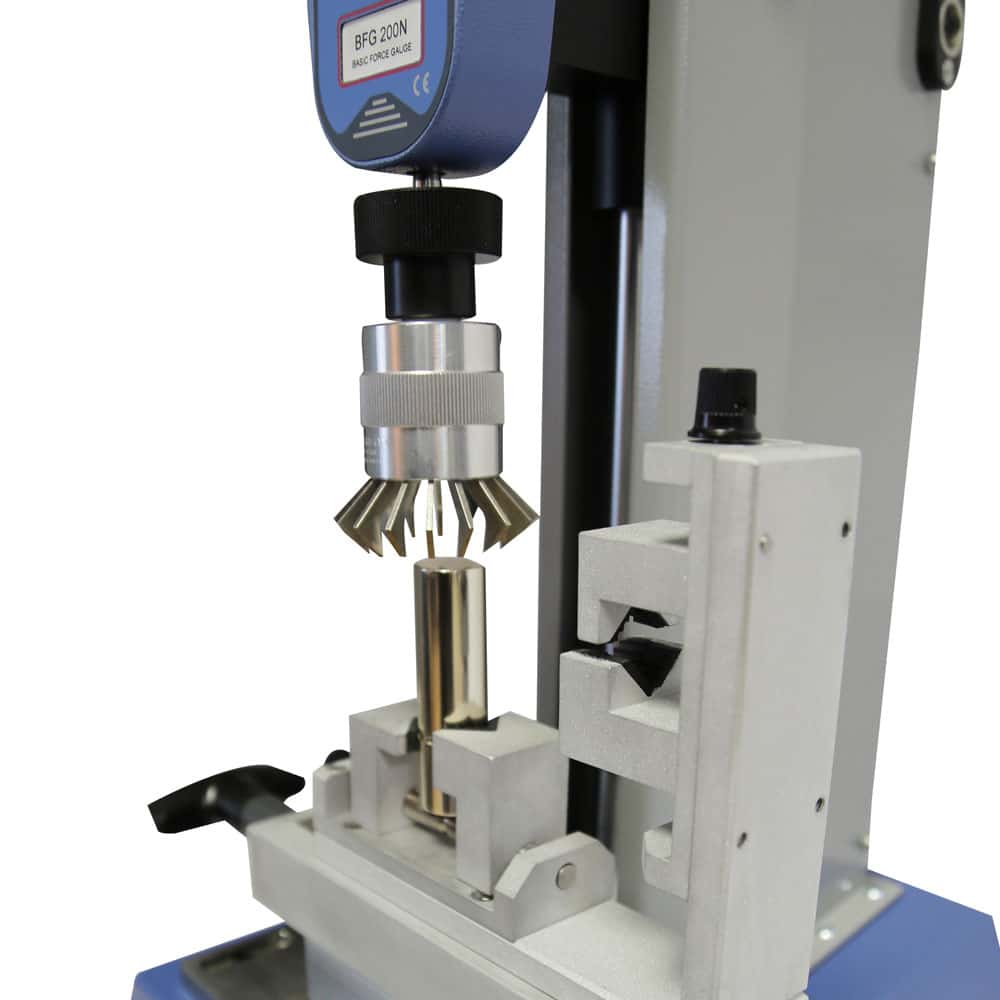

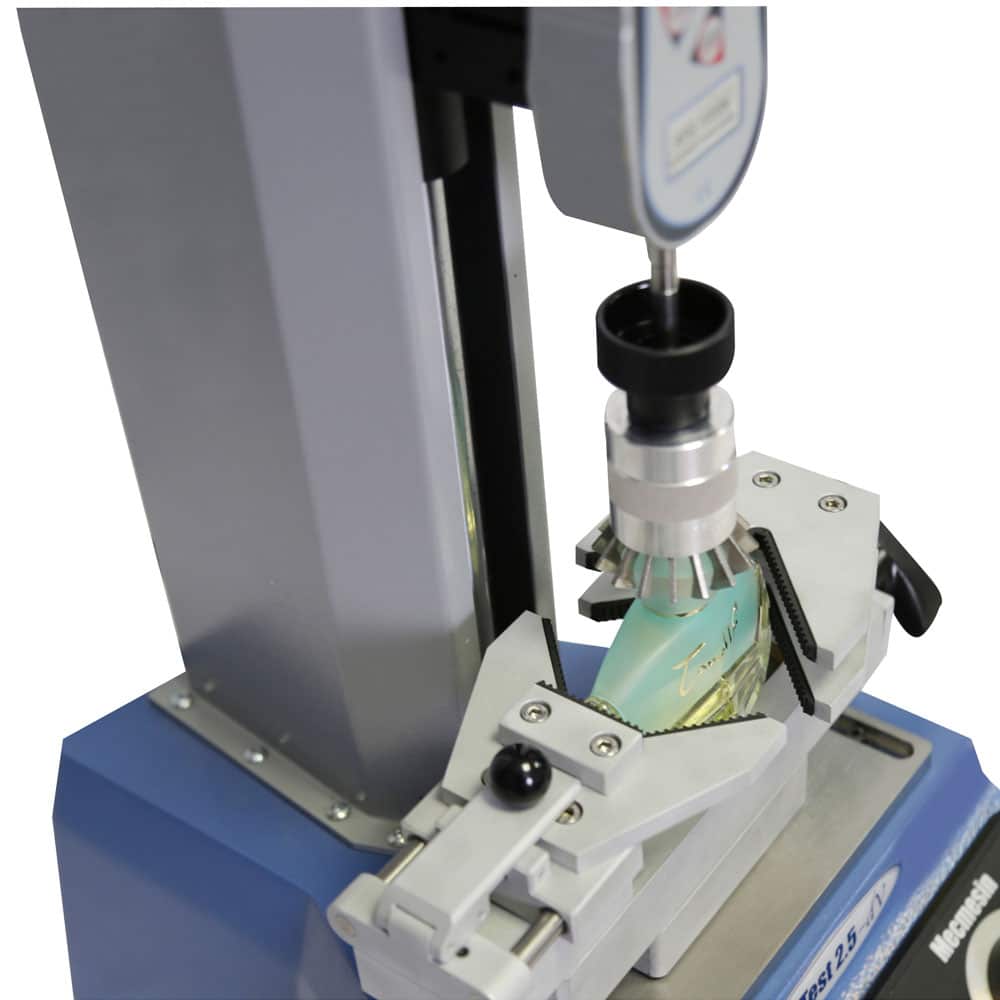

Various applications:

Various applications Multitest-Dv



Options

Vector Pro Lite Software Connection with Stand + AFG or BFG
Vector Pro MT Software Connection with Stand + ELC (material test)



Technical informations

Capabilities

0.5 kN, 1 kN, 2.5 kN

Mountable sensors

Digital force gauge, force sensor

Test mode

-Manual traction / compression
-Between 2 trips / -Between 2 limits / -Between 2 loads

2 level tests with digital force gauge AFG

0.5 kN / 1 kN: Autonomus (Peak value / Displacement limit)
2.5 kN: Load limit / Break limit

Displacement resolution

0.001 mm

Position precision

+ / – 0.130/300mm

Velocity range (Nb test / cycle)

0.1 to1200 mm/min 9999

Velocity resolution

0.1mm / min

Velocity precision

+ / – 0.2% of the indicated value

Power supply

230 V AC 50 Hz / 110V AC 60 Hz

Power

0.5 kN: 120W
1 kN: 200W
2.5 kN: 250W

Safety

Locktable thumbwheel
