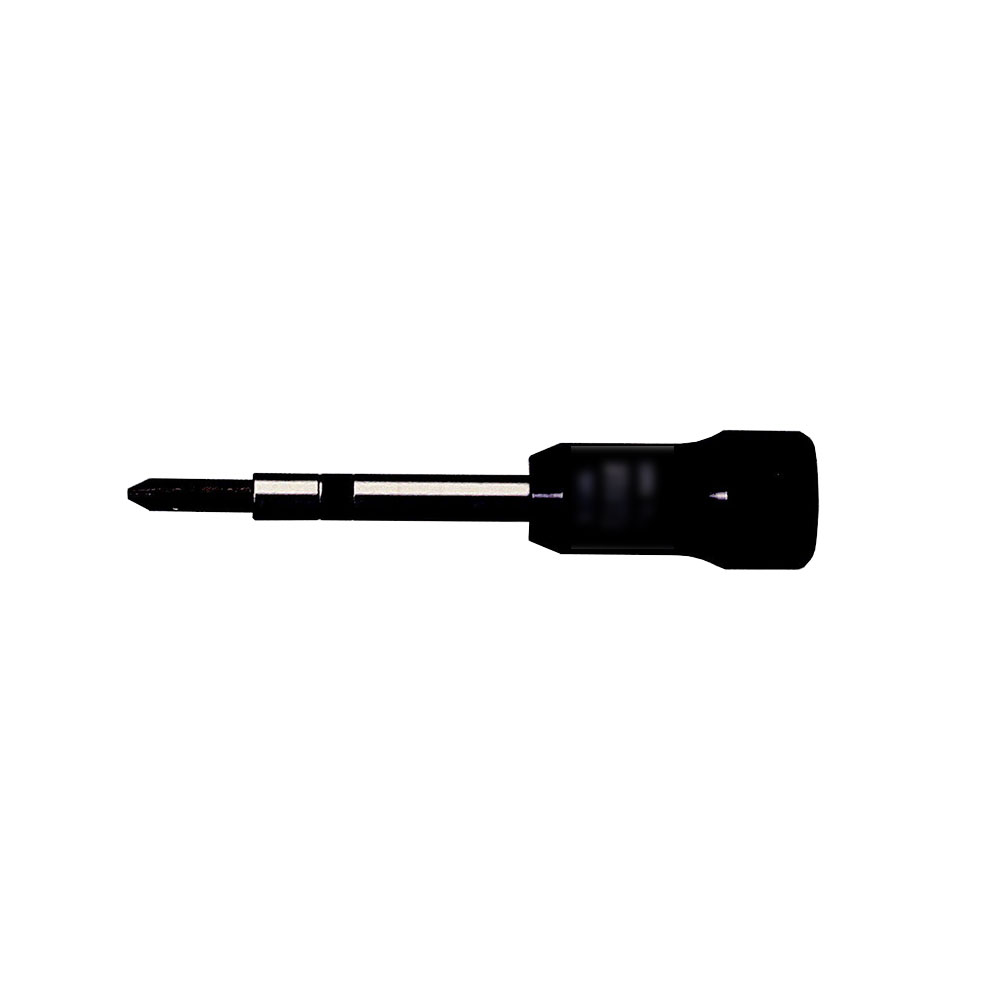

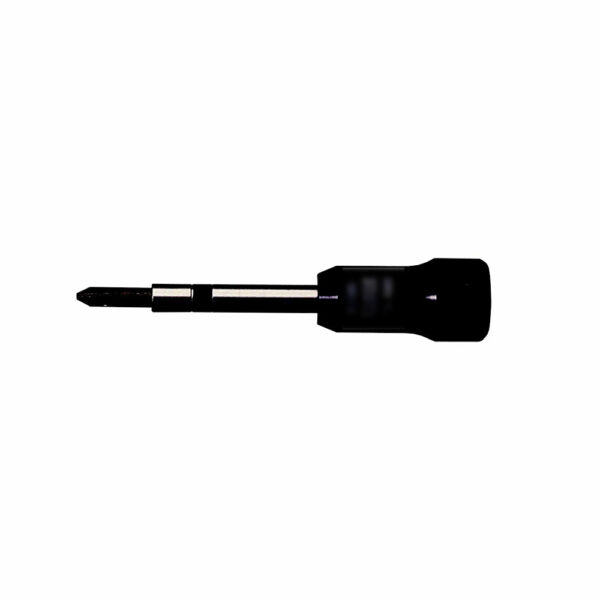

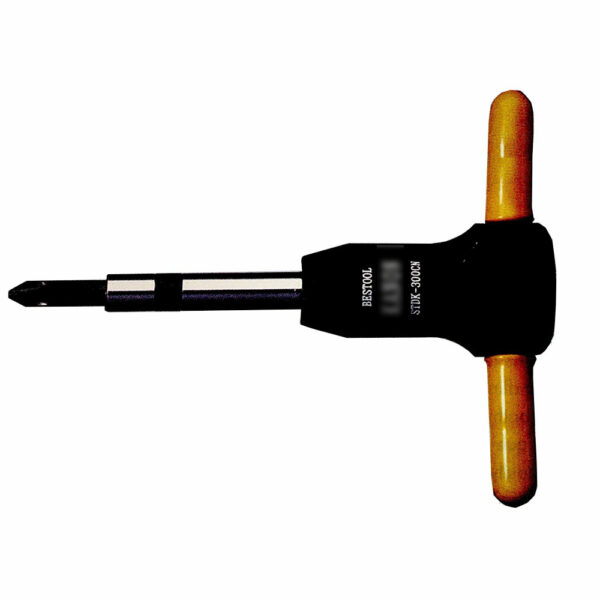

STDK torque screwdriver
A single function driver, used for a single torque setting.
Capacidad de 0,15 a 10 N.m
The STDK screwdriver is ideal for tightening screws in series.
Description
STDK Benefits:
- Most suited for tightening multiple same-size fasteners at the same torque in a production line
- Setting confirmation unnecessary
- Light weight and short overall length facilitates
- Two phillips bit are included
Options
| Various hex and box drive bits |
| Model | Capacity | Grip dia | Total length (without bit) |
| N1.5 STDK | 1 – 15 cN.m | 16 mm | 92 mm |
| N3 STDK | 2 – 30 cN.m | 16 mm | 92 mm |
| N6STDK | 10 – 60 cN.m | 25 mm | 103 mm |
| N12STDK | 20 – 120 cN.m | 30 mm | 116 mm |
| N20STDK | 40 – 200 cN.m | 30 mm | 111 mm |
| N30STDK | 40 – 300 cN.m | 35 mm | 117 mm |
| N50STDK | 100 – 500 cN.m | 35 mm | 126 mm |
| N100STDK | 4 – 10 N.m | 45 mm | 248 mm |
Technical informations
| Accuracy | ± 3% of set value, clockwise |
|---|
