LTDK Torque Screwdriver

Screw to the selected torque
Capacidad de 1 cN.m a 10 N.m

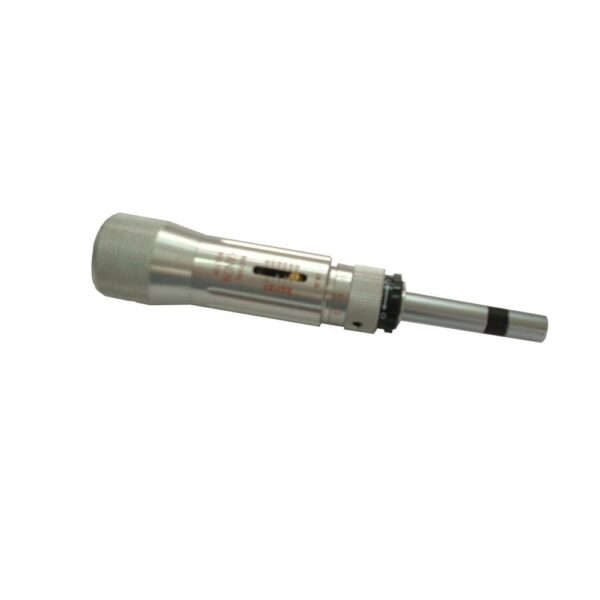

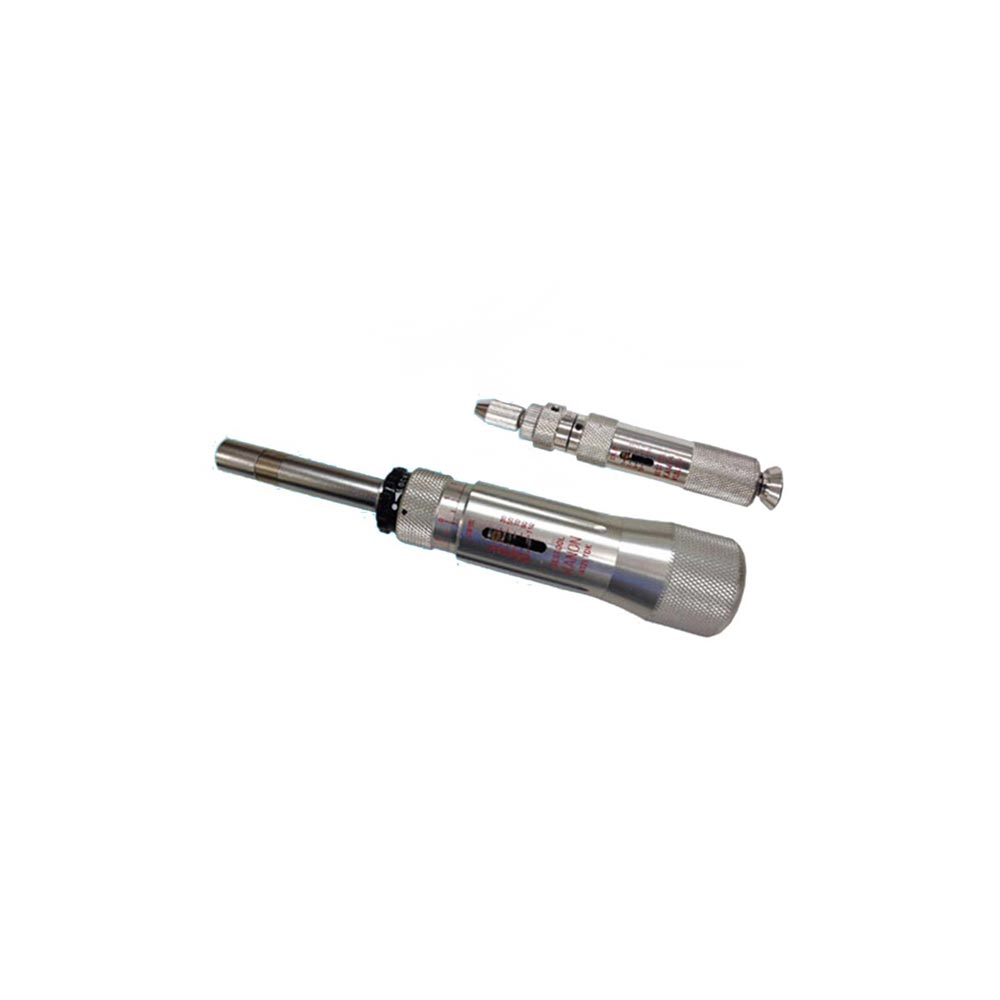

The LTDK screwdriver is ideal for tightening small screws in series. The desired torque can be set precisely and easily on the outer micrometer scale.

The LTDK screwdriver is micrometrically adjustable and fully releasable.

After-sales

In-house ACRN service

COFRAC

Traceable calibration

Experts

Technical support

Fast

Shipping

The product

Description

LTDK Benefits

  • Comfortable grip for extended use
  • Its light weight and overall length make it easy to work with.
  • The sensitive clutch release allows the operator to feel when the torque is reached.
  • Two Phillips bits are included
  • Used for clockwise and counter-clockwise tightening.
  • Accuracy: ± 3% of the indicated value over the entire range, clockwise.
  • H” models accept standard bits instead of CB bits

[/]

LTDK-3

Options

Various hexagonal and box drive bits are available
Available in metric sizes
Hexagonal socket ¼ ” for N1.5 LTDK and N3 LTDK models

diagram

Model Capacity Graduation Length
N1.5 LTDK 1 – 15 cN.m 0.1 cN.m 96 mm
N3 LTDK 2 – 30 cN.m 0.2 cN.m 96 mm
N6 LTDK 5 – 60 cN.m 0.5 cN.m 110 mm
N12 LTDK 20 – 120 cN.m 1 cN.m 160 mm
N20 LTDK 40 – 200 cN.m 1 cN.m 160 mm
N30 LTDK 40 – 300 cN.m 1 cN.m 160 mm
N50 LTDK 100 – 500 cN.m 2.5 cN.m 200 mm
N100 LTDK 4 – 10 N.m 0.05 N.m 235 mm

Included

Calibration certificate

Bits available: Phillips, flat, female hex and male hex bits (types CB, OB or SB depending on the screwdriver model). Tell us your screwdriver and the drive you need, and we will recommend the right bit.
