Lower Keyless 4-Jaw Chuck
When seeking to hold small components or assemblies for torque testing it is often possible to use the flexbility provided by a standard machine-chuck.

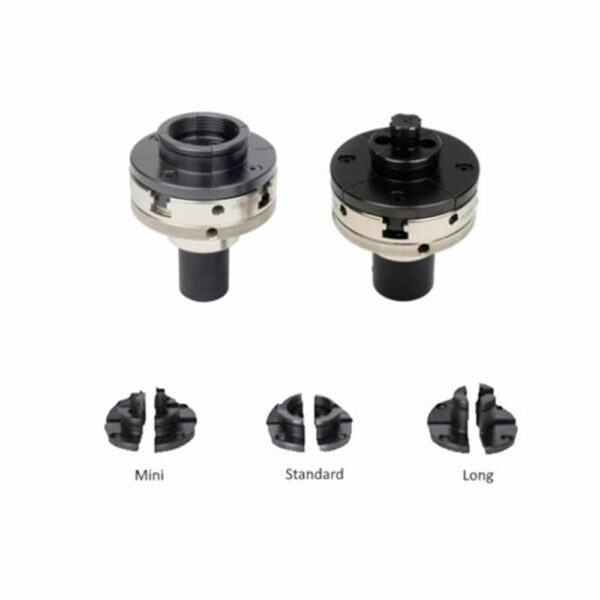

Lower “keyless” 4-jaw Chuck (large) fitted with a round shaft for connection to the motor spindle of Vortex torque stands. Jaws may be tightened by hand or using the levers provided.
Each 4-jaw chuck is delivered with 3 setf of interchangeable jaws which can quickly and easily be fitted using the fixing screws supplied.
Max opening of chuck = 80 mm Weight including jaws = 1400 g
|Opening of the different Jaws|
|Mini||Min 1 mm – max 37 mm||Contact height: 31mm|
|Standard||Min 37 mm – max 72 mm||Contact height: 14 mm|
|Long||Min 10 mm – max 42 mm||Contact Height: 32 mm|
