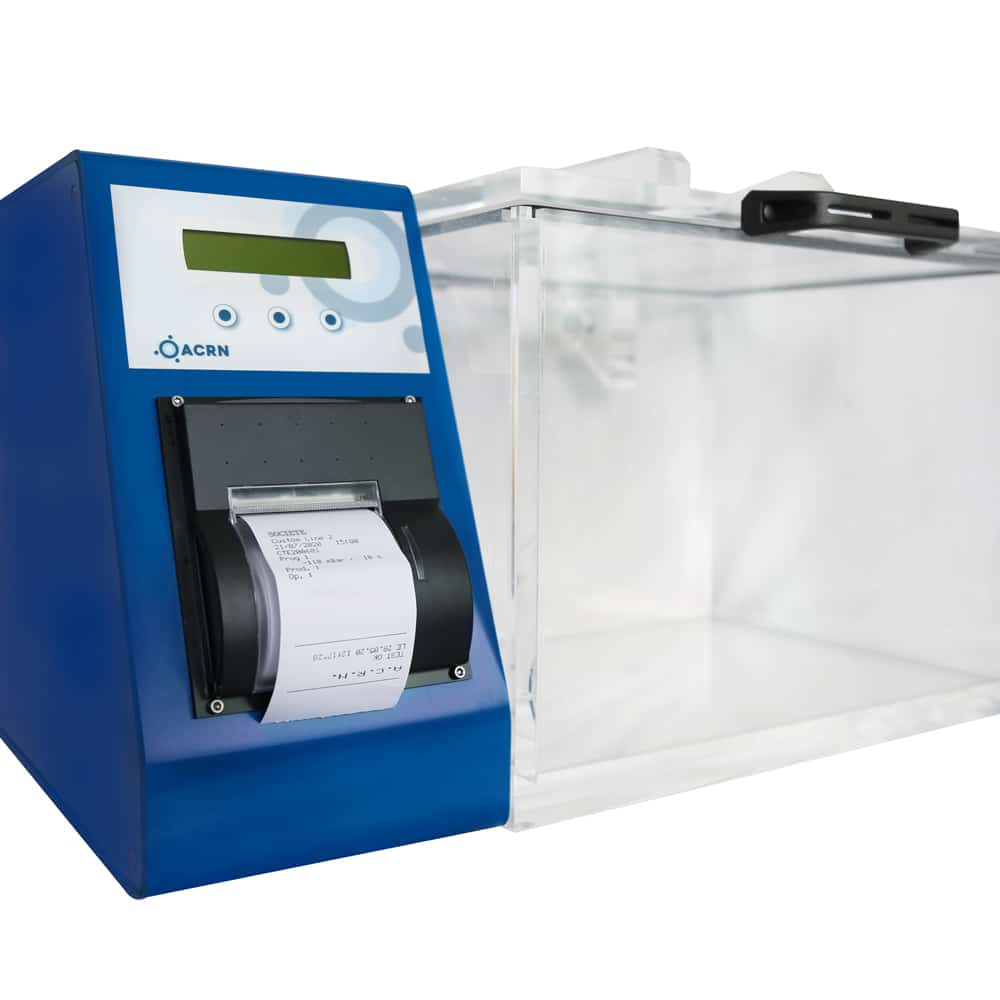

CTEX-I Leak test box
Convertible model and scalable
It allows the tightness of heat-sealed or sealed packaging of solid products containing air, such as blister packs, bags, doypacks, yogurts, trays, etc., to be checked by means of vacuum testing.
The presence of a leak is detected with the appearance of bubbles in the water during depression, and so is precisely localized. A perforated plexiglass plate, called a presser, keeps the product submerged.
This model is available with a vacuum pump system for vacuuming.
After-sales
In-house ACRN service
COFRAC
Traceable calibration
Experts
Technical support
Fast
Shipping
The product
Description
Benefits
- Fast, ergonomic and easy to use
- Visual reading (appearance of bubbles)
- Reliable and economical – Adapted to the production environment / Robust
- Test on receipt of raw materials, in production, before shipment
- Pressure sensor in the control box
- Traceability by a printed time-stamped ticket containing the test information or by data export software
- Safety jacks from a defined box volume
- Many accessories and possible arrangements according to the customer’s needs
Technical information
| Box | Transparent PMMA chamber on hinge |
| Range of measurements and accuracy | From -0.1 to -0.85 Bar as standard. Accuracy + / -2 % Fully controlled by a microprocessor card |
| Useful dimensions | It depends on the size of box. |
| Reading the depression | Digital display : ergonomic menu with only 3 keys. |
| Units | Bar, Psi |
| Power supply | – On compressed air 7 bar / – Vacuum pump |
| Weight | Depends box defined |
| Thickness | 20, 25 or 30 mm depending on the RDM study |
| Depression adjustment | Solenoid valve |
| Printing | Printer embedded tickets for ticket stamped |
| Depression time | Adjustable delay from 0 to 4 000 s |
| Principle of the test | Visual |
| Temperature | From 0 to 40°C |
| Standards | IATA, ASTM D6653, ASTM D4991, ASTM D5094, ASTM D4169, EN 14401, DIN55528 (Part 1, 2, 3, 4, 5) |
| Programming | 8 independent programs (time/ depression) that can be liked together |
Options
| Decrease in depression time (venturi more powerful) |
| Model without printer |
| Point-by-point acquisition software for all PC software |
| Drain valve for carrying water away |
| Non-destructive test |
| Special interior arrangement |
| Vacuum pump replacing compressed air |
Delivered with:
A calibration certificate LNE / COFRAC
Choose the dimensions of your box.
Box
Lid
L250 x P200 x H150 mm
Model A
Weight: 7 Kg
Volume: 7,5 L
100 % Transparent
interior arrangement
possible (partitioning...)
Possible cylinders to assist in
handiling and
holding in an upright position
L350 x P250 x H80 mm
Model B
Weight: 8 Kg
Volume: 7 L
L450 x P350 x H100 mm
Model E
Weight: 9,5 Kg
Volume: 15,75 L
L450 x P350 x H300 mm
Model H
Weight: 28,5 Kg
Volume: 47,25 L
L350 x P250 x H150 mm
Model C
Weight : 9 kg
Volume 13,1 L
L450 x P350 x H150 mm
Model F
Weight : 14,25 kg
Volume 23,625 L
L350 x P250 x H250 mm
Model D
Weight 13 Kg
Volume: 21,9 L
L450 x P350 x H200 mm
Model G
Weight 19 Kg
Volume: 31,5 L
L500 x P400 x H200 mm
Model J
Weight 17,5 Kg
Volume: 40 L
L500 x P400 x H300 mm
Model K
Weight: 22 Kg
Volume: 60 L
L500 x P400 x H100 mm
Model I
Weight : 12 kg
Volume 20 L
Specifications
Technical specifications
| Caisson | Transparent PMMA chamber on hinge |
|---|---|
| Etendue de mesure et précision | From -0.2 to -0.85 Bar as standard |
| Dimensions utiles | Length (L) x Depth (D) x Height (H) |
| Lecture de la dépression | Needle pressure gauge 50 mbar resolution |
| Unités | Bar, Psi |
| Alimentation | On compressed air 7 bar network connected to Rislan® 8mm pipe |
| Réglage dépression | Regulator with filter |
| Durée de dépression | Adjustable time device from 0 to 999 s |
| Principe du test | Visual |
| Température | From 0 to 40 °C |
| Normes | ASTM D3078 |
