Analog Stamping Height Gauge A2105

Analog stamping height meter

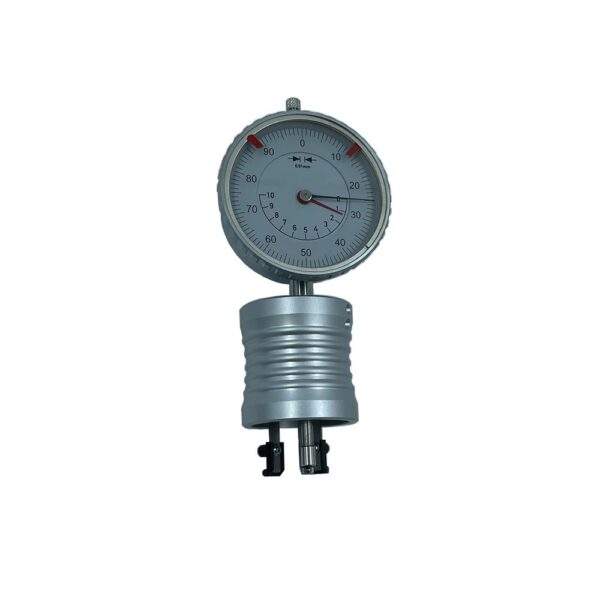

The A2105 is an analog staking/crimping height gauge specially designed for aerosol applications. It enables precise verification of crimp heights in a range from 4.6 to 5.4 mm, with an indication range from 1.25 to 10.3 mm, and offers a resolution of 0.01 mm.

Its moderate measuring force (0.7 to 1.3 N) combined with a weight of 230 g ensures precise control without exerting excessive pressure on parts. Maximum error and repeatability tolerances are both 0.02 mm, guaranteeing consistent measurements. Finally, it is designed to operate optimally in a temperature range from 10°C to 30°C.

Description

A2105
A2105

Technical information

Type Range Range indication Resolution Measuring force / weight Max permissible error Repeteability error Operating temperature
AEROSOL 4.6 – 5.4 mm 1.25 mm – 10.3 mm 0.01 mm 0.7 – 1.3 N / 230 g 0.02 mm 0.02 mm 10°C – 30 °C

Need a quote or information on this product ?
Please contact us
