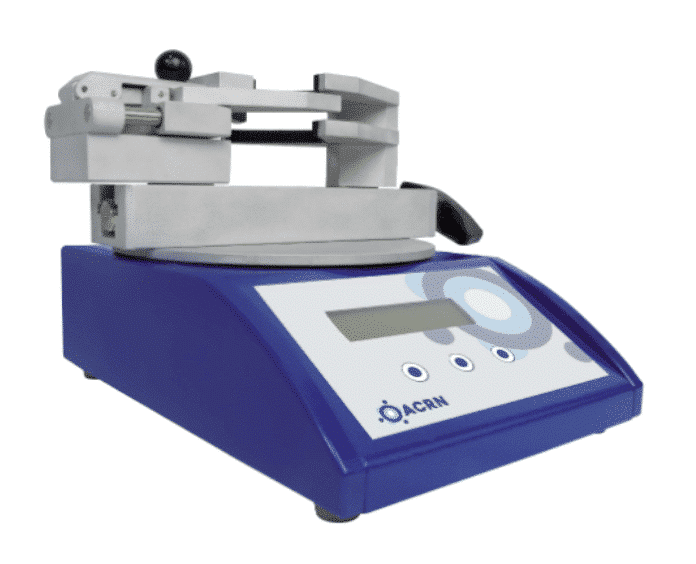

Cap Torque Tester NCA
Advanced features for your controls
This table torque meter is designed for precise, rapid and complete measurement of screwing and unscrewing, in order to optimize packaging control. It is suitable for both laboratories and production environments.
Description

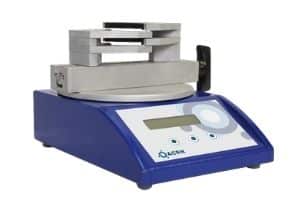

The NCA model is a high-precision manual cap torque tester, designed to efficiently measure the tightening and loosening torque of caps on vials, jars, or bottles. Especially suited for the pharmaceutical, cosmetic, and food industries, it ensures rigorous quality control while remaining easy to use. With its robust construction and intuitive handling, the NCA is an essential tool both in laboratories and on production lines.
Strengths of the Cap Torque Tester NCA
Quality control assistance
It embeds tools such as Pass / Fail mode, and various programs with memorization of values.
An additional external sensor
With a single device, it is possible to control several torque scales (eg: from 0 to 1 Nm and from 1 to 10 Nm) thanks to the external sensor option unique on the torque meter market.
Many clamps available
It can accommodate the very wide range of ACRN clamps.
ACRN Quality
The components of our machines ensure a long lifespan and their independence allows a more efficient and less expensive after-sales service.
Permanent evolution thanks to the compositions of the machines.
Clamps Examples

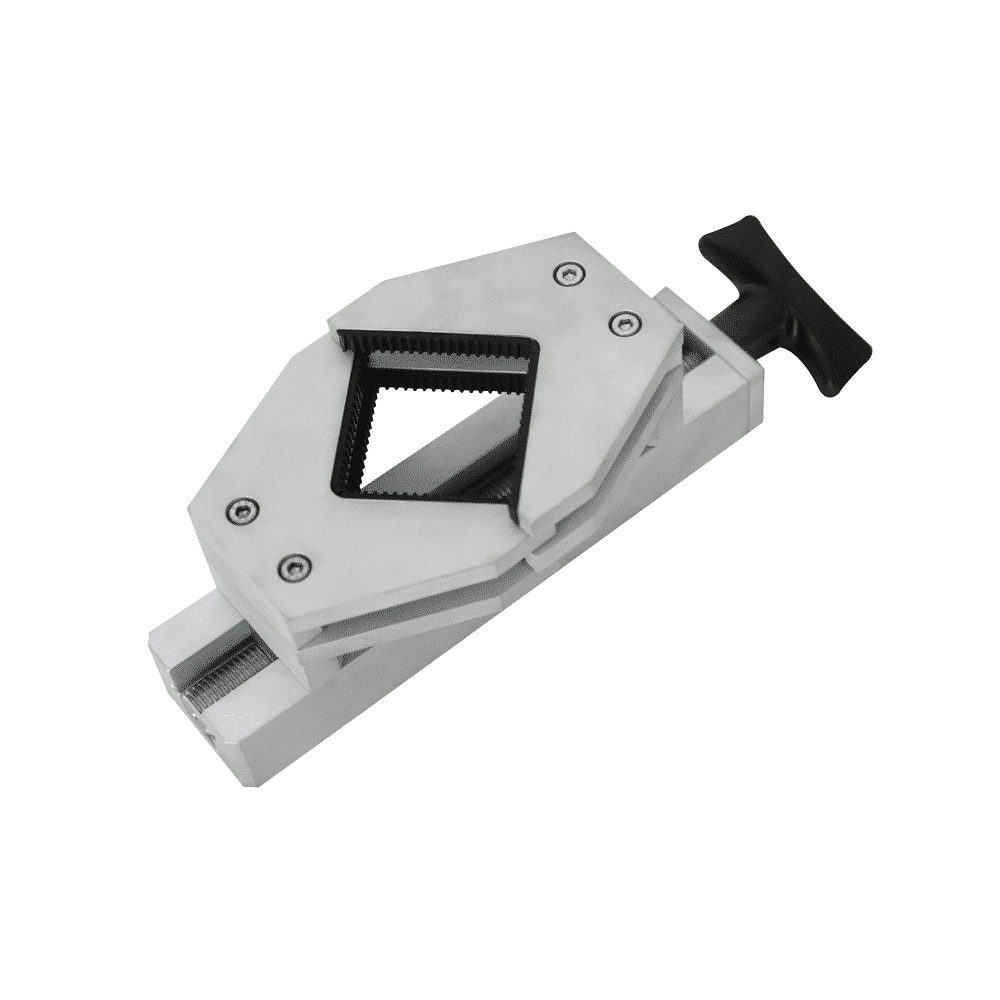

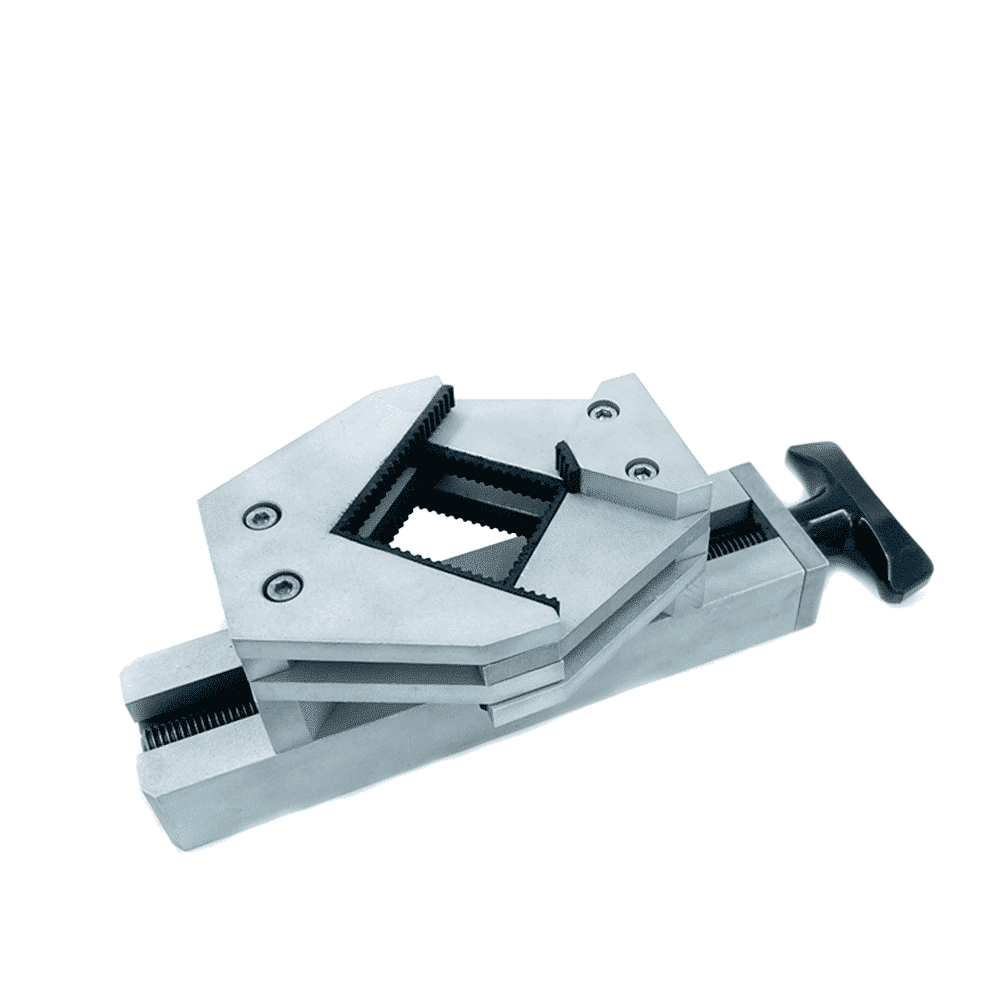

Clamping with V-Jaws

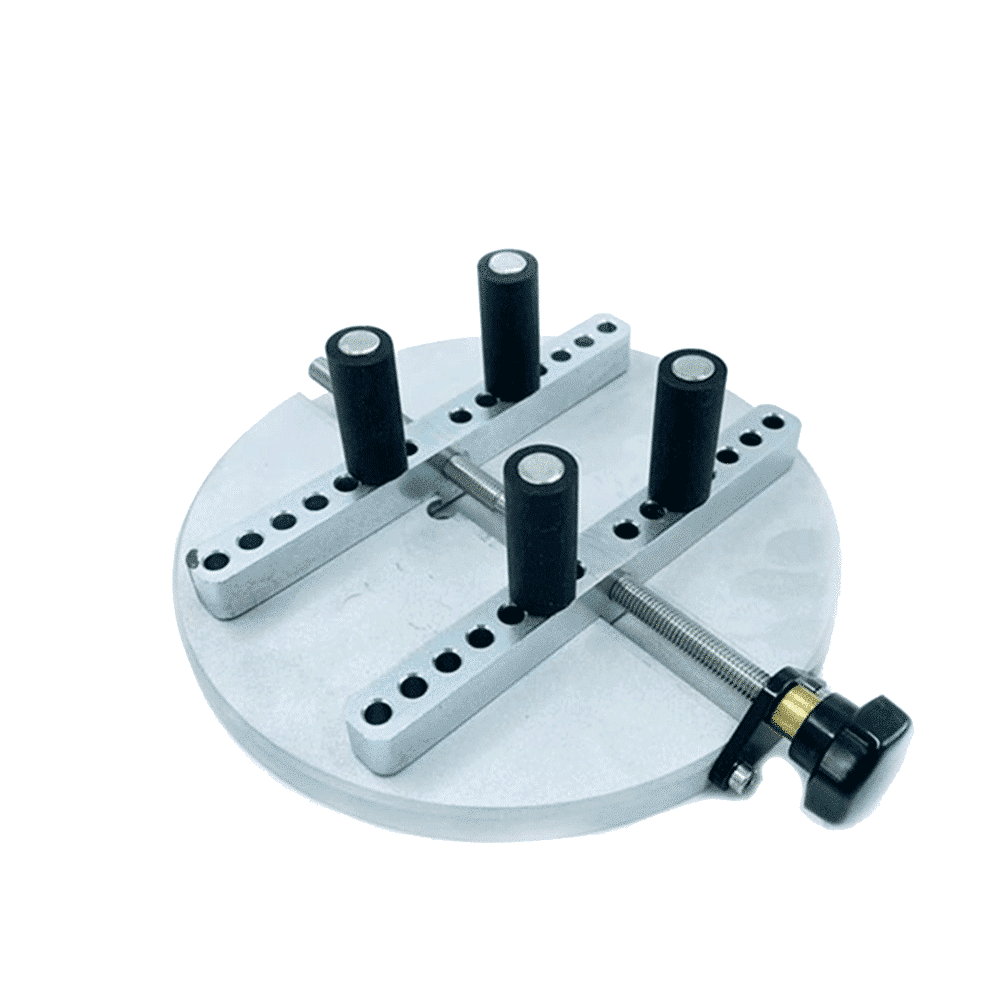

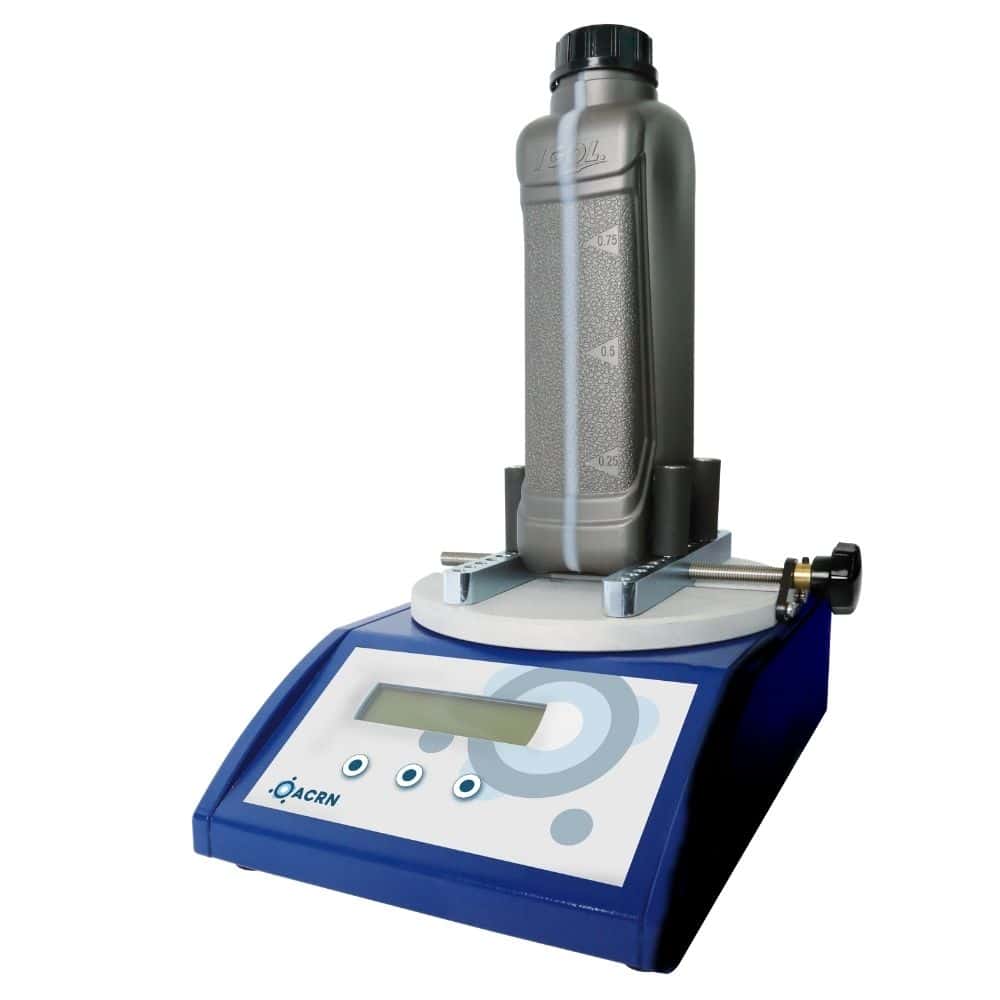

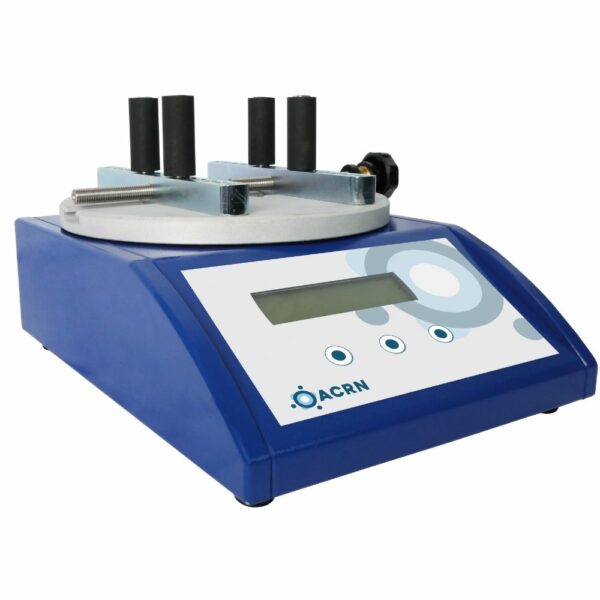

4- Studs Clamping
Can clamping

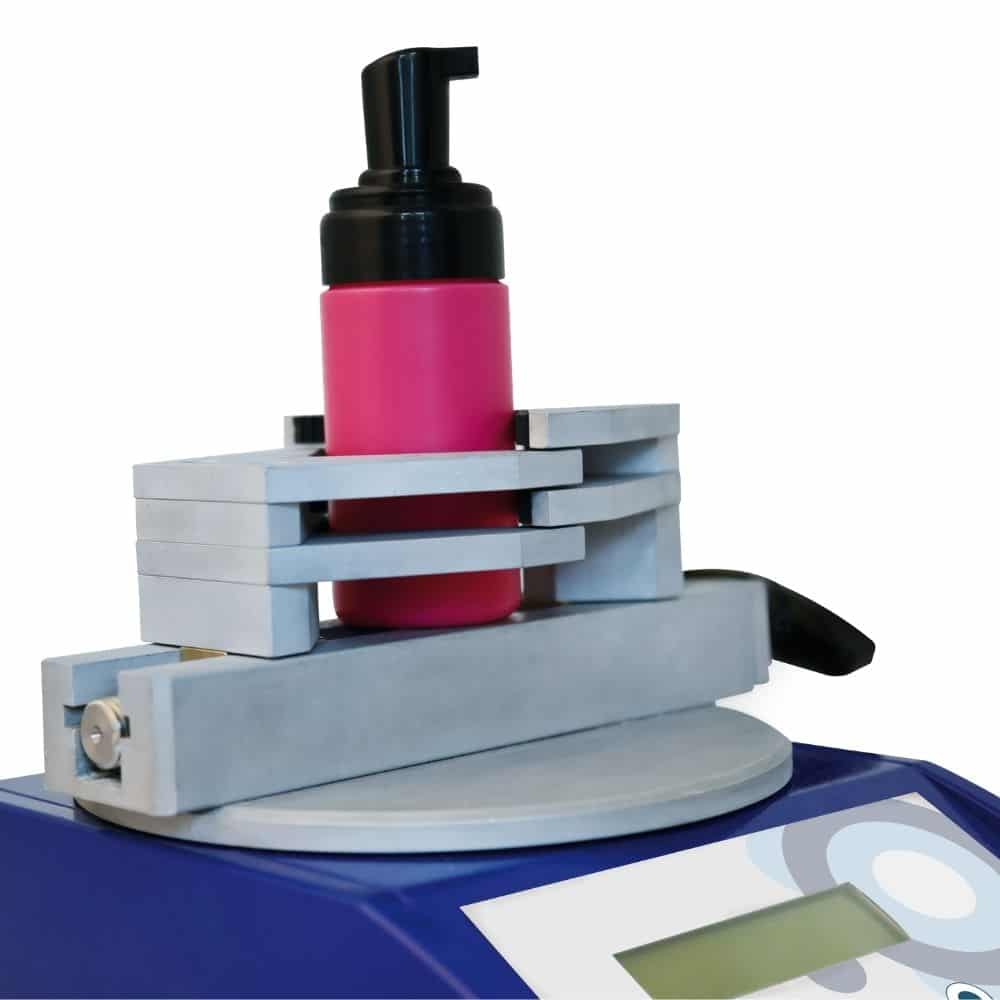

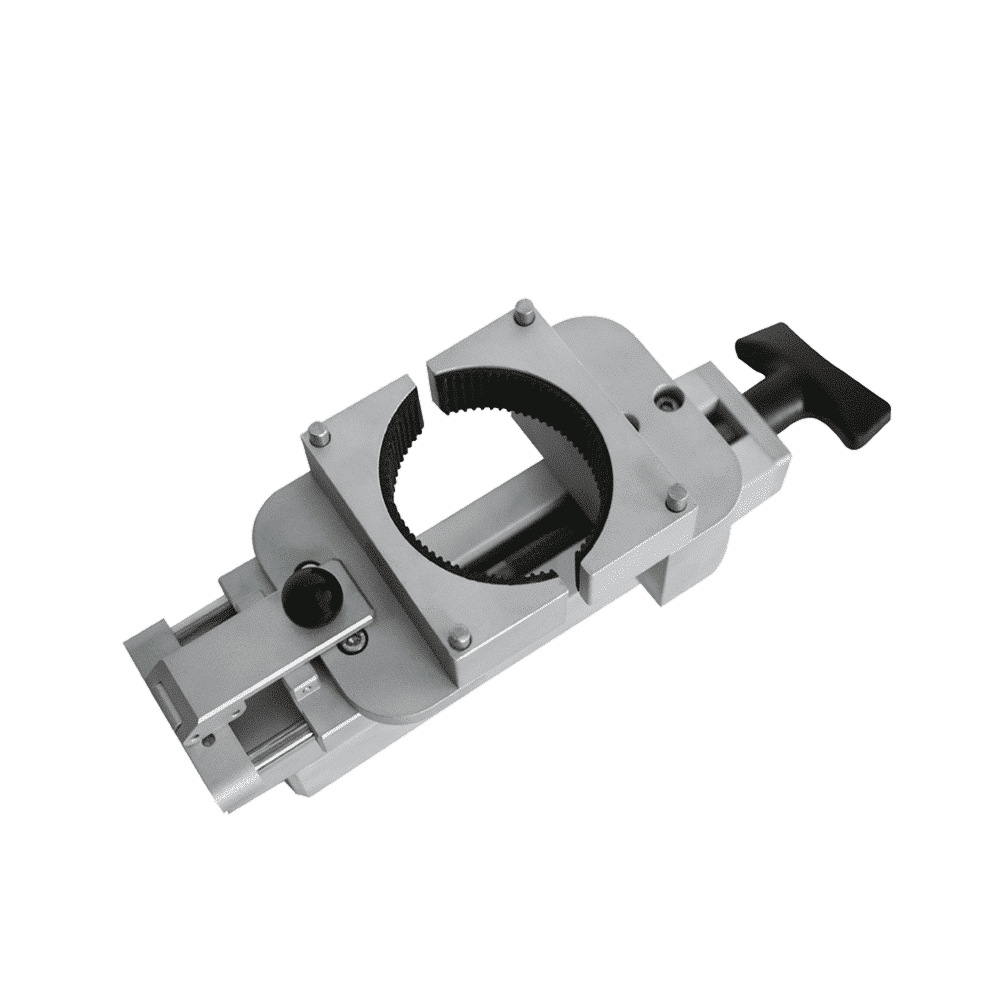

Fast Clamping with interchangeable jaws

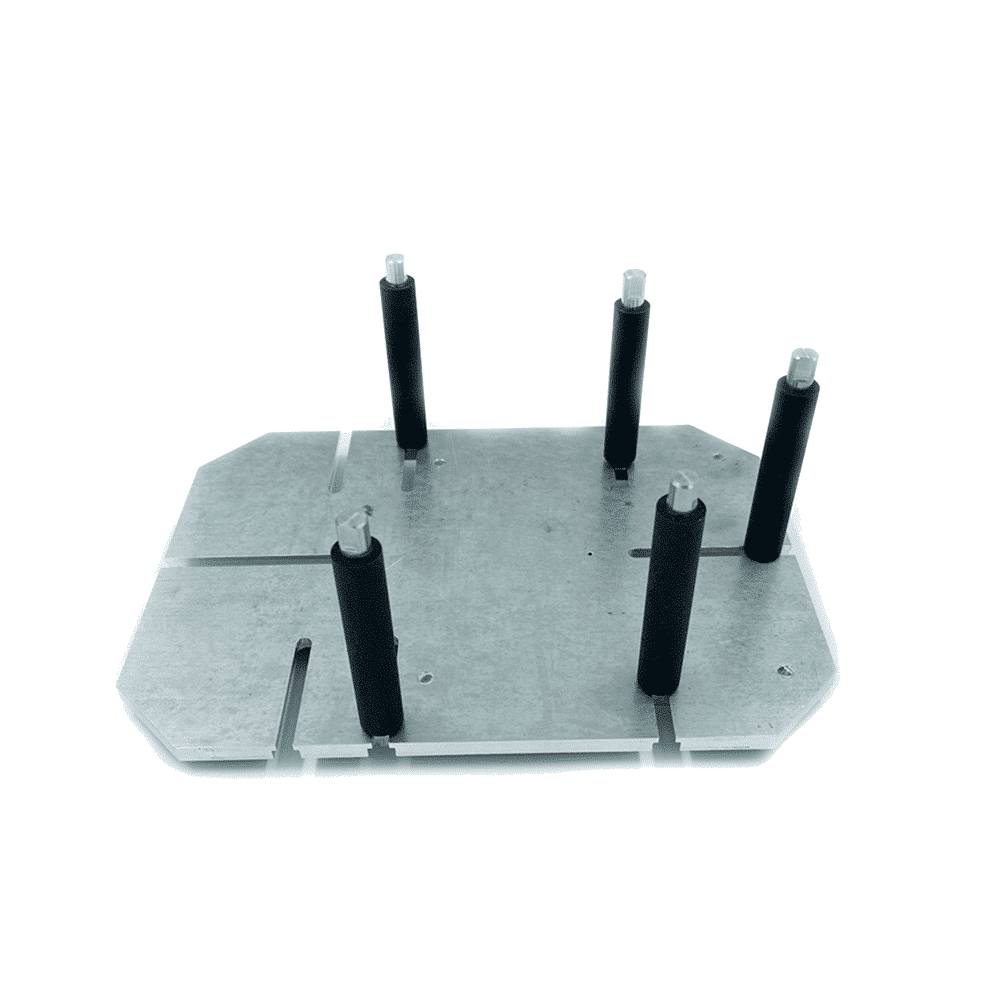

Specific Clamping
Fast clamping with V-jaws
Cap Torque Tester Key Features
| Measurement torque | Max (peak), Max with lower limit, reset |
| Program | 8 sound Pass / Fail programs and bar graph |
| Storage | Storage of 200 measurement values |
| Units | N.m / lbf.inch / N.cm / Kgf.cm |
| Sampling frequency | 5000 Hz |
| Sensor capacity | Self-stabilizing reinforced capacity sensors (Nm): 0.5 / 1/3/5/10/25 |
| Statistics | Printable end of batch statistics |
| Connector | Connector for connecting external sensors |
| Sensor Information | Sensor offset indicator in case of hardware issue |
| Calibration date | Programmable calibration overrun reminder |
| Access limit | Administrator access by configurable password |

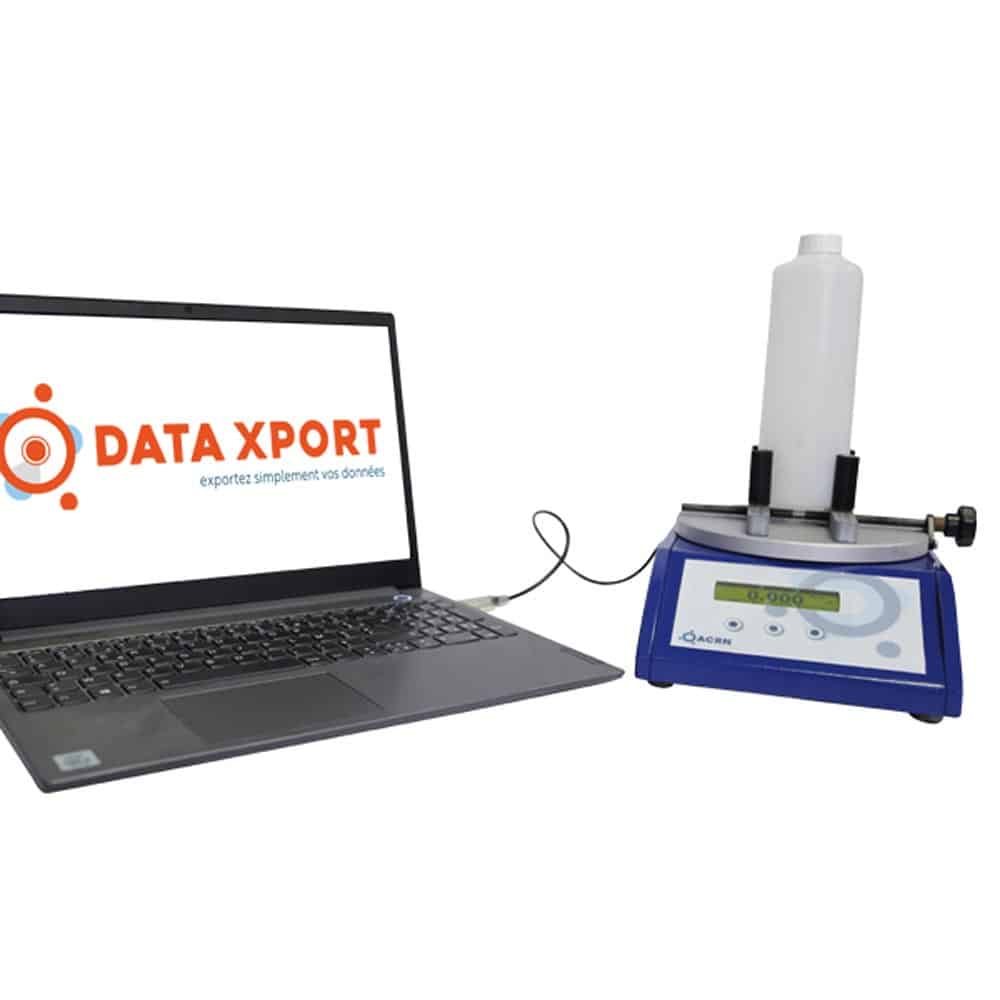

| Data transmission | Optional data export software / AutoOutput possible |
Options
- External torque sensor with different capacity
- Lithium Ion battery; 24 hour autonomy in operation
- IP reinforced protection
- Carrying handle
- SerialToUSB or SerialToSerial connection cable

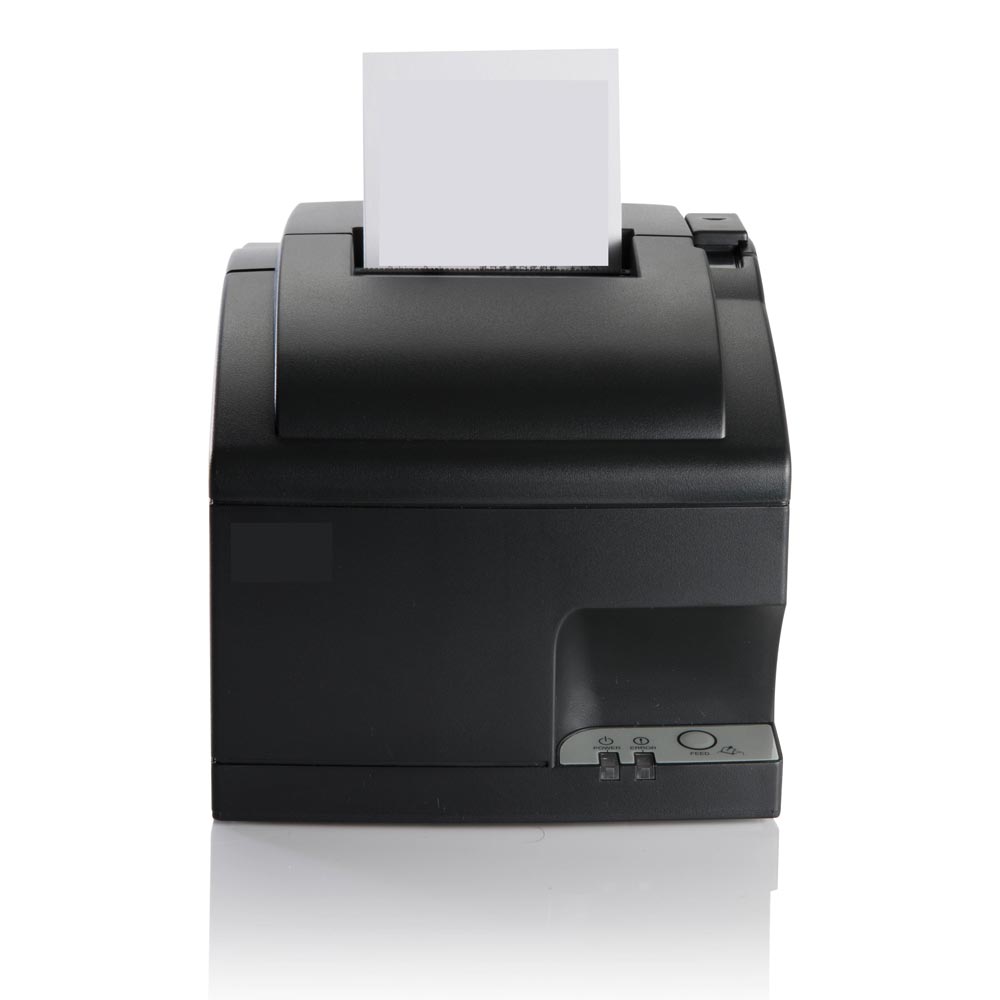

Optional Communication & Printing Solutions
Included
- Mains cable
- A calibration certificate according to ISO6789: 2017 / COFRAC connection of standards
- A notice
- A clamping system
Informations complémentaires
| Accuracy | 0.1% of full scale |
|---|---|
| Display resolution | 0.001 Nm up to 10 Nm; 0.01 Nm beyond |
| Food | 220V 50-60 Hz |
| Weight | 4.3 Kilos |
| Dimension | L180 x P260 x H80mm with 4 stud clamping |
| Environment | from 4 ° C to 37 ° C |
| Permissible sensor overload | 150% f.s with audible alarm beyond 2% overshoot |
| Screen | 80 x 21mm backlit LCD display |
| Languages | English, French, Spanish |
| Guarantee | 2 years |
| Data transmission | RS232 with serial communication protocol, optional Ethernet / IP |
