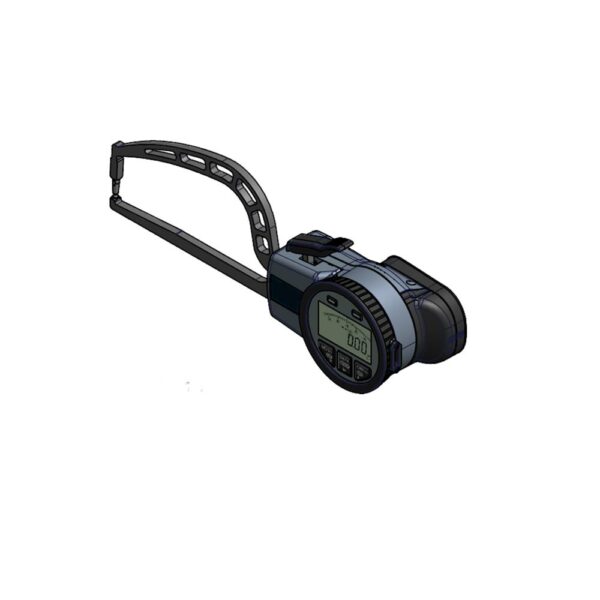

Electronic External Measuring gauge C3R30
Description
The Electronic External Measuring gauge C3R30 is an ACRN measuring instrument used for Dimensional measurement applications.
Technical information
| Opening capacity | Resolution | Measuring force | Weight | Max permissible error | Repeatability error | Operating temperature |
| 0 -30 mm | 0.02 mm | 0.9 – 1.6 N | 410 g | 0.04 mm | 0.02 mm | 10°C – 30 °C |
Technical specifications of the Electronic External Measuring gauge C3R30: Opening capacity: 0 -30 mm; Resolution: 0.02 mm; Measuring force: 0.9 – 1.6 N; Weight: 410 g; Max permissible error: 0.04 mm; Repeatability error: 0.02 mm; Operating temperature: 10°C – 30 °C.
For any quote request or technical information about the Electronic External Measuring gauge C3R30, contact the ACRN team using the form available on this page.
