NAA electronic torquemeter
An economical, robust and simple device
This table torquemeter, which measures the tightening and unscrewing torque of industrial products, is designed for both production environments and quality laboratories.
The strengths of the NAA
Wide variety of clamping
It can accommodate the very wide range of ACRN clamps, the result of 20 years of experience for a perfect gripping of your samples.
The components of our machines ensure a long lifespan and their independence allows a more efficient and less expensive after-sales service. Permanent evolution thanks to the compositions of the machines.
In addition to being easily transportable, it has a very easy-to-use three-key menu offering fundamental features for a torque meter.

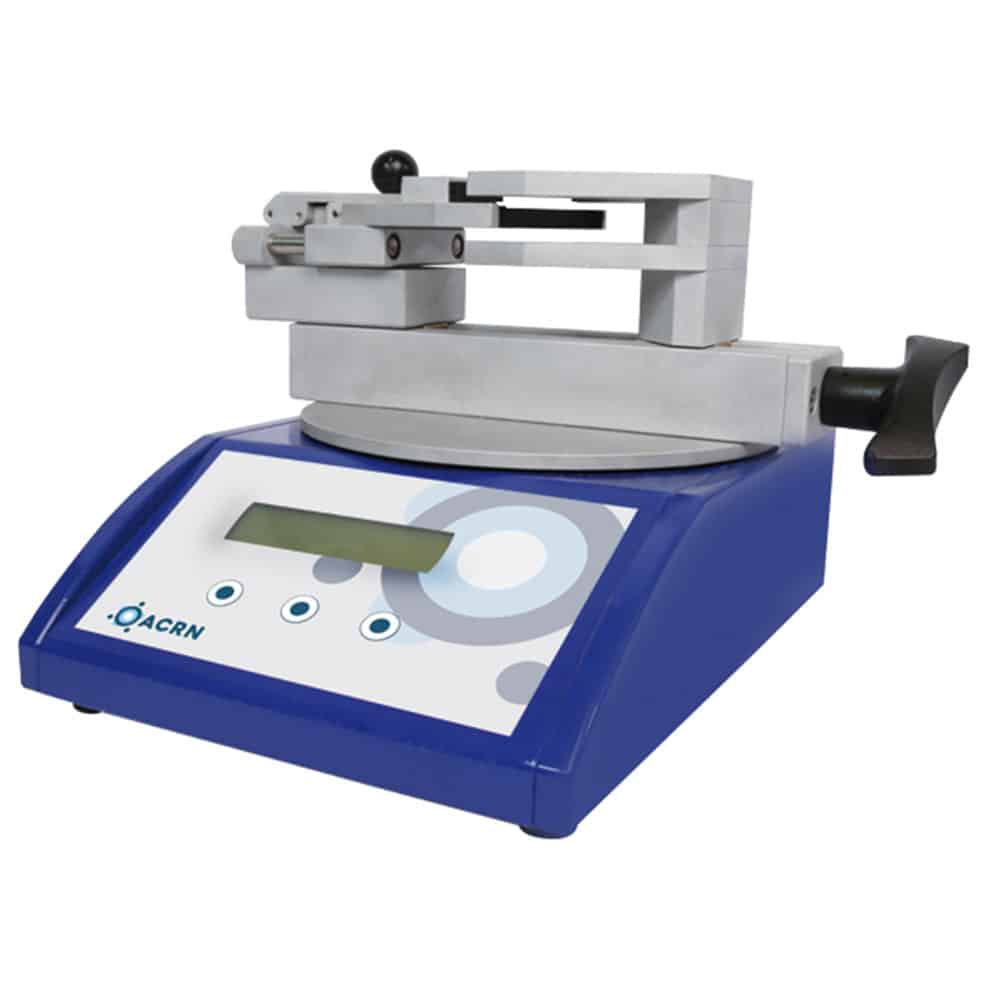

Clamping with V-Jaws

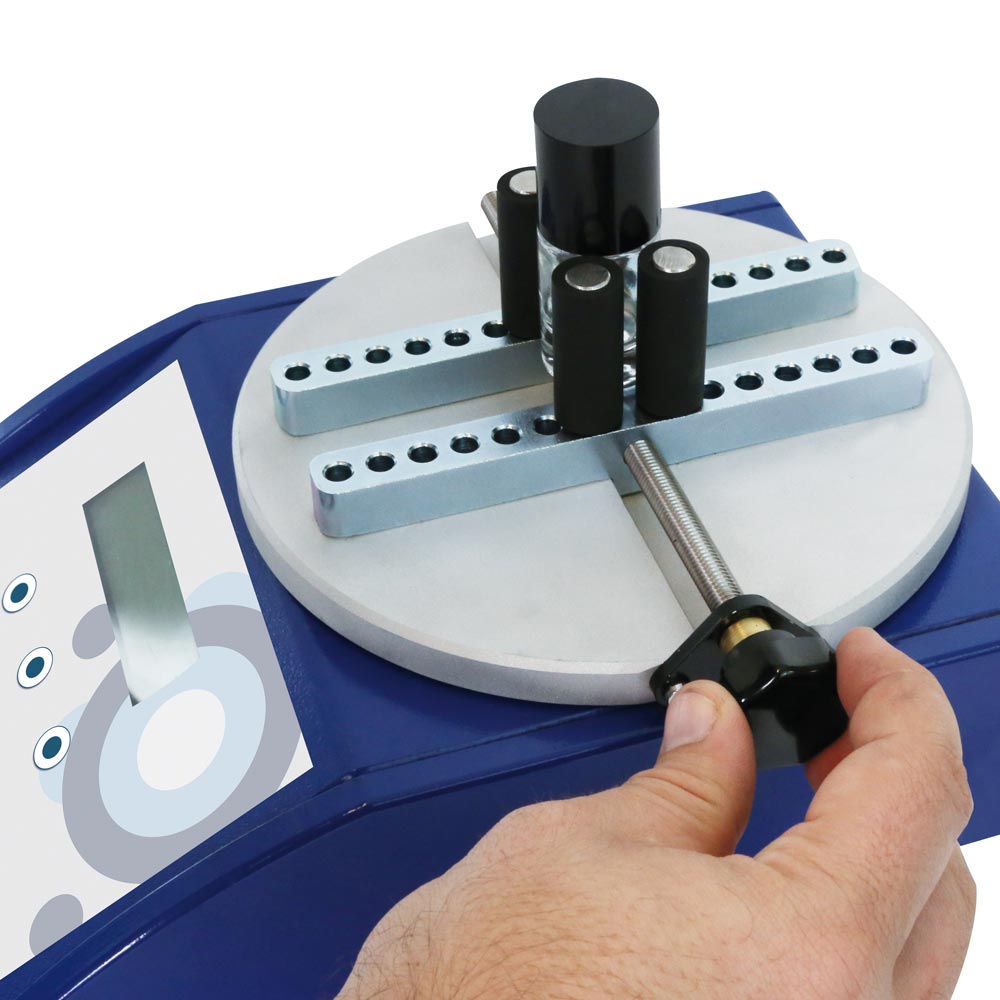

4- Studs Clamping
Fast Clamping with interchangeable jaws

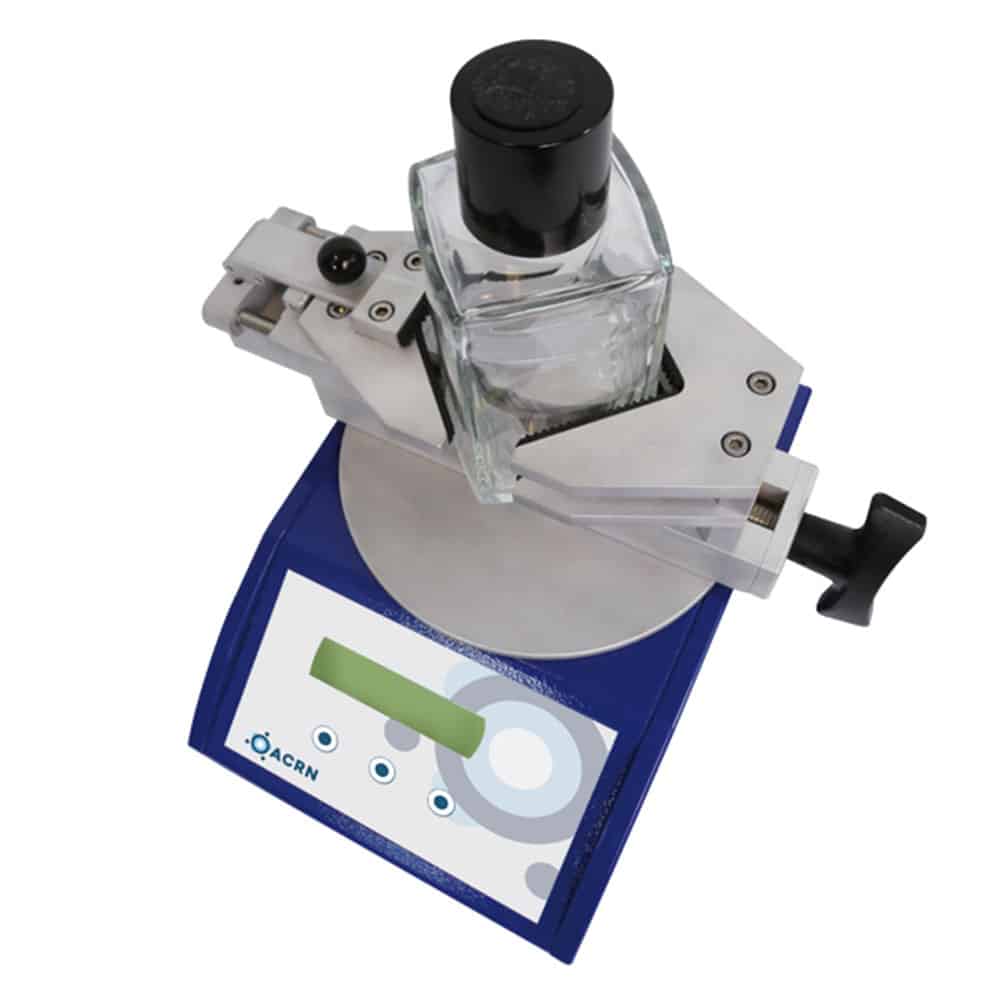

Fast clamping with V-jaws
|Measurement torque||Max (peak), Max with lower limit, reset|
|Sensor capacity||Reinforced self-stabilizing capacity sensors NM: 0.5 / 1/3/5/10/25|
|Units||N.m / lbf.inch / N.cm / Kgf.cm|
|Sampling frequency||5000 Hz|
|Sensor Information||Sensor offset indicator in case of hardware issue|
|Calibration date||Programmable calibration overrun reminder|
|Access limit||Administrator access by configurable password|
|Drums||Lithium Ion: 24h autonomy in operation|
|Protection||IP reinforced protection|
0.001 Nm up to 6 Nm, 0.003 beyond
220V 50-60 Hz
L180 x P260 x H80 mm with 4-stud clamping
from 4 ° C to 37 ° C
|Permissible sensor overload||
150% f.s with audible alarm beyond 2% overshoot
80×21 mm backlit LCD display
English, French, Spanish
