Bottle Cap Torque Tester NBA
A robust and versatile model
Designed for production environments, the NBA Bottle Cap Torque Tester is the choice of many packaging manufacturers for measuring the screw-in and screw-out torque of their products.
Description
Bottle Cap Torque Tester NBA Strengths
The NBA bottle cap torque tester is designed for precise manual measurements and everyday reliability.
Ideal for both production and lab use, it ensures consistent performance while remaining easy to operate and maintain.
Many clamps available
NBA can accommodate the very wide range of ACRN clamps, the fruit of 20 years of experience for perfect gripping of your samples
A communicating device
With several communication and printing solutions, it will integrate perfectly into your production system
ACRN Quality
– The components of our machines ensure a long lifespan and their independance allows a more efficient ans less expensive after sales service
– Permanent evolution thanks to the compositions of the machines
Feature details
| Measurement torque | Peak measurement torque, peak with trigger, Reset |
| Capacity Sensor | Reinforced self-stabilizing capacity sensors (N.m): 0.5/ 1/ 3/ 5/ 10/ 25 0,5/ 1/ 3/5/10/25 |
| Units | N.m / lbf.inch / N.cm / Kgf.cm |
| Sampling rate | 5000 Hz |
| Sensor Information | Sensor offset indicator |
| Calibration date | Programmable x-calibration overrun reminder |
| Access limit | Administrator access by configurable password |
| Data transmission | Wide range of clamps / AutoOut-put possible |
Clamps Examples for Bottle Cap Torque Tester

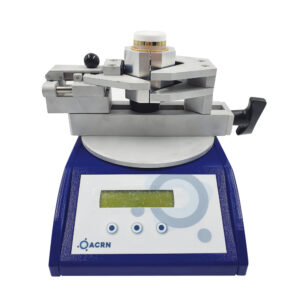

Clamping with V-Jaws

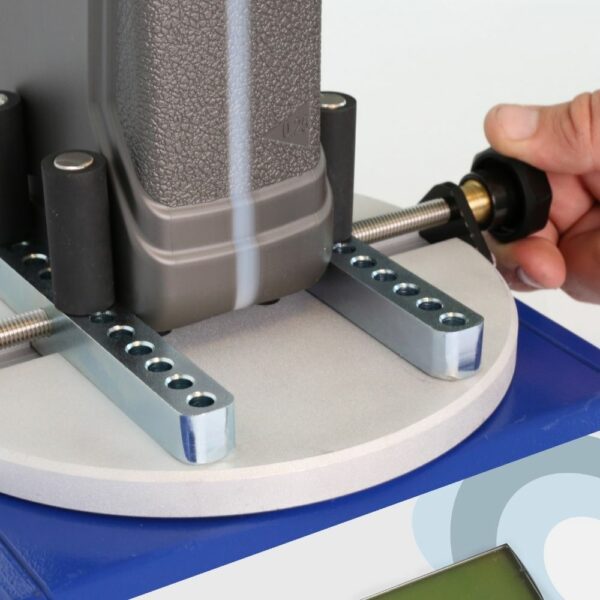

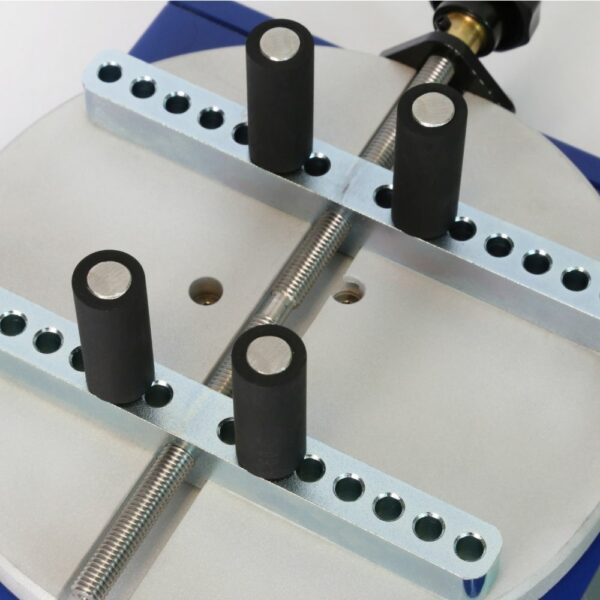

4- Studs Clamping
Can clamping
Fast Clamping with interchangeable jaws
Specific Clamping
Fast clamping with V-jaws
Options
- Battery Lithium Ion : 24H autonomy in operation
- IP reinforced protection
- Transport case
- Operating tool for ribbed plug
Optional Communication & Printing Solutions
Included
- Mains cable
- A calibration certificate according to ISO 6789; COFRAC connection of standards
- A user manual
- A clamping system
Informations complémentaires
| Précision | 0,1% of full scale |
|---|---|
| Resolution de l'affichage | 0,001 N.m until 10 N.m; 0,01 N.m beyond |
| Unités de mesure | KgF.cm, lbf.inch, N.cm, N.m |
| Alimentation | |
| Poids | 4,3 Kg |
| Dimension | L180*P260*H80mm with studs clamp |
| Environnement | From 4° to 37°C |
| Surcharge admissible du capteur | 150% f.s with audible alarm beyond 2% overshoot |
| Affichage | Ecran LCD rétroéclairé 80×21 mm |
| Langues | English, French, Spanish |
| Garantie | 2 years |
| Transmission de données | RS232 with serial commmunication protocol, optional Ethernet |
