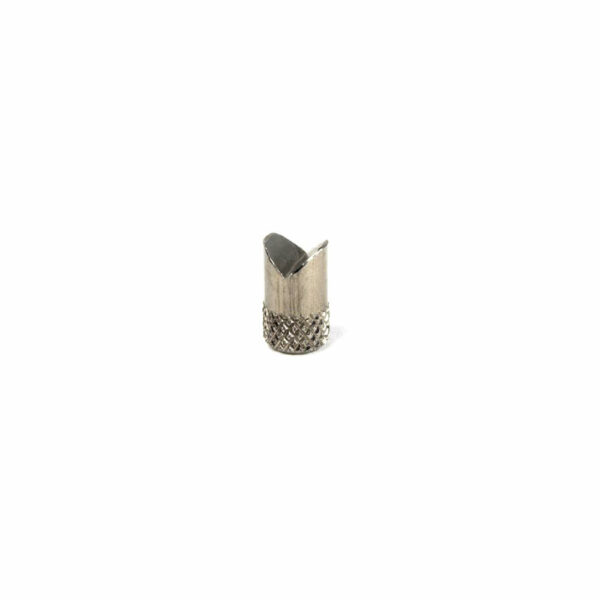

The inverted chisel is designed for compression testing of samples of a curved or rounded shape in cross-section.

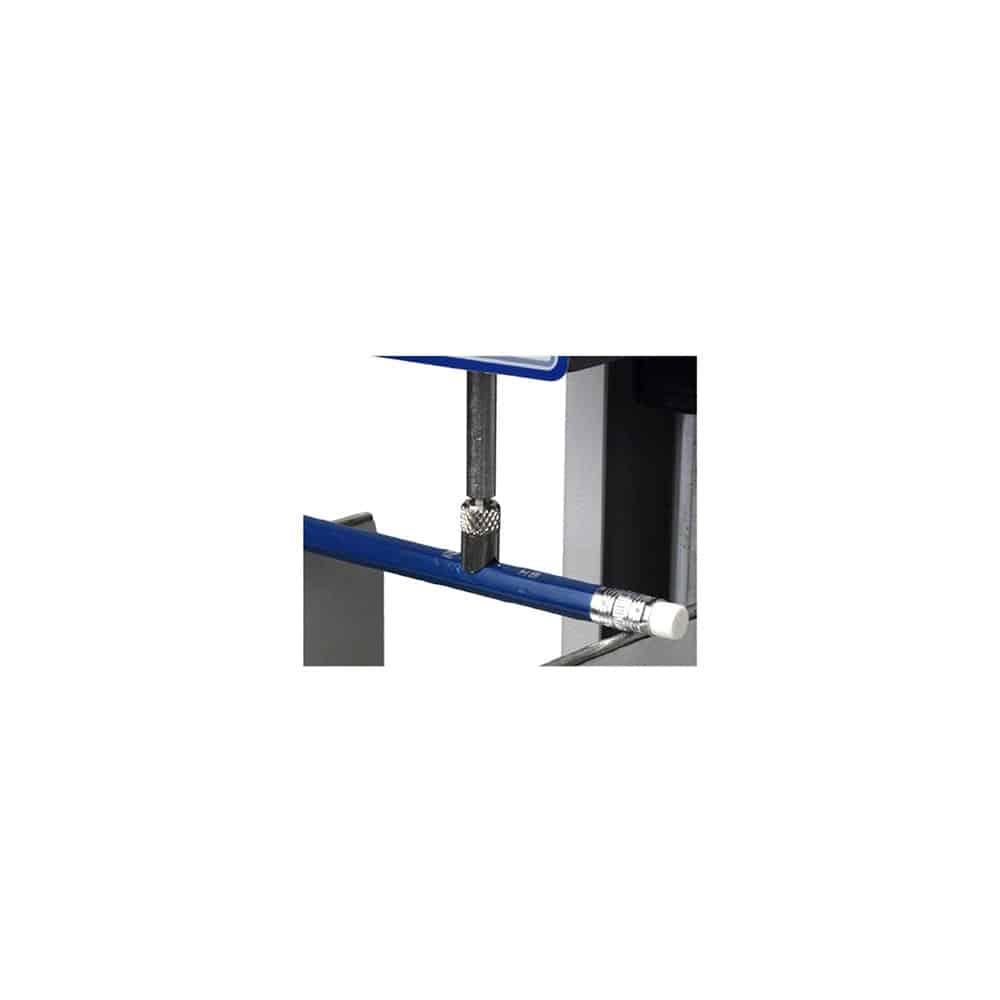

It is used for compression testing of pipes and tubes.

Torque accessories Data sheet


Technical information

Model Model 1 Model 2
Load capacity 500 N, 110 lbf 2.5 kN, 550 lbf
Thread (T) 10-32 UNF-F 5/16 UNC
Diameter 8 mm 12 mm
Lenght 14 mm 21 mm
Tip width 7 mm 10 mm
Weight 3 g 13 g
