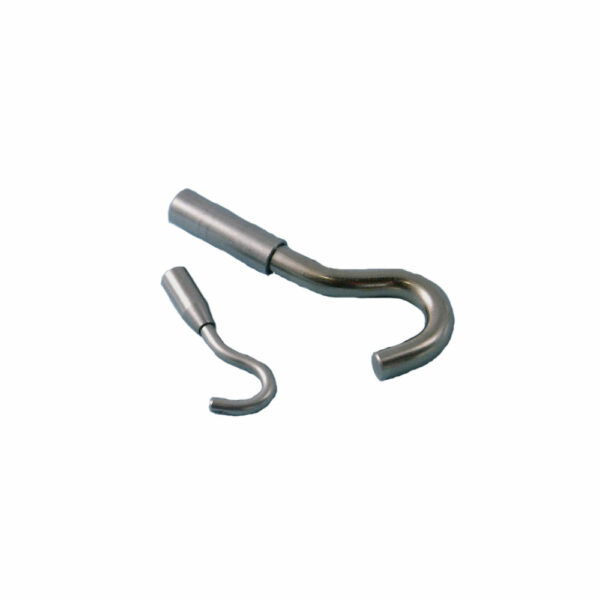

Round hooks
Round hooks are general purpose, suitable for any samples with a loop, eyelet or similar feature.
It is used with a digital force gauge to perform tensile test on tension springs.
It exists several threads for your specific load sensor.
Description
| Load capacity | Thread | Diameter (B) | Openning diameter (C) | Lenght | ||
| 50 N | 5 kgf | 11 lbf | 10 – 32 UNF | 3 mm | 8 mm | 39 mm |
| 50 N | 5 kgf | 11 lbf | M6 | 3 mm | 8 mm | 38 mm |
| 500 N | 50 kgf | 110 lbf | 10 -32 UNF | 6 mm | 14 mm | 66 mm |
| 500 N | 50 kgf | 110 lbf | M6 | 6 mm | 14 mm | 66 mm |
| 2.5 kN | 250 kgf | 550 lbf | 5/16 UNC | 6 mm | 14 mm | 66 mm |
