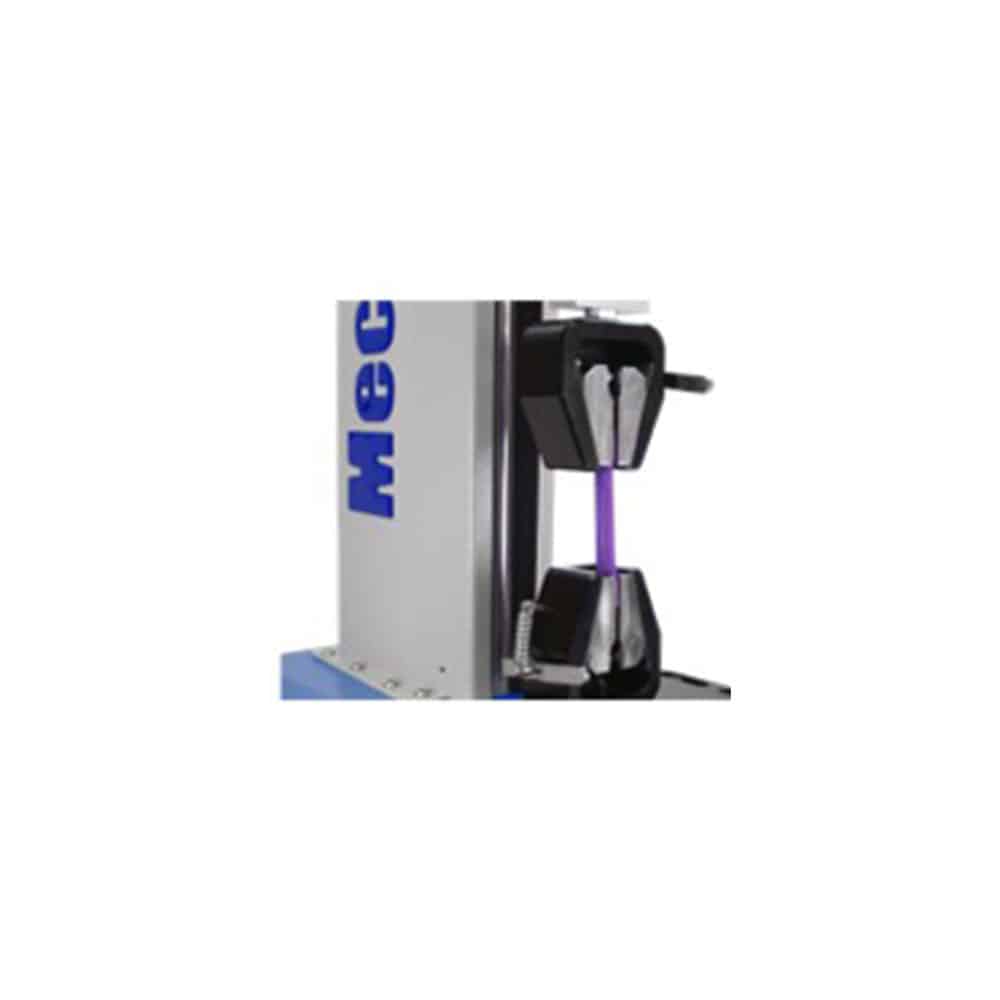

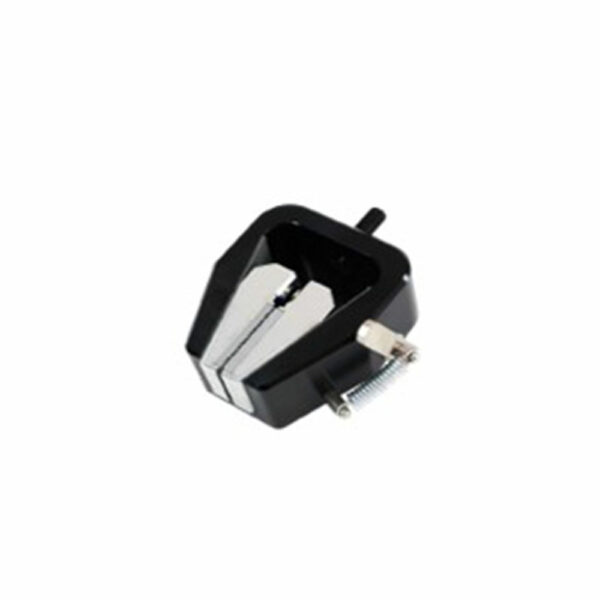

The 5 kN wedge grip is designed for tensile testing of flat and rigid materials including plastics, rubber and lights metals. As load is applied, the wedge action of the jaws increases the grip on sample.

A spring-loaded lever allows the serrated jaws to open and close easily for the fast securing and release of samples.

Torque accessories Data sheet

Description

Technical information

Thread (T1) 5/16 UNC
Load capacity 5 kN, 500 kgf, 1 100 lbf
Weight 550 g
Lenght / Weight 80 mm (inch)
Jaws capacity (B) 8 mm
Jaws width 25 mm
