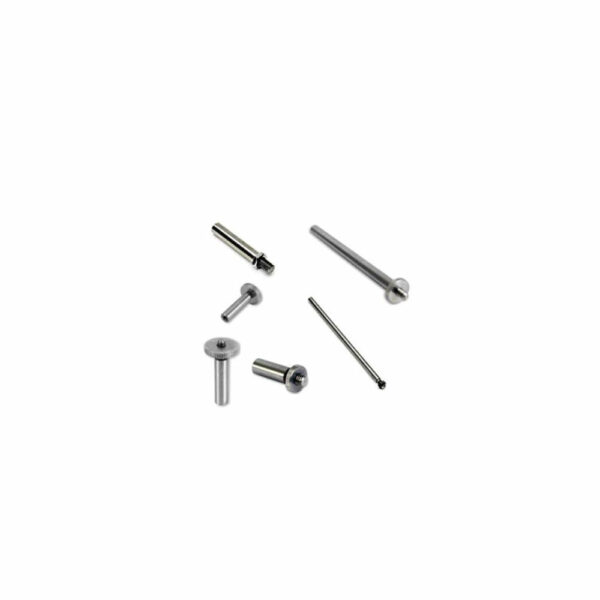

Extension rods are used to add length to a fixture often to prevent the specimen making contact with the gauge/loadcell e.g., when compressing a plunger into a cylinder.

They are also used to connect a force gauge or loadcell to a grip of fixture e.g a wedge grip or test hook.

Torque accessories Data sheet

Description

Technical information

Model Max load Tread T1 – T2 Lenght A-C (mm) Diam B (mm)
1 500 N 10-32 F / 10-32 M 30 – 11 8
2 500 N 10-32 F / 10-32 M 30 – 10 6
3 500 N 10-32 F / 10-32 M 130 – 10 6
4 500 N 10-32 F – M6 M 30 – 12 8
5 500 N M6 F – M6 M 25 – 12 8
6 500 N M6 F – M6 M 130 – 12 8
7 2.5 kN 5/16 F – 5/16 M 30 – 14 12
8 2.5 kN 5/16 F – 5/16 M 130 – 10 12
