Clevis fastener

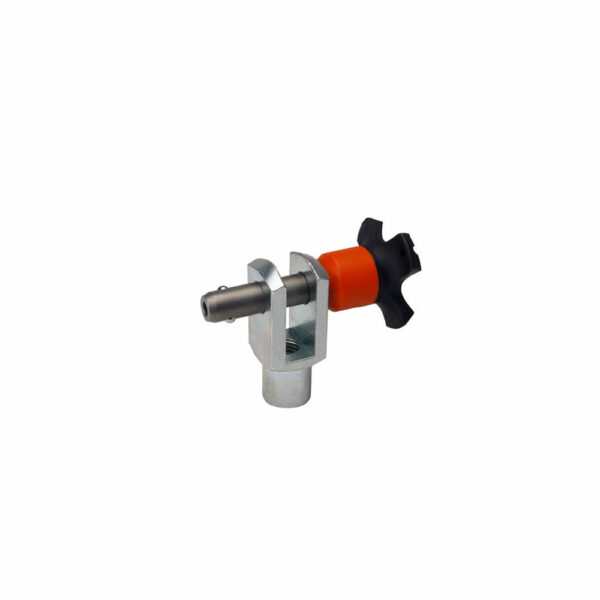

Clevis grips feature a removable pin which can be inserted into the U-shaped clevis.

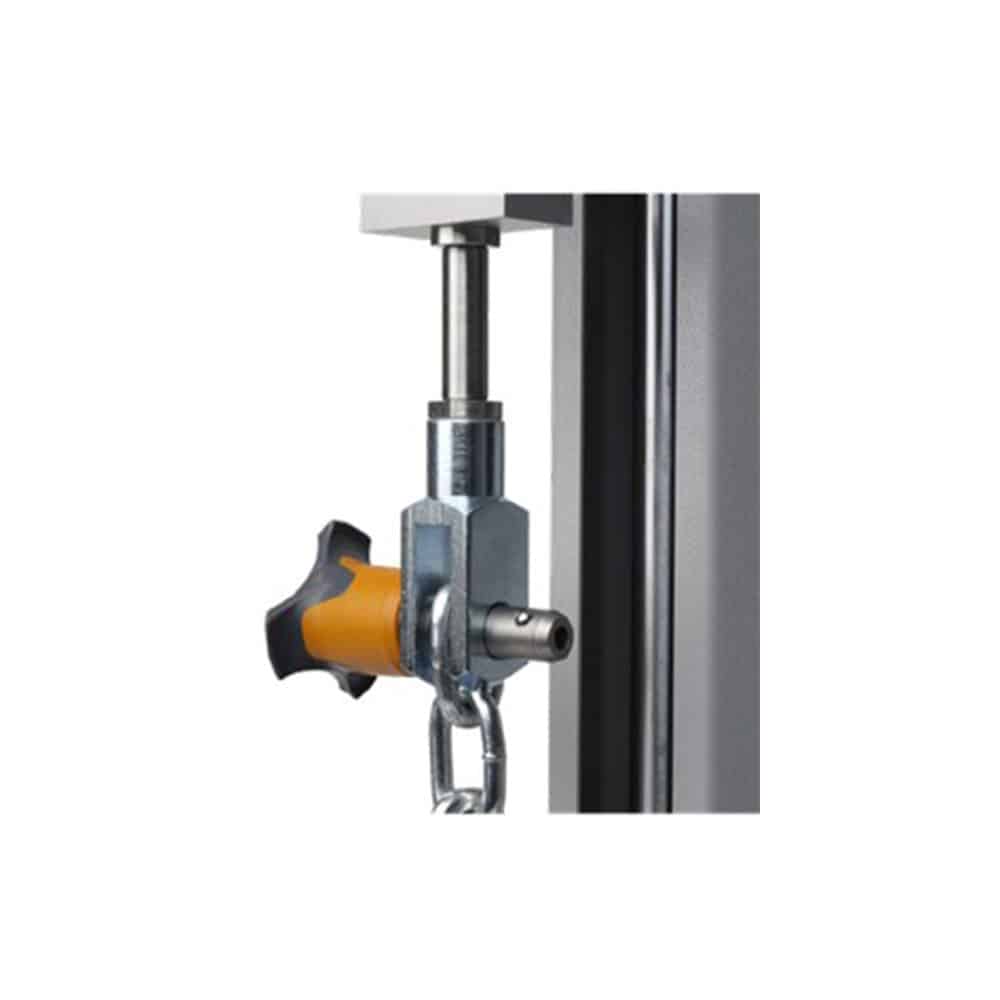

The specimen is usually pre-conditioned with a hole or eyelet through which the clevis pin is passed to secure it in place.
Models 3 and 4 have a clevis pin with quick-release detents to speed up inserting and removing the pin..
Description
Technical information
| Model | Load capacity | Thread (T) | Diameter (B) | Pin diameter (D) | Lenght | Weight | ||
| Model 1 | 500 N | 50 kgf | 110 lbf | 10-32 UNF | 5 mm | 5 mm | 26 mm | 13 g |
| Model 2 | 500 N | 50 kgf | 110 lbf | M6 | 6 mm | 6 mm | 31 mm | 13 g |
| Model 3 | 2.5 kN | 250 kgf | 550 lbf | M8 | 8 mm | 8 mm | 42 mm | 90 g |
| Model 4 | 5 kN | 500 kgf | 1100 lbf | M12 | 12 mm | 12 mm | 62 mm | 250 g |
